描述

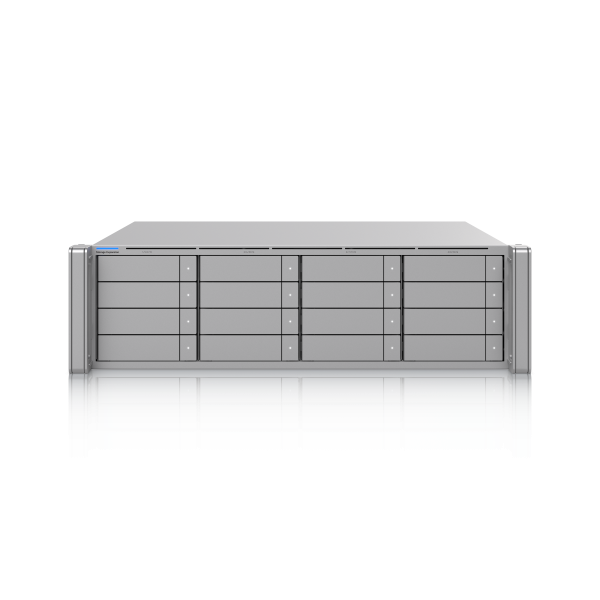

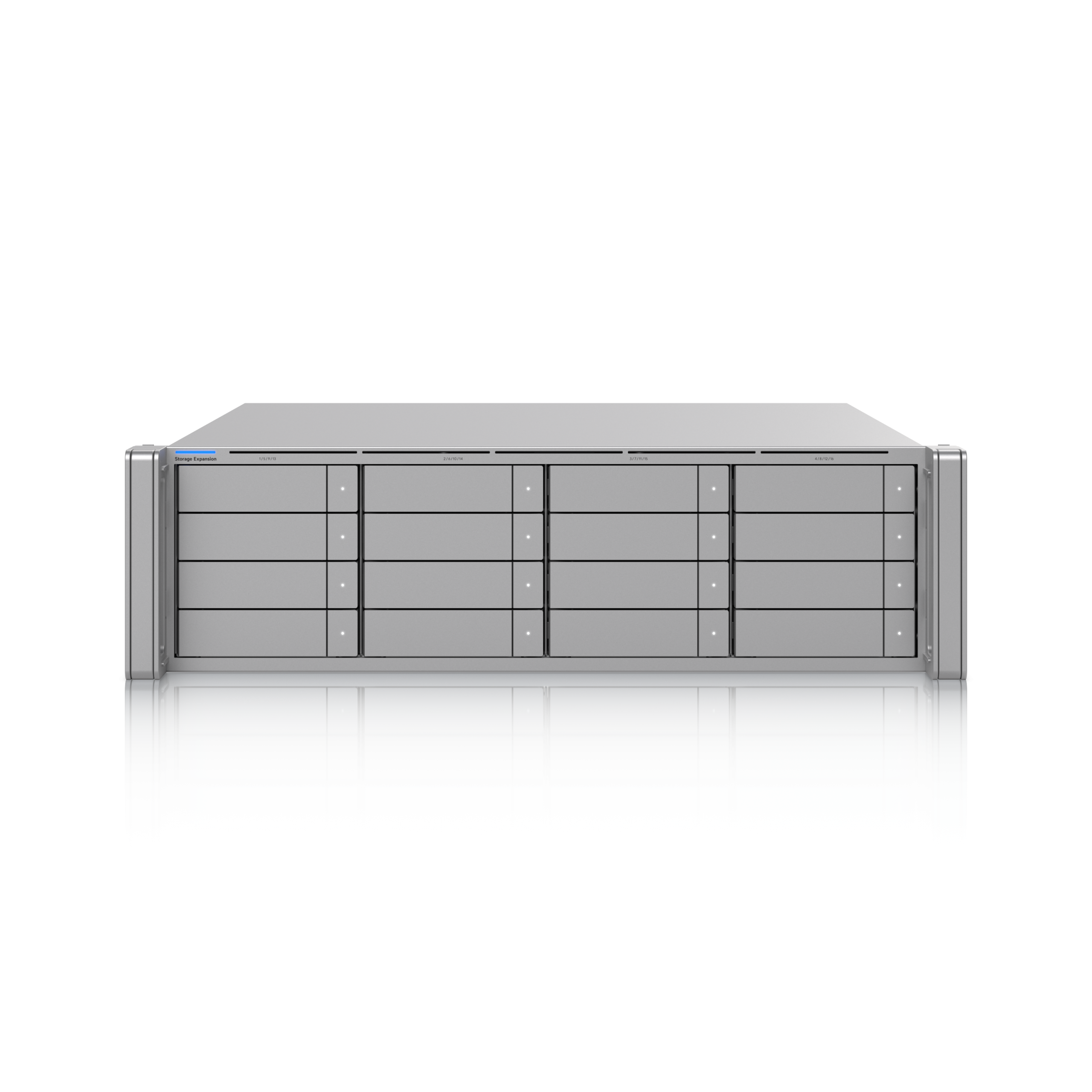

UACC-ESE-16
Enterprise Storage Expansion
UACC-ESE-16 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Expansion unit for ENAS & ENVR-Core with (16) 2.5/3.5″ drive bays, providing seamless HDD storage expansion.
規格
Overview
| Dimensions | 481.4 x 480 x 132 mm; (19 x 18.9 x 5.2") |
|---|---|
| Storage Capacity | (16) 2.5"/3.5" drive bays |
| Expansion Port | (1) SFF-8644 (24G) |
| Form Factor | Rack mount (3U) |
Hardware
| Hard Drive Capacity | (16) 2.5/3.5" HDD / SSD support |
|---|---|
| Max. Power Budget for Drives | 500W |
| Max. Power Consumption | 550W |
| Power Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Management | Master console |
| Weight | 15.5 kg (34.2 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | The rails support 600 mm (23.6") four-post racks with square holes (9.5 x 9.5 mm) ; Posts depths ranging from 600–1066 mm (23.6–42") |
| Faceplate | 3U Bezel Lite (Optional) |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, IC |
