描述

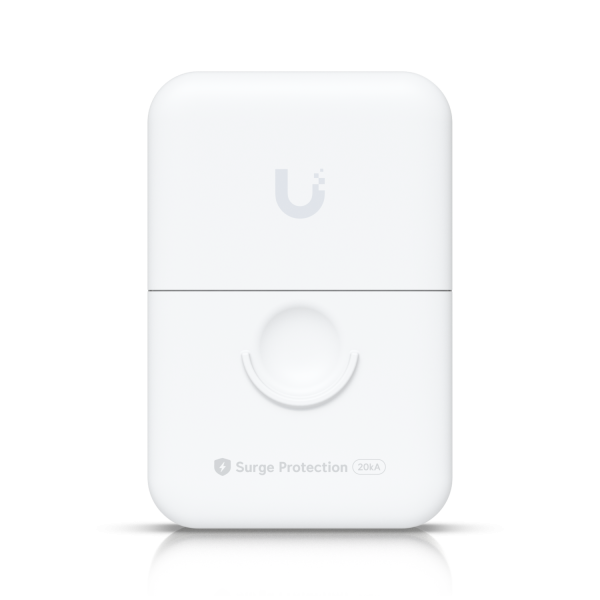

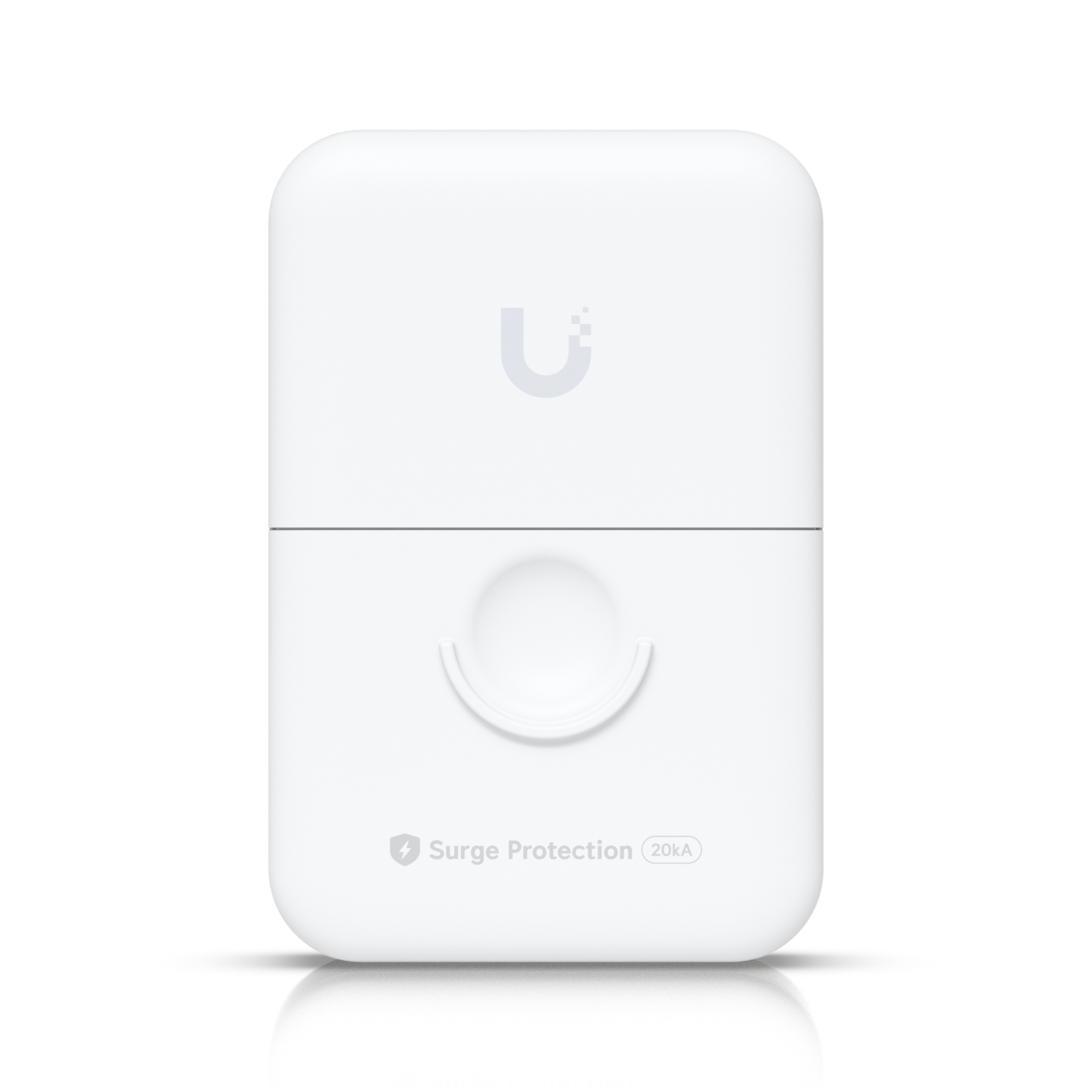

UACC-ETH-SP-Pro
Ethernet Surge Protection Outdoor (20kA)
UACC-ETH-SP-Pro 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
ESD protection for outdoor high-speed networks.
功能重點
- Protects outdoor Ethernet devices, up to 20kA discharge current.
- (2) Passive, surge-protected RJ45 connections
- Quick and easy installation
- Compatible with 10 GbE networks
規格
Mechanical
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3") |
|---|---|
| Weight | 95 g (3.35 oz) |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX5 |
Hardware
| Networking Interface | (2) RJ45 female connectors |
|---|---|
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -30 to 65° C (-22 to 149° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 Standard |
