描述

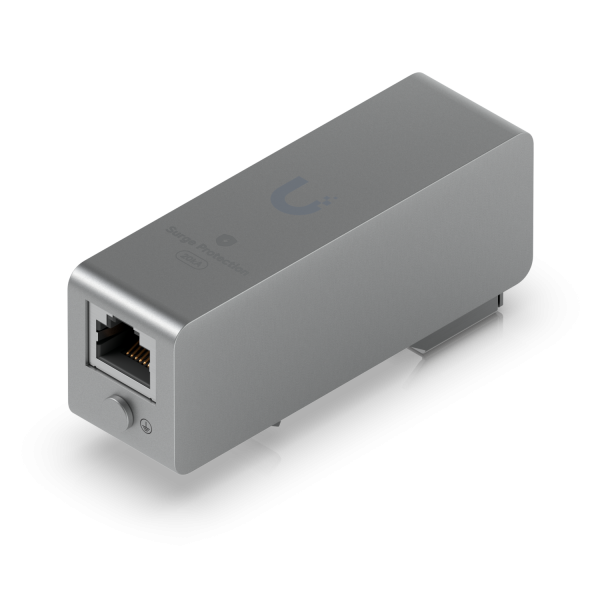

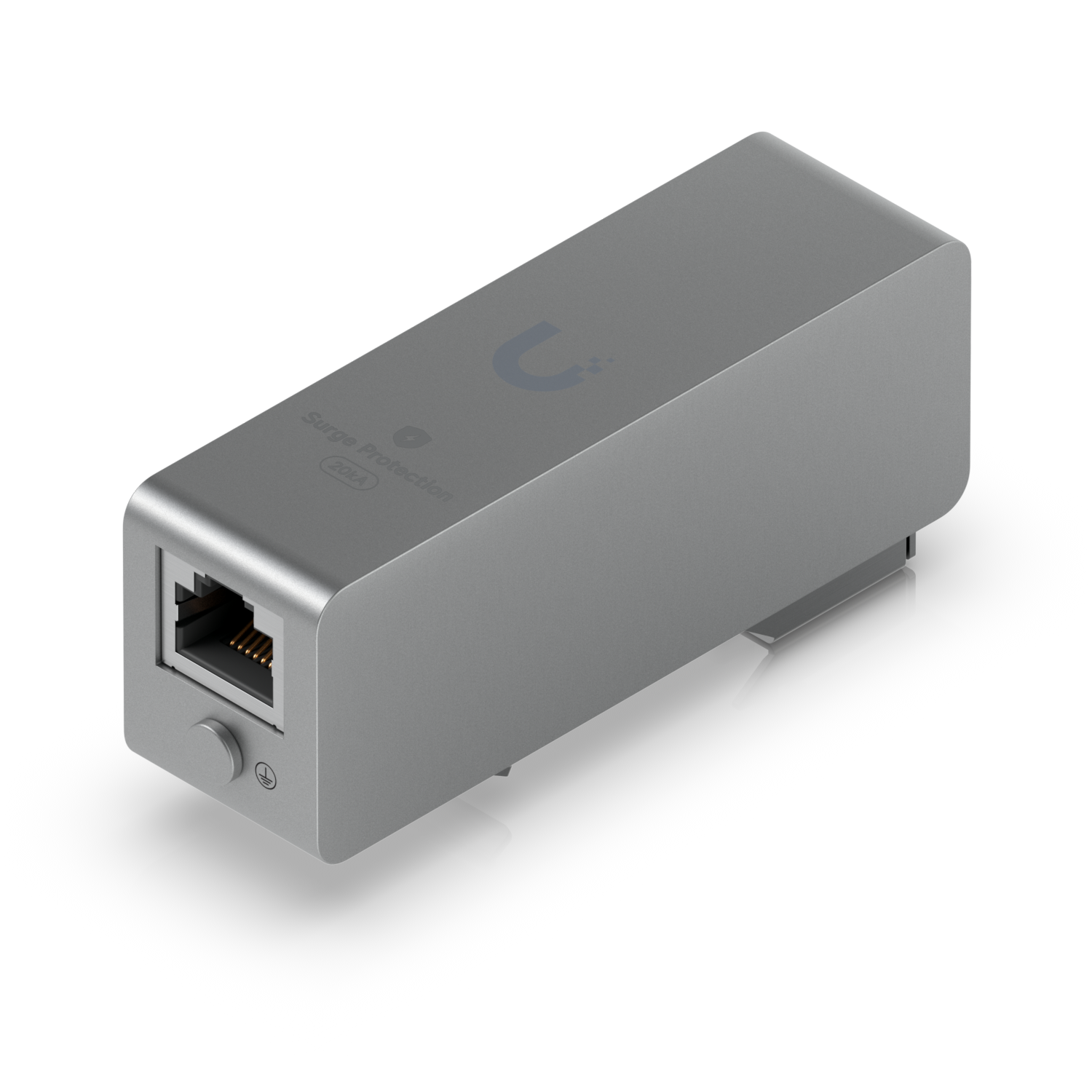

UACC-ETH-SP-DIN
Ethernet Surge Protection (Single-Port)
UACC-ETH-SP-DIN 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Bidirectional protection for up to 10 GbE, PoE+++, and 20kA surge discharge for indoor installation.
功能重點
- Wall/DIN rail mount
- Multiple grounding points
規格
Mechanical
| Dimensions | 89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5") |
|---|---|
| Weight | 74 g (2.6 oz) |
| Enclosure Material | Polycarbonate, SGCC steel |
Hardware
| Networking Interface | (2) RJ45 female connectors |
|---|---|
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -40° to +80° C (-40° to 176° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
