描述
UC-EV-Station-Lite

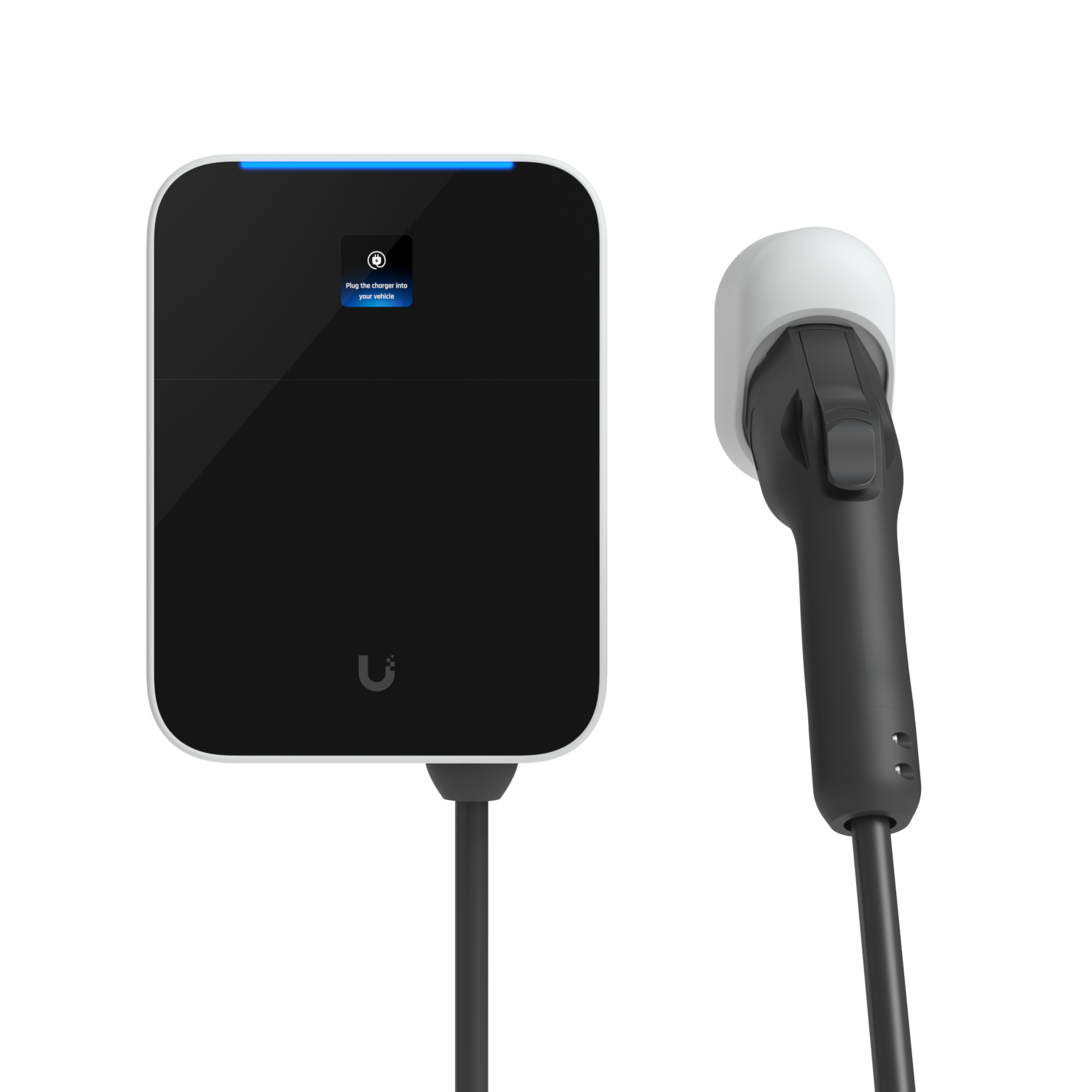

EV Station Lite
UC-EV-Station-Lite 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Weatherproof, 11 kW Level 2 electric vehicle charging station with flexible access control designed for scalable deployment.
Note. UniFi Access must be running on the same console as UniFi Connect for NFC card registration.
Requires UniFi OS 4.0.6 and later for UniFi Identity Enterprise.
功能重點
- 11 kW max charging output with SAE J1772 charging plug
- 1.7" LCM display
- Access control with UniFi Identity mobile app and NFC card*
- Connected with UniFi WiFi Auto-Link or Ethernet
- UL certified
- Hardwire installation
- Wallmount kit included
- *UniFi Access must be running on the same console as UniFi Connect with a Control Hub and Access Reader adopted for NFC card registration. Requires UniFi OS 4.0.6 and later for UniFi Identity Enterprise.
規格
Overview
| Dimensions | 254.7 x 192.7 x 85 mm (10 x 7.6 x 3.3”) |
|---|---|
| Mounting | Wall Mount or Stand |
| Power Input | 200–240V ~ 50A, 50/60Hz, 1φ |
| Power Output | 200–240V ~ 50A, 50/60Hz, 1φ |
| Weatherproofing | Type 3R |
Mechanical
| Weight | 5.9 kg (13 lb) |
|---|---|
| Enclosure Material | Polycarbonate |
| Charging Cable Length | 7 m (23 ft) |
Hardware
| Size | 1.7" status display |
|---|---|
| Processor | Dual-core Arm® Cortex®-A53, 1 GHz |
| Connectivity | (1) GbE RJ45 port; (1) USB-C port; Bluetooth® 5.0; WiFi |
| Max. load | 70A: 50A; 60A: 48A; 50A: 40A; 40A: 32A; 30A: 24A; 20A: 16A |
| Plug-in | 70A: No; 60A: No; 50A: Yes; 40A: Yes; 30A: Yes; 20A: Yes |
| Hardwired | 70A: Yes; 60A: Yes; 50A: Yes; 40A: Yes; 30A: Yes; 20A: Yes |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Ambient Operating Temperature | -40 to 50° C (-40 to 122° F) |
| Certifications | FCC, IC, UL |
Software
| Management Application | UniFi Connect: Version 3.14.4 and later.; UniFi Connect iOS™ and Android™: Version 2.18 and later. |
|---|
