UC-EV-Station-Pro

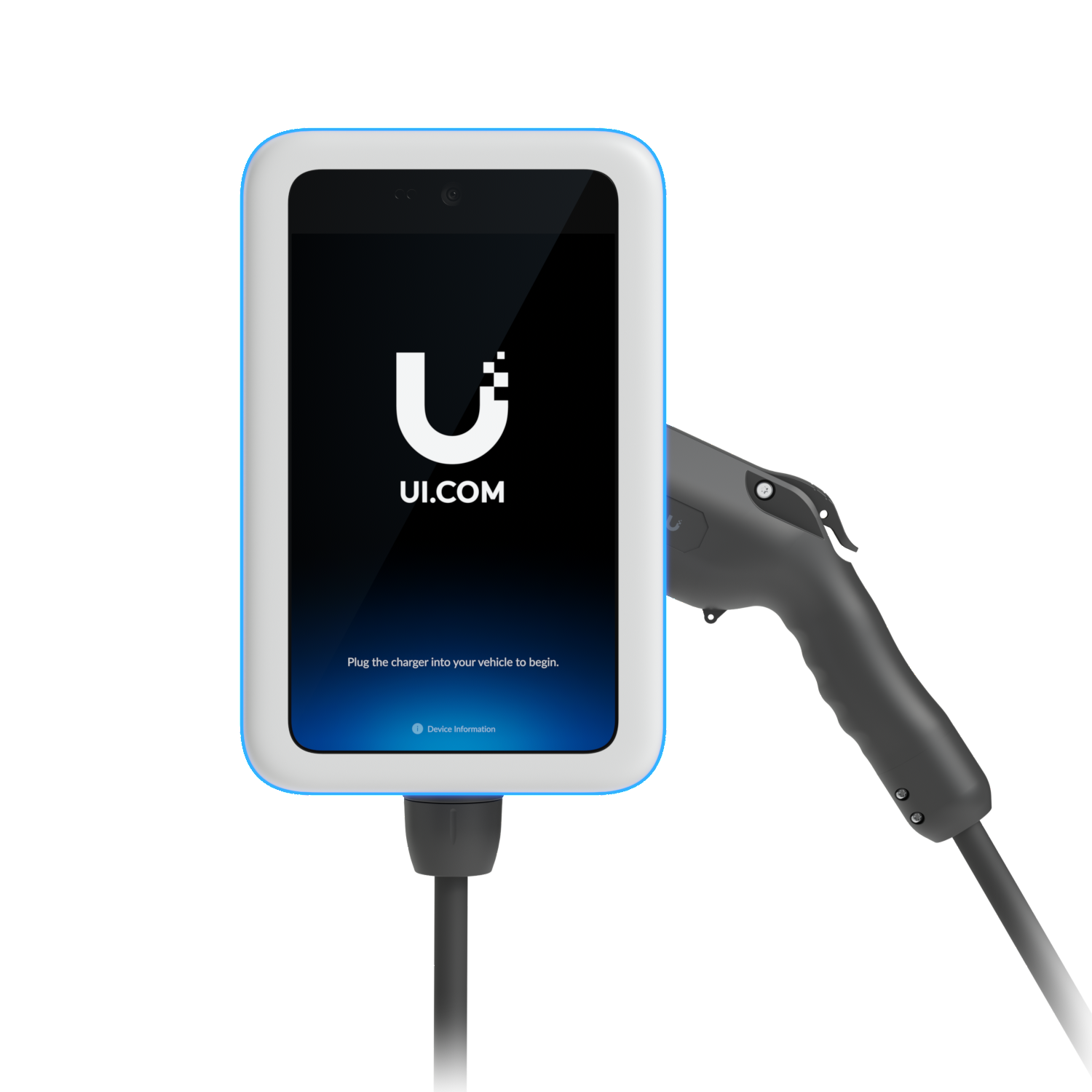

EV Station Pro
UC-EV-Station-Pro 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Weatherproof, 11 kW Level 2 electric vehicle charging station with an ultra-bright 10.1″ touch display, flexible access control, and payment terminal accessory support.
Note. UniFi Access must be running on the same console as UniFi Connect with a Control Hub and Access Reader adopted for NFC card registration.
Payment Terminal and UniFi WiFi Auto-Link supported with EV Station Pro version 1.2.25 and later. Third-party WiFi configuration is not supported.
功能重點
- Ultra-bright 10.1" touch display
- 11 kW max charging output with SAE J1772 charging plug
- Media content playback for digital signage applications
- Access control with QR code scanning, UniFi Identity mobile app, and NFC card*
- Payment terminal accessory support for payment processing**
- Hardwire or use one of the included NEMA 14-50 and 6-50 cables for plug-in installation
- Connected with UniFi WiFi Auto-Link** or Ethernet
- UL certified
- Includes wall mount
- *UniFi Access must be running on the same console as UniFi Connect with a Control Hub and Access Reader adopted for NFC card registration.**Payment Terminal and UniFi WiFi Auto-Link supported with EV Station Pro version 1.2.25 and later. Third-party WiFi configuration is not supported.
規格
Overview
| Dimensions | 280 x 178 x 143 mm (11 x 7 x 5.6”) |
|---|---|
| Mounting | Wall Mount or Stand |
| Power Input | 200–240V ~ 50A, 50/60Hz, 1φ |
| Power Output | 200–240V ~ 50A, 50/60Hz, 1φ |
| Weatherproofing | Type 3R |
Mechanical
| Weight | With wall mount/charging gun/power cord: 8.1 kg (17.9 lb) |
|---|---|
| Enclosure Material | Front modules: Polycarbonate; Middle module: Aluminum, Polycarbonate |
| Mount Material | Polycarbonate |
| Charging Cable Length | 7 m (23 ft) |
Hardware
| Size | 257 mm (10.1") diagonal |
|---|---|
| Resolution | 800 x 1280 (10:16) |
| Luminance | 800 nits (typical) |
| Processor | Octa-core Arm® Cortex®-A53, 2.2 GHz |
| Connectivity | (1) GbE RJ45 port; (1) USB-C port for payment terminal accessory; Bluetooth® 4.2 |
| Max. load | 70A: 50A; 60A: 48A; 50A: 40A; 40A: 32A; 30A: 24A; 20A: 16A |
| Plug-in | 70A: No; 60A: No; 50A: Yes; 40A: Yes; 30A: Yes; 20A: Yes |
| Hardwired | 70A: Yes; 60A: Yes; 50A: Yes; 40A: Yes; 30A: Yes; 20A: Yes |
| WiFi Standards | 802.11 a/b/g/n/ac |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Ambient Operating Temperature | -40 to 50° C (-40 to 122° F) |
| Certifications | FCC, IC, UL |
Software
| Management Application | UniFi Connect: Version 3.2.4 and later; UniFi Connect iOS™ and Android™: Version 2.2.1 and later |
|---|
