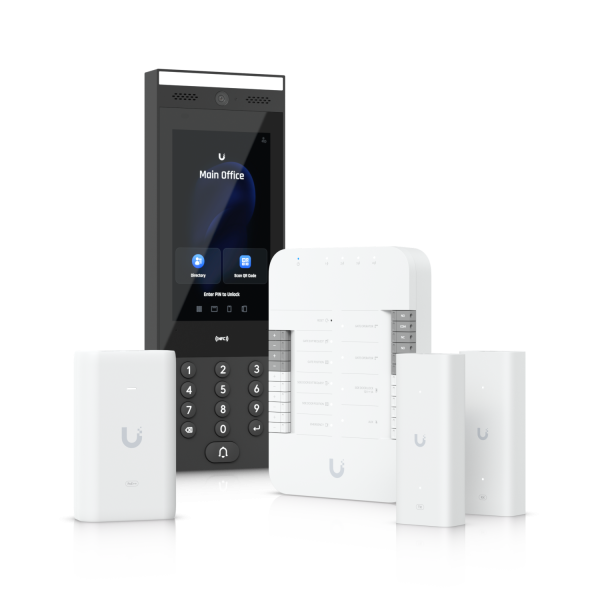

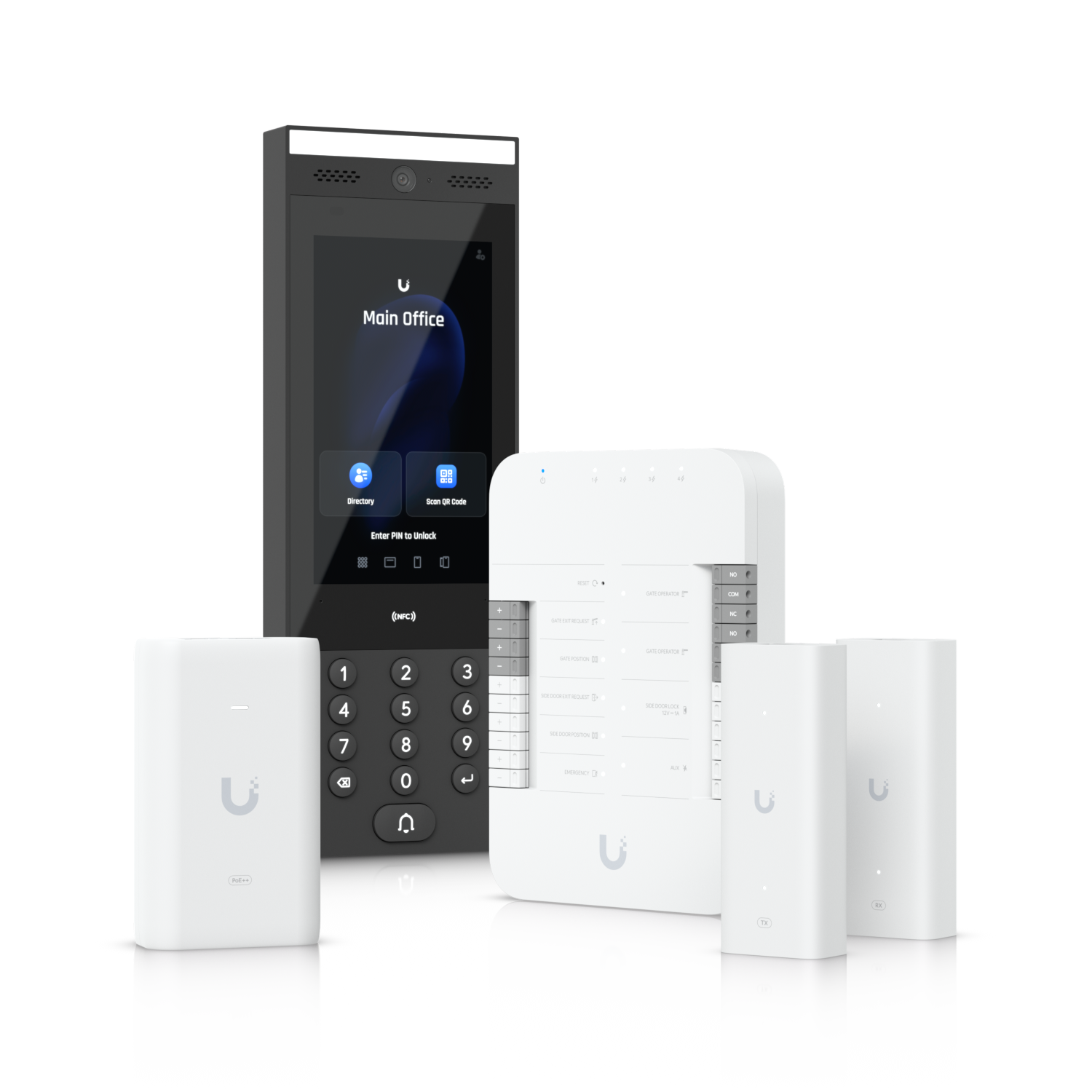

UA-SK-Gate
Gate Access Starter Kit
UA-SK-Gate 屬Ubiquiti UniFi門禁產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
Control a vehicle gate using the connected Intercom and authorize gate access with License Plate Unlock when paired with a compatible Protect AI camera.
Note. License Plate Recognition is supported on Protect AI Series cameras, excluding 360 lenses. Access integration for G6 Series coming soon
功能重點
- (1) Gate Hub
- (1) Intercom
- (1) PoE++ adapter
- (2) 2-wire PoE extenders
- *Note. License Plate Recognition is supported on Protect AI Series cameras, excluding 360 lenses.
規格
Overview
| In the Box | (1) Gate Hub; (1) Intercom; (1) PoE++ adapter; (2) 2-wire PoE extenders |
|---|
Gate Hub
| Dimensions | 175 x 126 x 26 mm; (6.9 x 5 x 1") |
|---|---|
| Supported Doors | 1 gate, 1 side door |
| Maximum User Count | 6,000 |
| Input Terminals | (1) Gate exit request; (1) Gate position; (1) Side door exit request; (1) Side door position; (1) Emergency |
| Power Method | PoE++; UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU |
| Enclosure Material | Polycarbonate |
| Mounting | DIN-rail (Included) |
| Weight | 460 g (1 lb) |
| Indoor and Outdoor Use | Indoor only: device itself; Outdoor: with waterproof junction box |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A; (4) PoE outputs, 50V DC, 30W per port; (Max 55W aggregated) |
| Max. Power Consumption | 22W (Without PoE output); 60W (With PoE output) |
| Digital Input | Gate exit request, gate position, side door exit request, side door position, emergency |
| Dry Output Relay | (2) Operator: rated 30V DC, up to 1A; (1) Aux: rated 30V DC, up to 1A |
| Powered Output Relay | Side door lock: 12V DC, up to 1A |
| LEDs | W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| UA-Lock-Electric (400mA) |
24 AWG length: 25 m (82 ft); 22 AWG length: 42 m (138 ft); 20 AWG length: 66 m (217 ft); 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
| UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m (66 ft); 22 AWG length: 32 m (105 ft); 20 AWG length: 51 m (167 ft); 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
| UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft); 22 AWG length: 20 m (66 ft); 20 AWG length: 30 m (98 ft); 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| Other locks (1A) |
24 AWG length: 9 m (30 ft); 22 AWG length: 15 m (49 ft); 20 AWG length: 24 m (79 ft); 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.; The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Level | Destructive attack: Level I; Line security: Level I; Endurance: Level I; Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294.; The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Hub-Gate, V01 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
Intercom
| Dimensions | 324.8 x 113.7 x 28.3 mm; (12.8 x 4.5 x 1.1") |
|---|---|
| Weatherproofing | IP65 |
| Weight | Device: 965 g (2.1 lb); Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter to the gooseneck pedestal (Included); Surface angle, flush mount, sunshield kit (Optional) |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2; NFC |
| Power Method | PoE; UL 294 Power-limited Class 2 PSU; UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 48V DC |
| Max. Frame Rate | 30 FPS |
| Resolution | 2MP 1200 x 1600 (3:4) |
| Resolution | 8 MP (2448 × 3264) |
| Field of View | H: 79.4°, V: 97.5°, D: 118.2° |
| Sensors | Proximity sensor; ALS sensor |
| Size | 177 mm (7") diagonal |
| Screen Technology | Capacitive multi-touch |
| Luminance | Max. 1000 nits (Typical) |
| Resolution | 1024 x 600 px |
| Speaker | (1) Yes, 2W |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340); MIFARE Classic / MIFARE DESFIRE; Sony FeliCa™ (ID only); NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| LEDs | Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.; The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Level | Destructive attack: Level I; Line security: Level I; Endurance: Level I; Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294.; The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Ambient Operating Temperature | Device: -30 to 60° C (-22 to 140° F); Display: -25 to 60° C (-13 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
| Document number, and issue date and/or revision level | UA-Intercom, V01 |
Wire PoE Extenders
| Model | UACC-Extender-2Wire-PoE-Tx/Rx |
|---|---|
| Dimensions | 40 x 105 x 25 mm ; (1.6 x 4.1 x 1") |
| Weight | PoE in: 77 g (2.7 oz); PoE out: 79 g (2.8 oz) |
| Enclosure Material | Polycarbonate |
| Mounting Material | Polycarbonate |
| Networking Interface | (1) 10/100 MbE; (1) Homeplug AV |
| PoE Interface | PoE input: (1) PoE++, 50V DC, Max. 1.2A; PoE output: (1) PoE+, 48V DC, 0.72A |
| Management | (1) 10/100 MbE |
| Power Method | PoE++ |
| Max. Power Consumption | 3W (Without PoE output) |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| LEDs | White |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
PoE++ Adapter
| Model | U-PoE++ |
|---|---|
| Dimensions | 106 x 63 x 34 mm ; (4.2 x 2.5 x 1.3") |
| Weight | 210 g (7.4 oz) |
| Output Voltage | 48V DC @ 1.25A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| Input Current | 1.3A @ 120V AC; 0.75A @ 230V AC |
| Inrush Current | <100A peak @ 120V AC; <200A peak @ 230V AC |
| Efficiency | 85+% |
| Output Ripple | 1% max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 1% |
| Load Regulation | ≤ 3% |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V data, 60V power |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Power Method | Universal AC input, 100–240V AC, 50/60 Hz |
| Power Supply | AC/DC |
| Supported Voltage Range | 100–240V AC |
| Max. PoE+ Wattage per Port by PSE | 60W |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS |
