描述

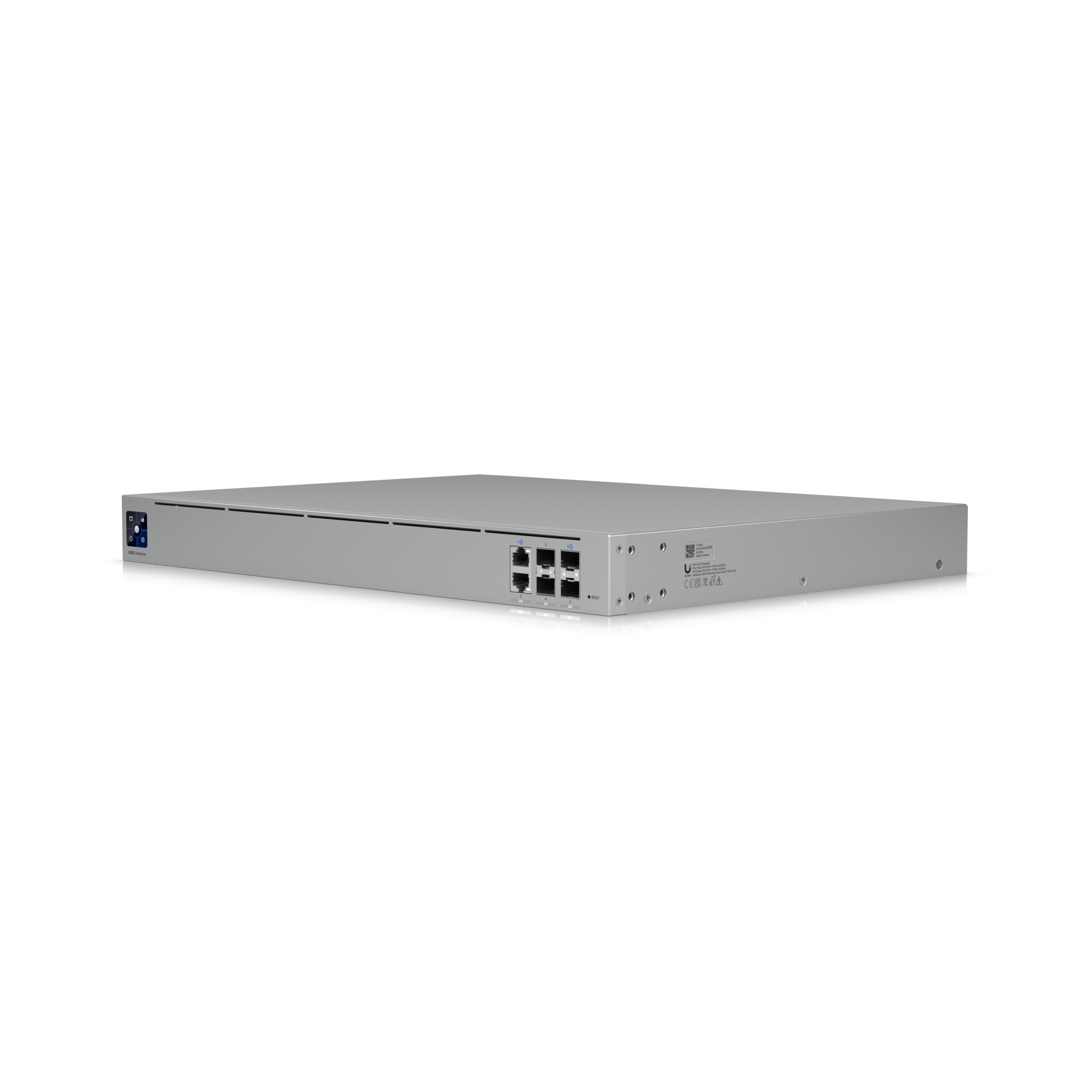

UXG-Enterprise
Gateway Enterprise
UXG-Enterprise 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
25G independent gateway with multi-WAN load balancing, 12.5 Gbps IPS routing, and redundant hot-swap PSUs.
功能重點
- Managed with a CloudKey, Official UniFi Hosting, or UniFi OS Server with UniFi Network 8.3.32 and later
- Shadow Mode High Availability with automatic failover provides uninterrupted connectivity (VRRP)
- 12.5 Gbps routing with IDS/IPS
- License-free, real-time inspection of encrypted packets with NeXT AI Inspection* (SSL/TLS decryption)
- (2) 25G SFP28,** (2) 10G SFP+**, and (2) 2.5 GbE RJ45 ports (two interfaces remappable to WAN)
- (2) included hot-swap PSUs for power redundancy
- 1.3" touchscreen
- *Must be managed with a UniFi OS Server, CloudKey Enterprise or Official UniFi Hosting.**Pair with an official SFP28 Module, SFP+ Module, or SFP+ to RJ45 Adapter for the best experience.
規格
Overview
| Dimensions | 442.4 x 43.7 x 325 mm; (17.4 x 1.7 x 12.8") |
|---|---|
| Max. WAN Port Count | 5 |
| Default WAN Ports | (1) 25G SFP28; (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 | 2; (2.5G/1G/100M/10M) |
| 10G SFP+ | 2; (10G/1G) |
| 25G SFP28 | 2; (25G/10G/1G) |
| IDS/IPS Throughput | 12.5 Gbps |
| SSL/TLS Inspection Concurrent Sessions | 10,000 |
| Concurrent Sessions | 10 Million |
| New Sessions / Second | 71,000 |
| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover; (2) Hot-Swappable PSUs |
Security
| IDS/IPS Signatures | 95,000+ ; with CyberSecure Enterprise |
|---|
VPN & SD-WAN
| Identity Endpoint One-Click VPN | 1.2 Gbps |
|---|---|
| Teleport | 1.2 Gbps |
| WireGuard | 1.2 Gbps |
| OpenVPN | 210 Mbps |
| L2TP | 280 Mbps |
| Site Magic | 1.1 Gbps |
| OpenVPN | 120 Mbps |
| IPsec | 580 Mbps |
| WireGuard | 980 Mbps |
| OpenVPN | 180 Mbps |
Networking
Hardware
| Max. Power Consumption | 82W |
|---|---|
| Power Method | Universal AC input, 100–240V AC, 7A Max., 50/60 Hz |
| Power Supply | (2) Hot-swappable 150W CRPS |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 280 BTU/hr |
| Processor | 18-core ARM® v8.2 at 2 GHz |
| System Memory | 16 GB |
| Weight | 6.5 kg (14.3 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet; Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Software
| UniFi Network | Version 8.3.32 and later |
|---|
