描述

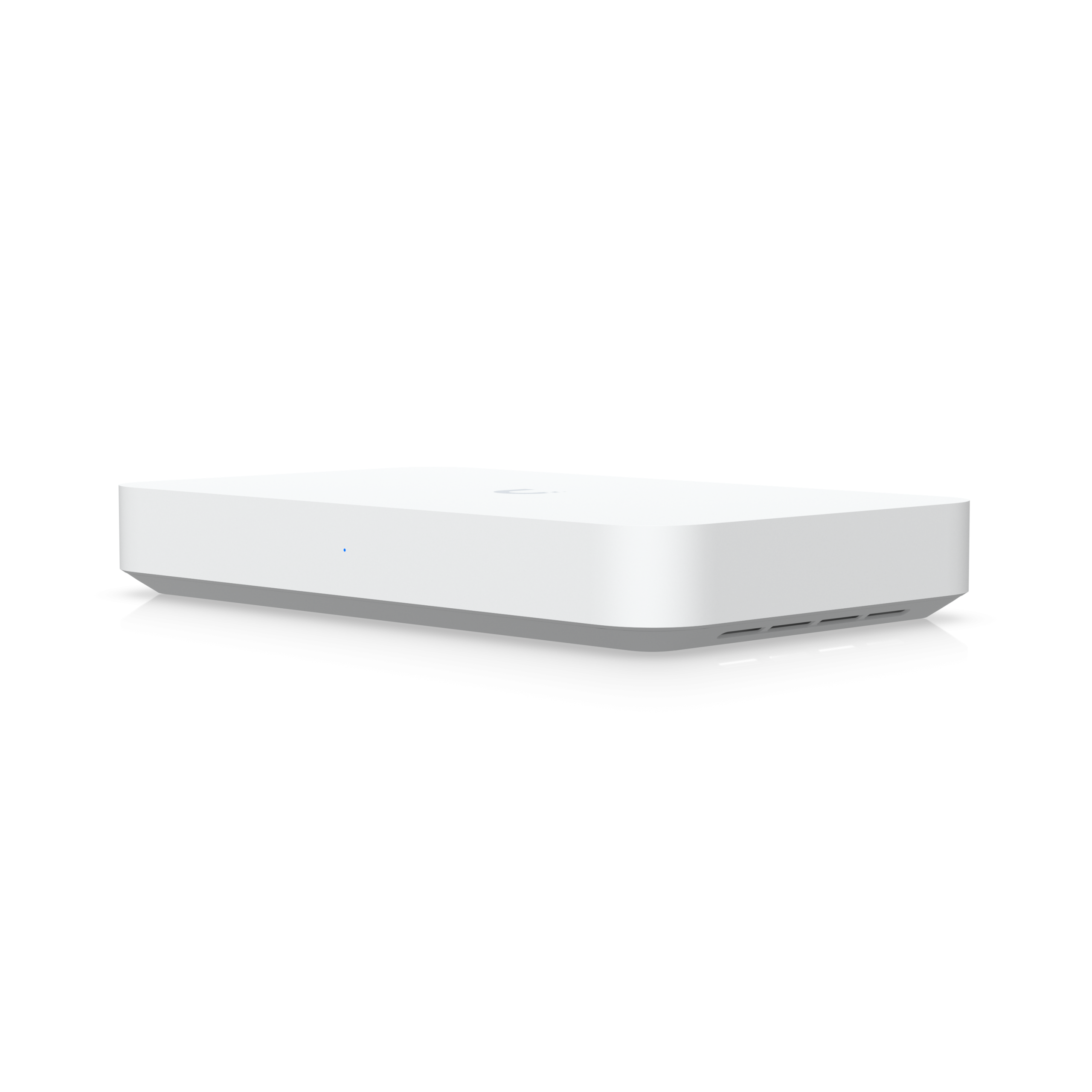

UXG-Fiber (30W)
Gateway Fiber
UXG-Fiber (30W) 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
功能重點
- Managed with a CloudKey, Official UniFi Hosting, or UniFi OS Server with UniFi Network
- 5 Gbps routing with IDS/IPS
- (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
- (1) 10G SFP+ LAN port
- Integrated 4-port switch with (1) PoE+ port
規格
Overview
| Dimensions | 212.8 x 127.6 x 30 mm ; (8.4 x 5 x 1.2") |
|---|---|
| Max. WAN Port Count | 6 |
| Default WAN Ports | (1) 10G SFP+; (1) 10 GbE RJ45 |
| 2.5 GbE RJ45 | 4; (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 1; (10G/2.5G/1G) |
| 10G SFP+ | 2; (10G/1G) |
| IDS/IPS Throughput | 5 Gbps |
| Form Factor | Compact desktop |
Security
| IDS/IPS Signatures | 55,000+ ; With CyberSecure |
|---|
VPN & SD-WAN
Networking
| MAC Address Table Size | 4,000 |
|---|
Hardware
| PoE Budget | 30W |
|---|---|
| PoE+ | 30W |
| Voltage Range PoE Mode | 50–57V |
| Max. Power Consumption | 25W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A; (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 85 BTU/hr (Excluding PoE output) |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 2 GB |
| Weight | 605 g (1.3 lb) |
| Enclosure Material | Polycarbonate |
| Management | Ethernet; Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04395-25-08356 |
