描述

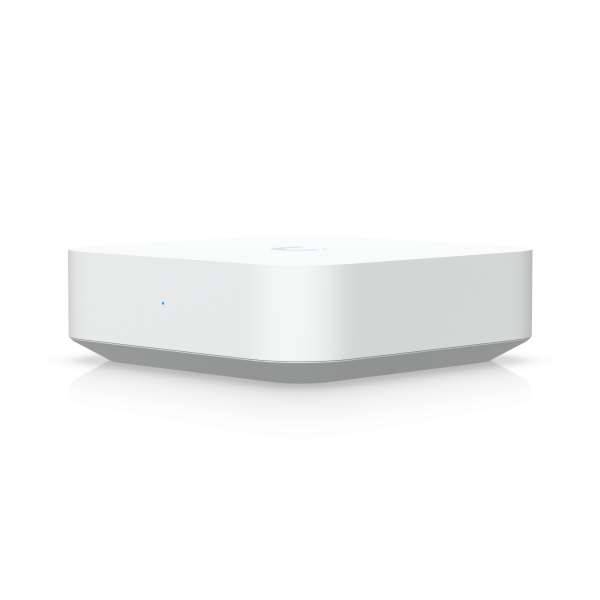

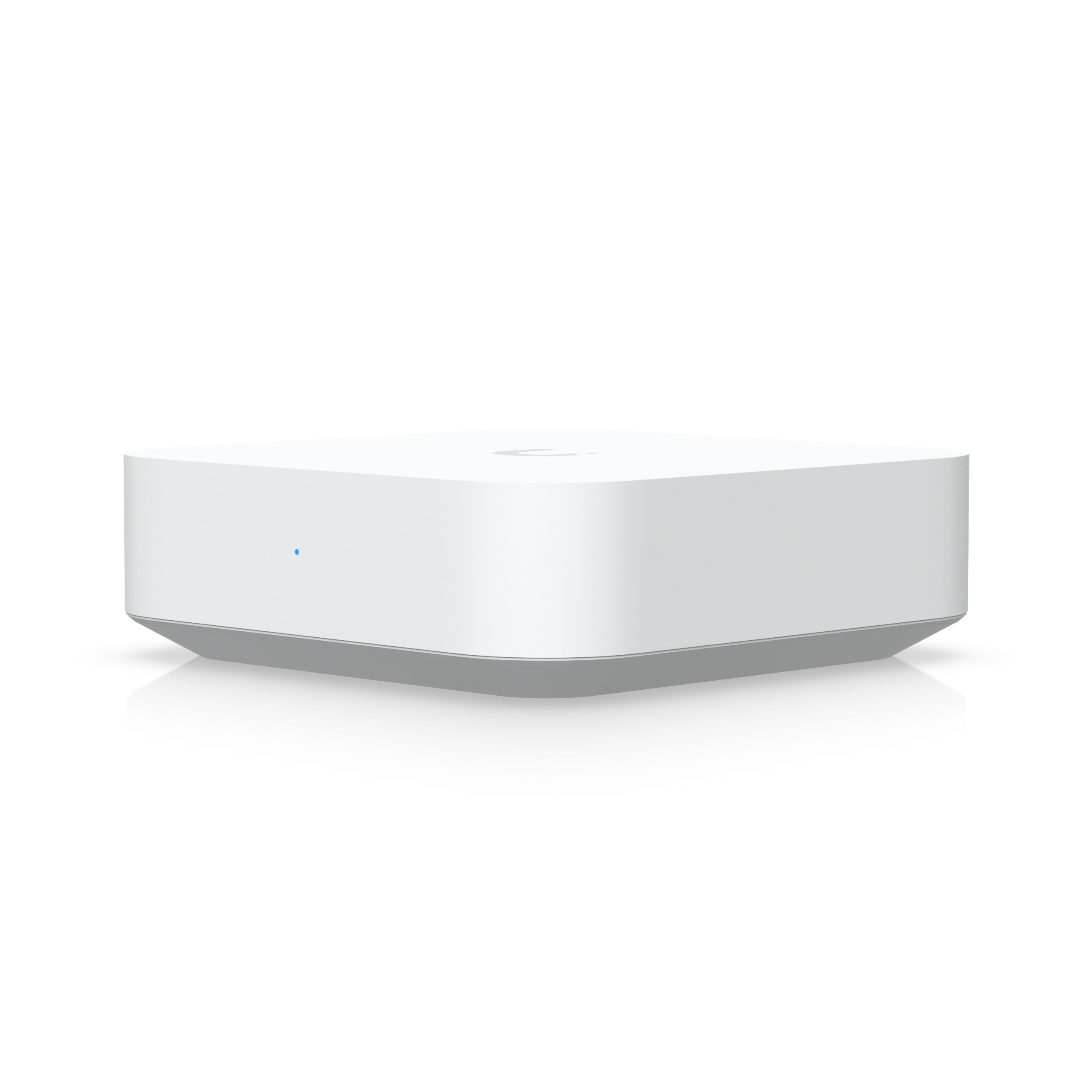

UXG-Lite
Gateway Lite
UXG-Lite 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Compact independent gateway with a full suite of advanced routing and security features.
功能重點
- Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
- Managed with a CloudKey, Official UniFi Hosting, or UniFi OS Server with UniFi Network 8.3.32 and later
- (1) GbE WAN port
- (1) GbE LAN port
- Compact footprint
- USB-C powered (adapter included)
規格
Overview
| Dimensions | 98 x 98 x 30 mm; (3.9 x 3.9 x 1.2") |
|---|---|
| Max. WAN Port Count | 1 |
| Default WAN Ports | (1) GbE RJ45 |
| 1 GbE RJ45 | 2; (1G/100M/10M) |
| IDS/IPS Throughput | 1 Gbps |
| Form Factor | Compact desktop |
Security
VPN & SD-WAN
Networking
Hardware
| Max. Power Consumption | 3.83W |
|---|---|
| Power Method | USB type C (5V DC/3A) |
| Power Supply | USB type C (5V DC/3A) ; (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 13 BTU/hr |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| System Memory | 1 GB |
| Weight | 320 g (11.3 oz) |
| Enclosure Material | Polycarbonate |
| Management | Ethernet; Bluetooth |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 01874-24-08356 |
Software
| UniFi Network | Version 8.3.32 and later |
|---|
