描述

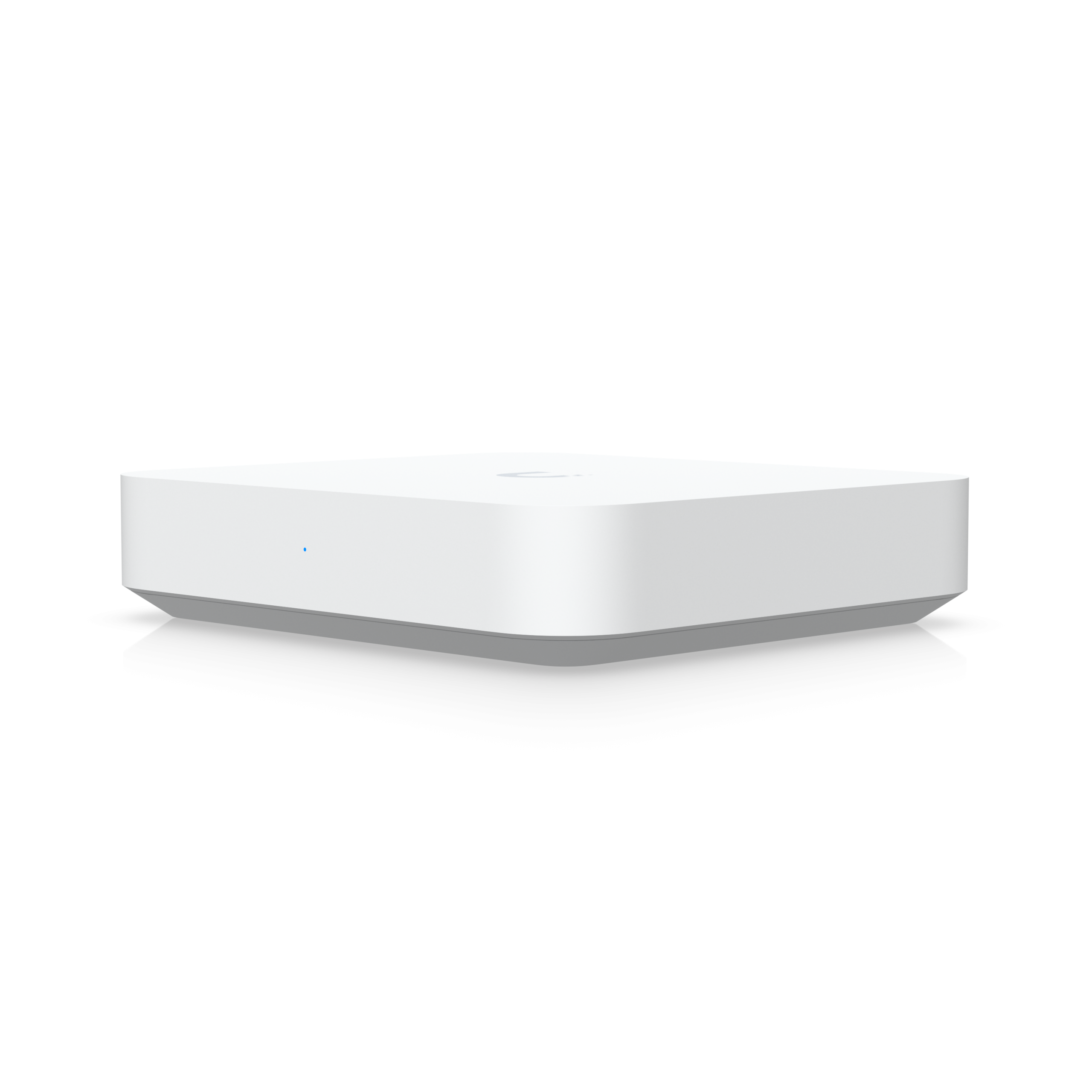

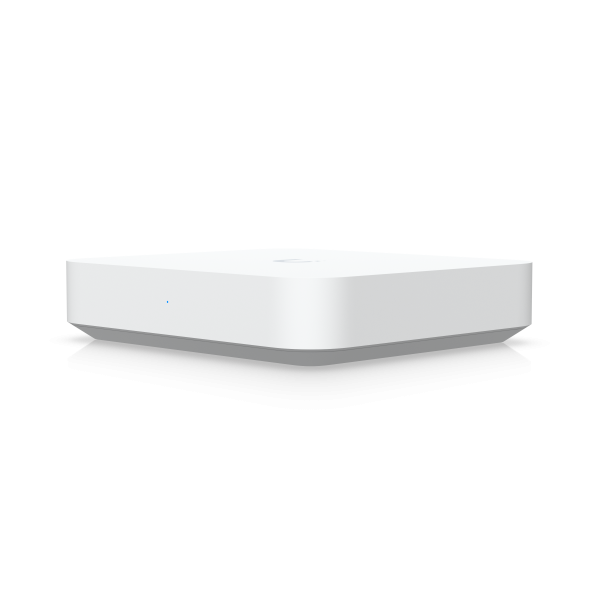

UXG-Max
Gateway Max
UXG-Max 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.
功能重點
- Managed with a CloudKey, Official UniFi Hosting, or UniFi OS Server with UniFi Network 8.1.113 and later
- Up to 2.3 Gbps routing with IDS/IPS
- (1) 2.5 GbE WAN port
- (4) 2.5 GbE LAN ports, including (1) remappable to WAN
- USB-C powered (adapter included)
規格
Overview
| Dimensions | 141.8 x 127.6 x 30 mm; (5.6 x 5 x 1.2") |
|---|---|
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 | 5; (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
Security
| IDS/IPS Signatures | 55,000+ ; With CyberSecure |
|---|
VPN & SD-WAN
Networking
| MAC Address Table Size | 2,000 |
|---|
Hardware
| Max. Power Consumption | 9.6W |
|---|---|
| Power Method | USB type C (5V DC/3A) |
| Power Supply | USB type C (5V DC/3A); (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 33 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 2 GB |
| Weight | 520 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| Management | Ethernet; Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04873-25-08356 |
Software
| UniFi Network | Version 8.1.113 and later |
|---|
