描述

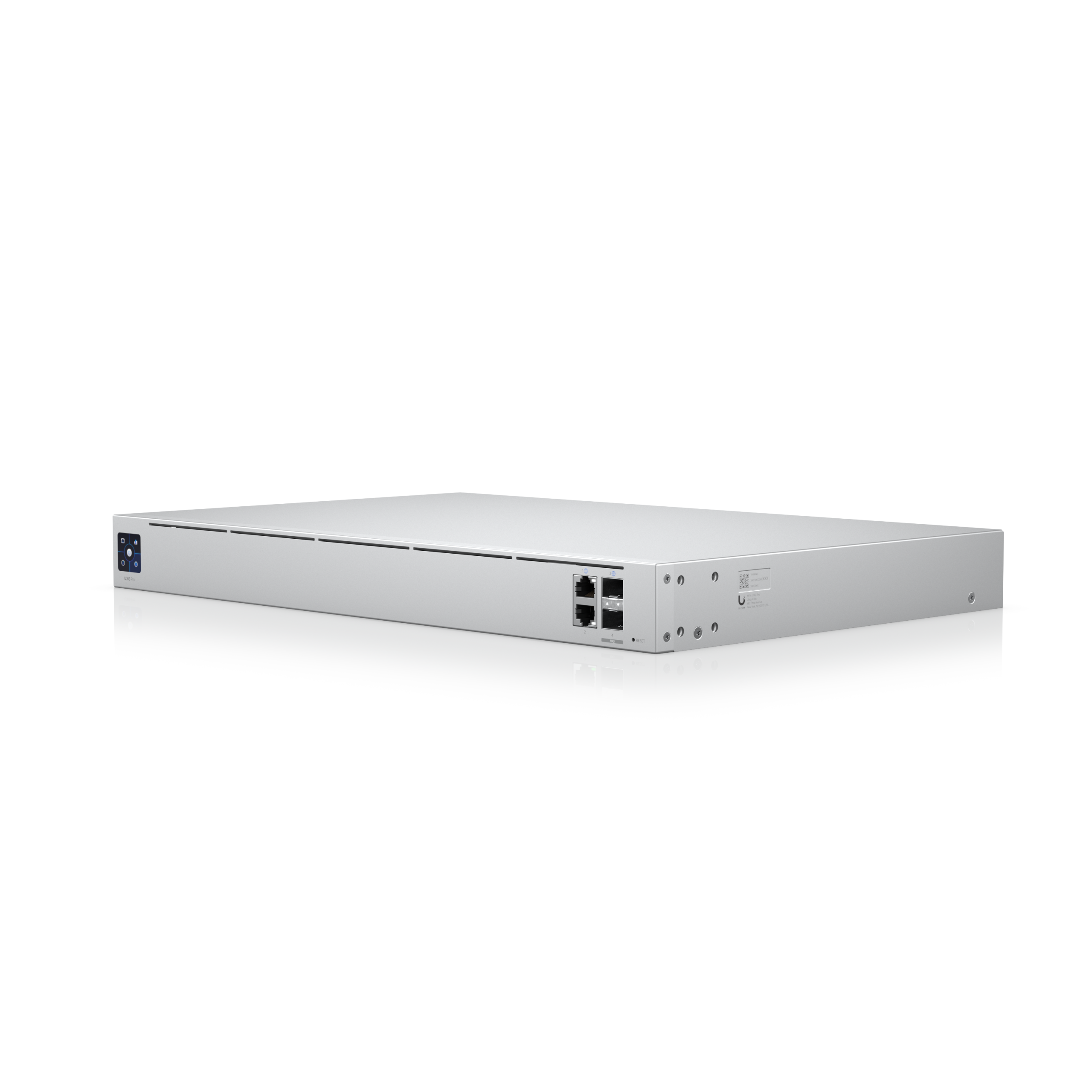

UXG-Pro
Gateway Pro
UXG-Pro 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
10G multi-WAN independent gateway with UniFi Power Backup support designed to protect large-scale networks.
功能重點
- Managed with a CloudKey, Official UniFi Hosting, or UniFi OS Server with UniFi Network 8.3.32 and later
- 3.5+ Gbps routing with IDS/IPS
- (1) 10G SFP+* and (1) GbE WAN port
- (1) 10G SFP+* and (1) GbE LAN port
- UniFi Power Backup ready
- *Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
規格
Overview
| Dimensions | 442.4 x 43.7 x 285.6 mm; (17.4 x 1.7 x 11.2") |
|---|---|
| Max. WAN Port Count | 3 |
| Default WAN Ports | (1) 10G SFP+; (1) GbE RJ45 |
| 10G SFP+ | 2; (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |
| Form Factor | Rack mount (1U) |
| Redundancy | DC Power Backup |
Security
| IDS/IPS Signatures | 55,000+ ; With CyberSecure |
|---|
VPN & SD-WAN
Networking
Hardware
| Max. Power Consumption | 30W |
|---|---|
| Power Method | US: ; (1) Universal AC input, 125V AC, 2.7A Max., 60 Hz; (1) RPS DC input, 11.5V DC, 2.87A; ; Worldwide:; (1) Universal AC input, 200-240V AC, 1.7A Max., 50/60 Hz; (1) RPS DC input, 11.5V DC, 2.87A |
| Power Supply | AC/DC, internal, 50W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 102 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 2 GB |
| Weight | 3.4 kg (7.5 lb) |
| Enclosure Material | Front panel: Aluminum CNC; Top cover/base: SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 19089-22-08356 |
Software
| UniFi Network | Version 8.3.32 and later |
|---|
