描述

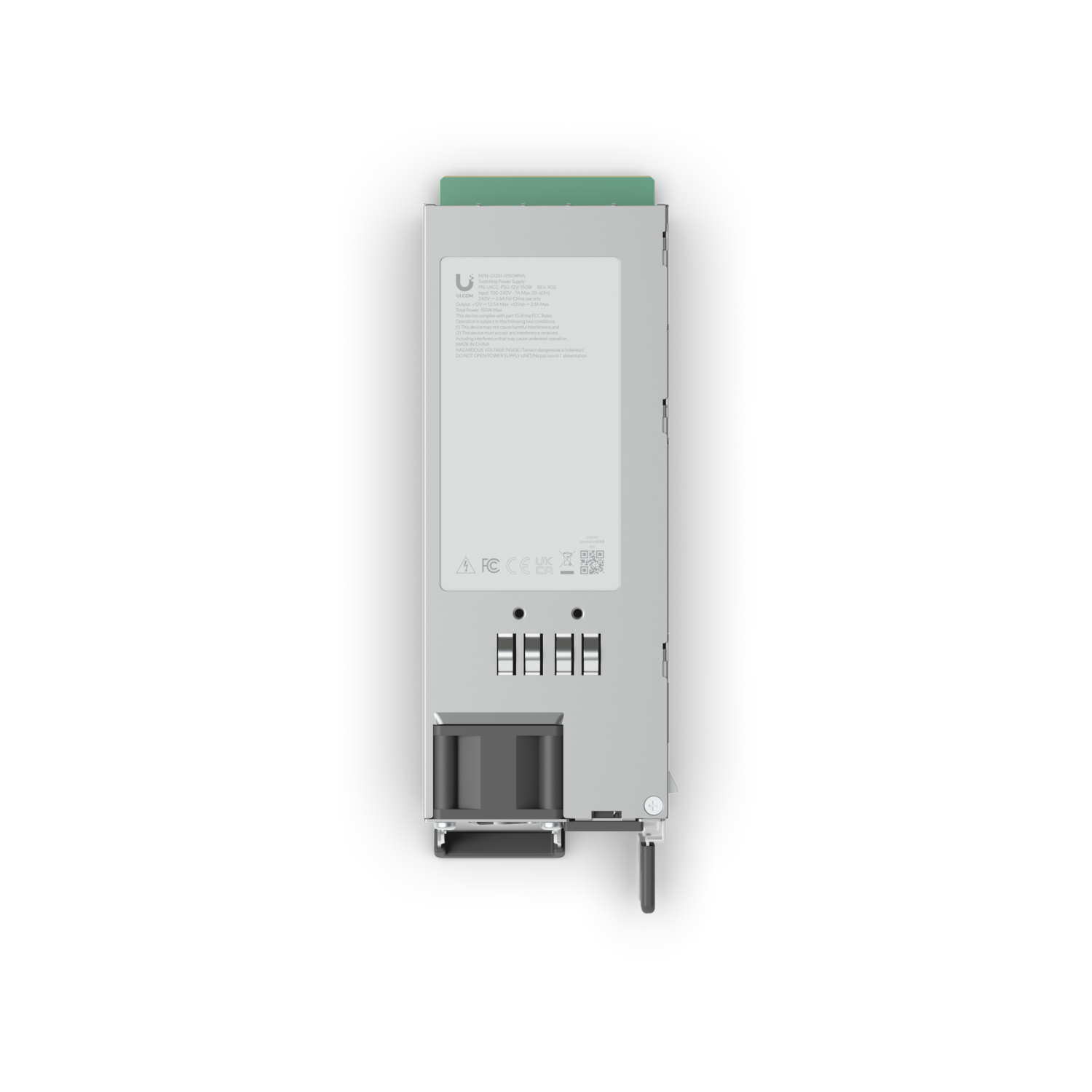

UACC-PSU-12V-150W
Hot-Swappable Power Module (150W)
UACC-PSU-12V-150W 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Replacement hot-swappable power module for Enterprise Fortress Gateway and Gateway Enterprise.
功能重點
- 150W (12V) AC-to-DC power supply
規格
Overview
| Dimensions | 185 x 73.5 x 40 mm (7.3 x 2.9 x 1.6") |
|---|---|
| Weight | 733 g (1.6 lb) |
| Enclosure Material | SGCC steel |
| Input Voltage Range | 100–240V AC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 12V DC at 12.5A |
| Input Current | 7A Max. at 120V AC; 3.6A Max. at 230V AC |
| Inrush Current | <50A peak |
| Efficiency | Full load >81% |
| Total Output Power | 150W |
| Over Voltage Protection | 13.5V |
| Over Current Protection | 18.5–22.5A |
| Ambient Operating Temperature | -5 to 50° C (23 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, UKCA, KC, CCC, RoHS |
