UACC-Cable-IR-Receiver
IR Receiver
UACC-Cable-IR-Receiver 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。

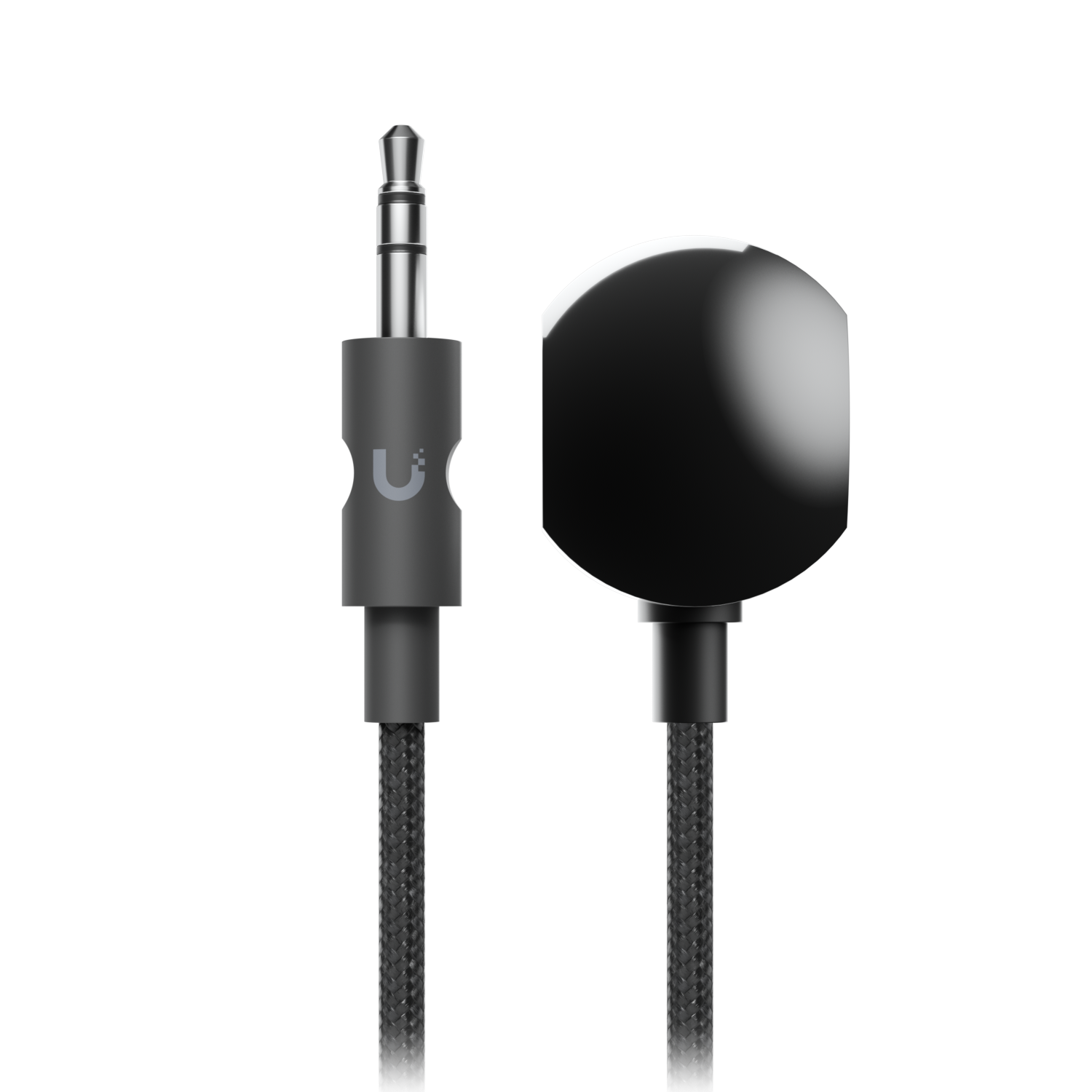

An IR signal receiver which allows remote control signals to be forwarded via Enterprise Audio/Video Bridge.
規格
Overview
| Length | 1.5 m (4.9 ft) |
|---|---|
| Dimensions | Receiver: 20.5 x 25 x 16.5 mm; (0.8 x 1 x 0.7") |
| Connector | ⌀3.5 mm TRS plug |
| Supported Media | Infrared |
| Receiver Distance | 12 m (39 ft) |
| Carrier Frequency | 37.9 kHz |
| Material | Polyvinyl (PVC) |
| Operating Environment | Indoor |
| Weight | 23 g (0.8 oz) |
| Weatherproofing | IPX0 |
| Power Method | 3V/1.5mA |
| Insertion Loss | 4.5 dB |
| Repeatability | 110 ms |
| Durability | Satisfactory |
| Ambient Storage Temperature | -40° to 125° C (-40° to 257° F) |
| Ambient Operating Temperature | -25° to 85° C (-13° to 185 F) |
| Ambient Operating Humidity | 5 to 80% noncondensing |
| Certifications | RoHS |
