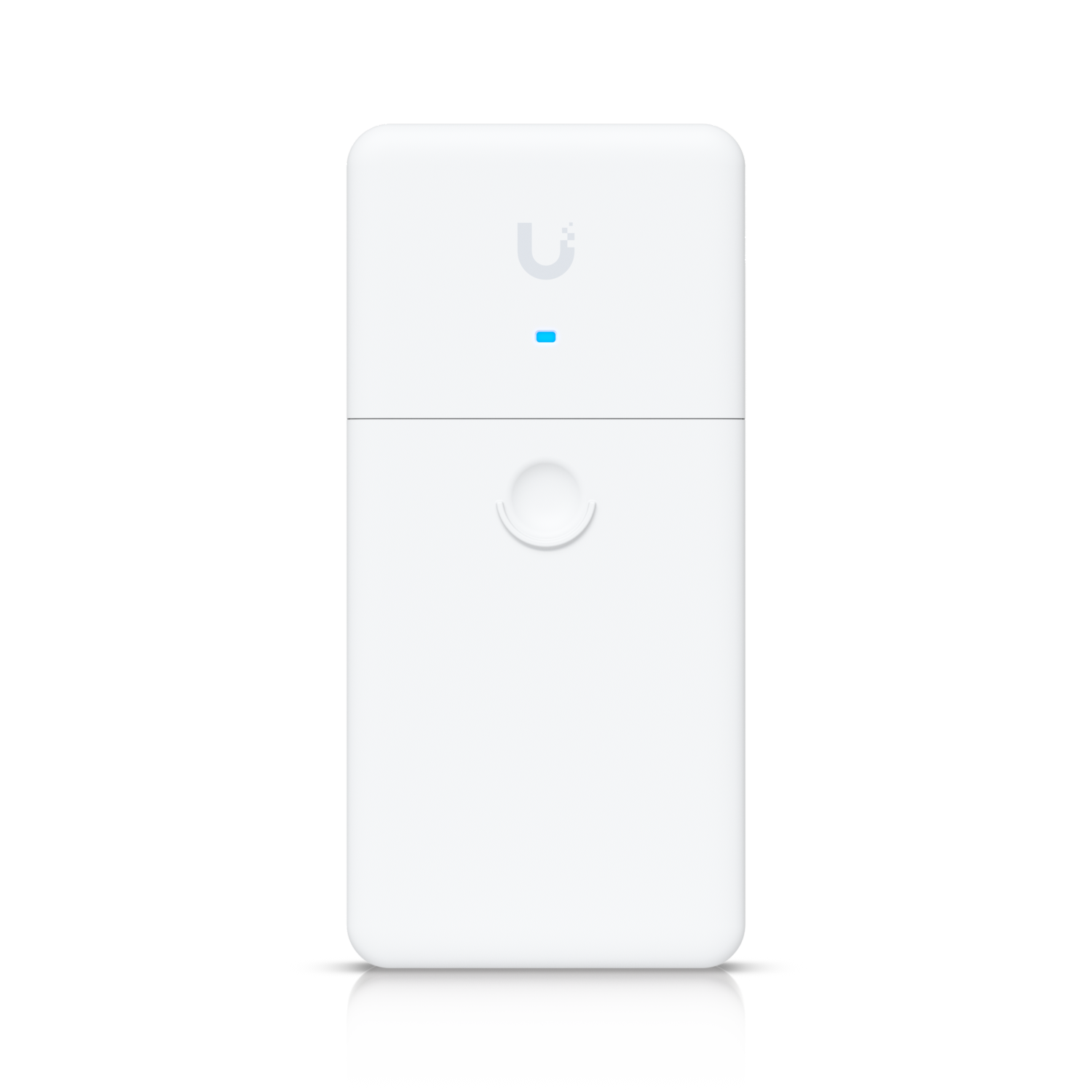

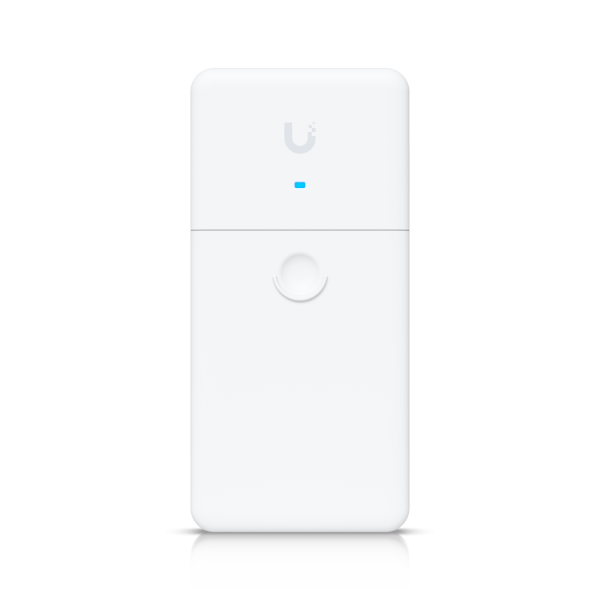

UACC-LRE
Long-Range Ethernet Repeater
UACC-LRE 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.
功能重點
- Extend PoE connections up to 1 km*
- (1) GbE RJ45 port for PoE/PoE+ input**
- (1) GbE RJ45 port for passthrough PoE output
- 10kA+ surge protection
- Works reliably in extreme temperatures (-40 to 80° C)
- *Repeaters must be placed in 100 m increments.
- **Powered with pins 1, 2+; 3, 6- which may not be supported by certain third-party switches. We recommend using a UniFi switch to power the device.
規格
Overview
| Dimensions | 196.5 x 93.5 x 39 mm; (7.7 x 3.7 x 1.5") |
|---|
Mechanical
| Weight | 350 g (12.3 oz) |
|---|---|
| Enclosure Material | UV stabilized polycarbonate |
| Mounting Material | Stainless steel |
| Weatherproofing | IPX5 |
Hardware
| Power Method | PoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-) |
|---|---|
| Max. Power Consumption | 1.5W (Excluding PoE output) |
| Networking Interface | (2) GbE RJ45 ports |
| PoE Interface | (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-) |
| Total Non-Blocking Line Rate | 2 Gbps |
| Switching Capacity | 4 Gbps |
| Forwarding Rate | 1.488 Mpps |
| Total Available PoE | 22.5W |
| Voltage Range PoE Mode | 37—57V DC |
| ESD/EMP Protection | Air/contact: ± 30kV |
| DC Sparkover Voltage | 90V at 100V/s |
| Max. Impulse Sparkover Voltage | 700V at 1kV/μs |
| Discharge Current | 10kA+ |
| Max. MTU | 1,500 bytes |
| System | Blue: power ON |
| Ethernet | Green: 1 Gbps; Amber: 10/100 Mbps |
| PoE | Amber: passthrough PoE out |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
