描述

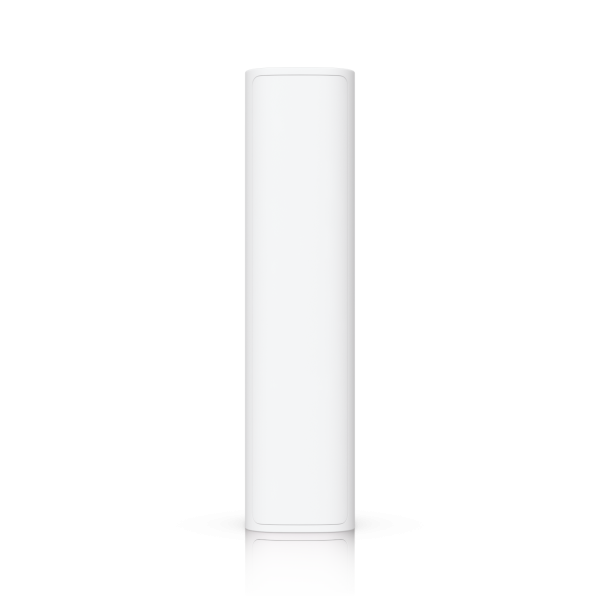

USL-Motion
Motion Sensor
USL-Motion 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
SuperLink motion sensor designed for versatile installation, delivering up to 6 years of battery life.
規格
Overview
| Dimensions | Device with wall mount: ; 93.5 x 22.5 x 24.7 mm (3.7 x 0.89 x 0.97"); Device with corner mount:; 93.5 x 22.5 x 27.9 mm (3.7 x 0.89 x 1.1") |
|---|---|
| Mounting | Adhesive and screw mount |
| UniFi Application Suite | Protect |
Performance
| Connectivity | SuperLink (Proprietary) |
|---|---|
| SuperLink | US: 915.6–927.6 MHz; EU: 865.1–869.5 MHz; JP: 920.5–922.3 MHz |
| SuperLink | 14 dBm |
| SuperLink | 2 km (1.2 mi) |
| Horizontal PIR Sensor | Detection range up to 1.5 m (4.9 ft) |
| Vertical PIR Sensor | Detection range up to 6 m (19.7 ft); with pet immunity |
Hardware
| Max. Power Consumption | 22.6mW |
|---|---|
| Supported Voltage Range | 3V |
| Power Method | Lithium battery CR123A |
| Battery Life | Up to 6 years |
| Weight | 45 g (1.6 oz) |
| Enclosure Material | Polycarbonate, high-density polyethylene (HDPE) |
| Mount Material | Polycarbonate |
| Buttons | (1) Factory reset; (1) Function button; (1) Tamper switch |
| LEDs | (1) Status: R/B/W; (1) Signal: B/R |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Software
| Web Application | UniFi Protect |
|---|---|
| Mobile App | UniFi Protect iOS™ and Android™ |
