描述

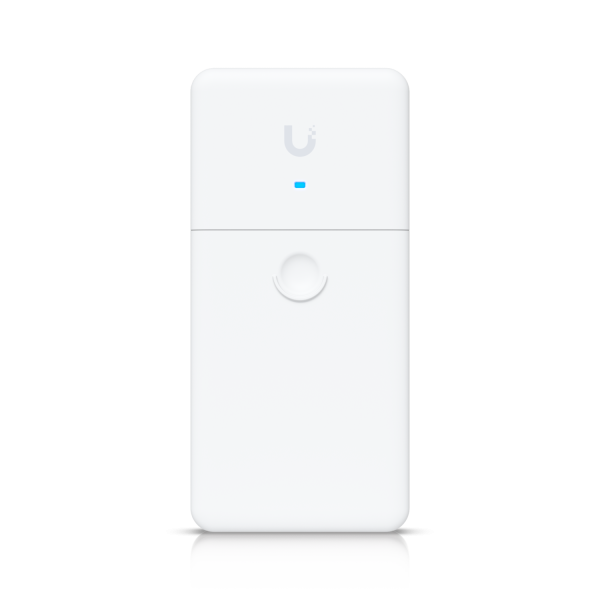

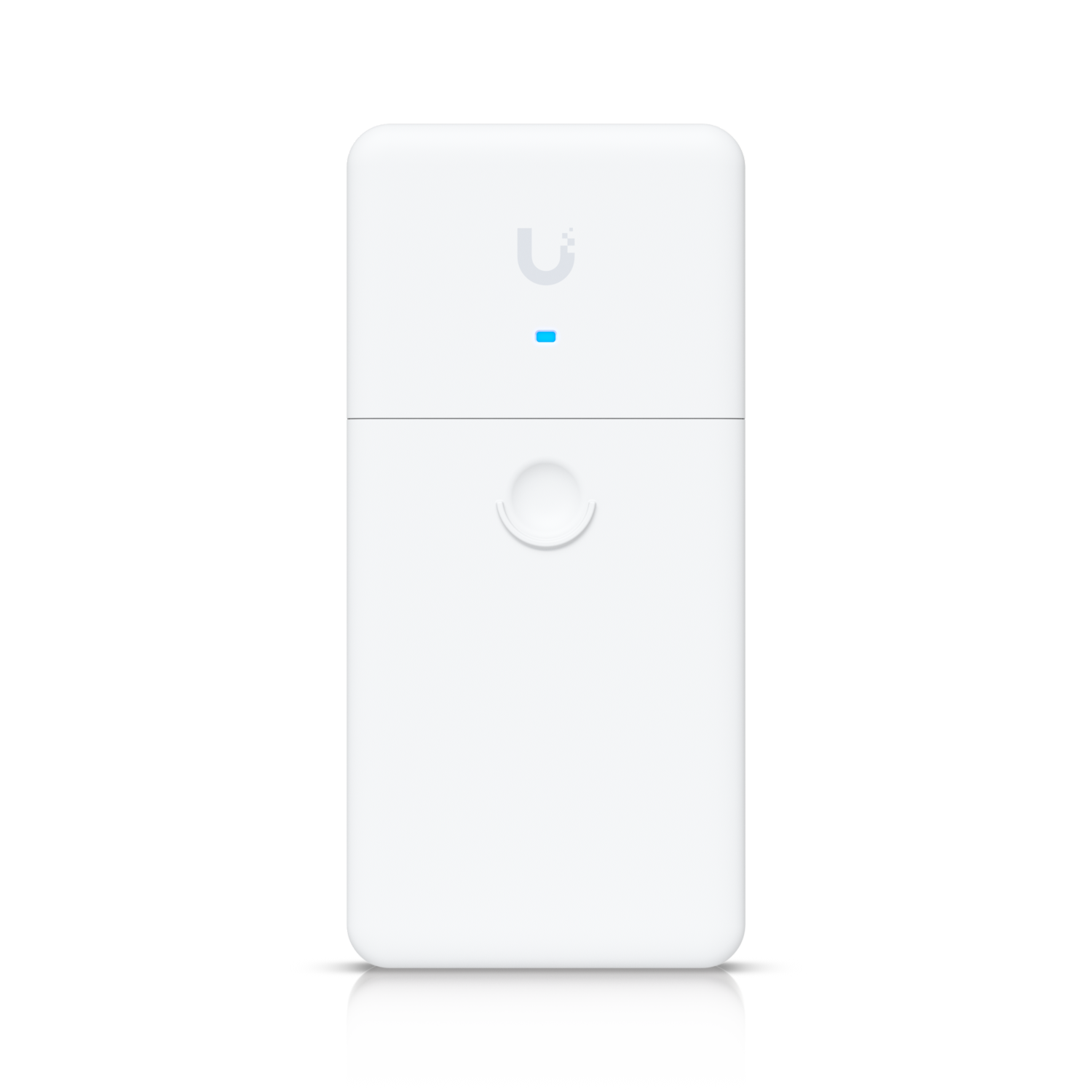

F-POE-G2
Optical Data Transport for Outdoor PoE Devices
F-POE-G2 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Connects remote PoE devices and provides data and power using fiber and DC cabling.
功能重點
- Reliable long-distance Gigabit PoE runs
- Dependable 24V/50V passive PoE transport
- Enhanced ESD protection and EMI reduction
- Works reliably in extreme temperatures (-40 to 60° C)
規格
Overview
| Dimensions | 196.4 x 93.5 x 32.4 mm; ( 7.7 x 3.7 x 1.3") |
|---|---|
| Enclosure Material | Polycarbonat |
| Weight | 288 g (10.2 oz) |
| Weatherproofing | IPX5 |
| Surge Protection | Built-in high-current gas discharge tube for DC terminal block and PoE port |
| Networking Interface | (1) 1 Gbps SFP port; (1) DC terminal block; (1) DC RJ45 port DC injection; (1) GbE PoE port (10/100 MbE not supported) |
| Input DC voltage | 16–57V |
| DC Output | Terminal block, 24V DC/50V DC, 2-wire |
| Power Method | DC Terminal Block, 2-Wire, 24V DC/50 VDC; DC in RJ45 Port, 2-pair (4, 5+; 7, 😎 (24V DC input), or 4-pair (24V DC/50V DC input) passthrough; PoE RJ45 port, 2-pair (4, 5+; 7, 😎 (24V DC input), or 4-pair (24V DC/50V DC input) PoE passthrough |
| Power Consumption | 1.5W (Typical) |
| ESD Protection | ± 24kV Contact / Air for Ethernet |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC |
