描述
FC-SM

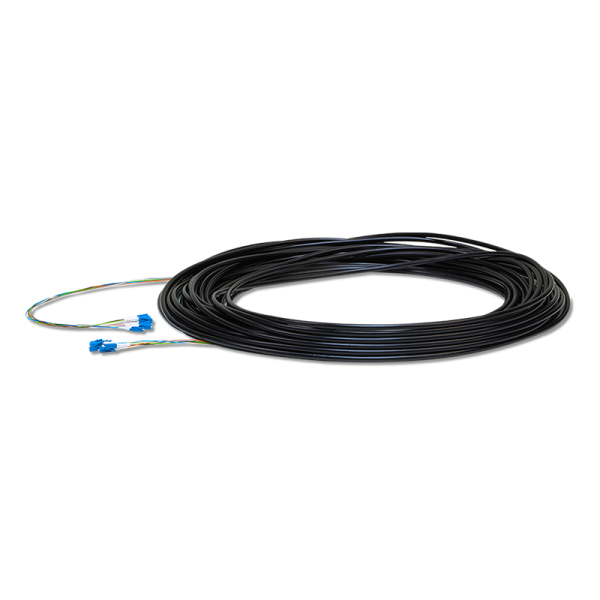

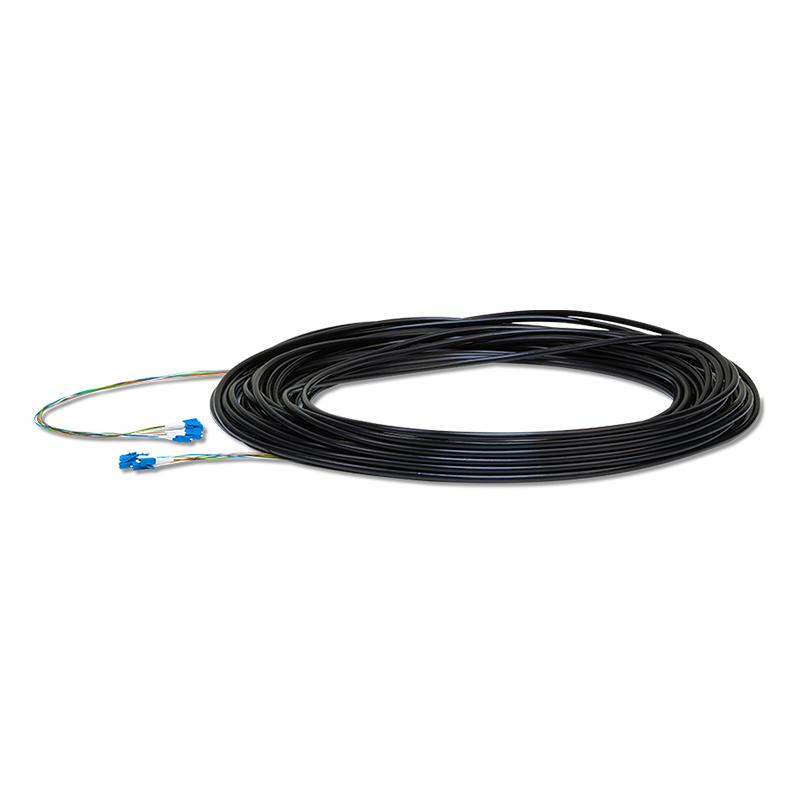

OS1 Simplex LC UPC Fiber Patch Cable
FC-SM 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Outdoor OS1 single-mode fiber cable with simplex LC UPC connectors.
功能重點
- OS1 single-mode fiber
- Simplex LC UPC connectors
- Cable length: 30.5 to 91.5 m
- Outdoor-rated jacket with ripcord
- Kevlar yarn for added tensile strength
規格
Overview
| Available Lengths | 30.5/61/91.5 m ; (100/200/300 ft) |
|---|---|
| Pack Options | Single Unit |
| Connector | (12) Simplex LC UPC |
| Operating Environment | Outdoor |
| Weatherproofing | IP65 |
| Fiber Mode | OS1 |
| Jacket Diameter | 6 mm (0.24") |
| Jacket Material | Thermoplastic polyurethane (TPU) with Kevlar strength member inside |
| Jacket Color | Black |
| Wavelength | 1310/1550 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Repeatability | ≤ 0.5 dB |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
