描述
UTP-G3-Touch-Wall
Phone G3 Touch Wall
UTP-G3-Touch-Wall 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。

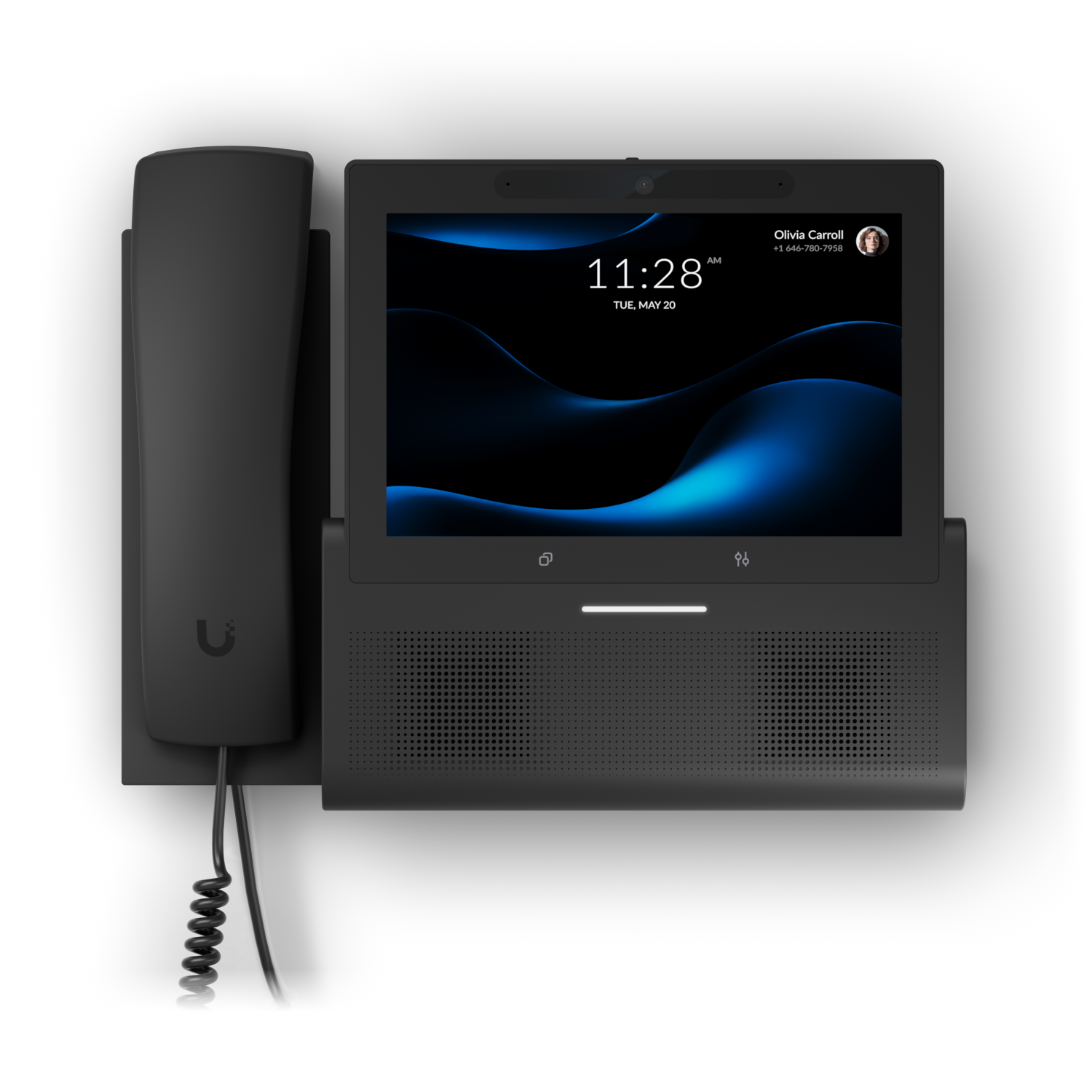

Next-generation wall-mountable smartphone for UniFi Talk, featuring a 7″ touch display and seamless integration with UniFi applications.
功能重點
- Easily integrates with 3rd party PBX platforms using Talk Relay
- Optional G3 Wireless Handset for added flexibility
- High-performance speakerphone for clear audio
- Ergonomic handset with a mute button
- Bluetooth connectivity for added versatility
- Powered by PoE or USB-C (5V DC, 3A)
- Wall-mountable
規格
Overview
| Dimensions | 254.4 x 202.5 x 70.1 mm ; (10 x 8 x 2.8”) |
|---|---|
| Mounting | Wall |
| Touch Screen Technology | Multi-Touch |
| Available Colors | Black |
Mechanical
| Weight | 1.1 kg (2.5 lb) |
|---|---|
| Enclosure Material | Polycarbonate, aluminum alloy (base) |
Hardware
| Connectivity | (2) GbE RJ45 ports; 802.11 a/b/g/n/ac WiFi; Bluetooth® 4.2 (General use); Bluetooth® 5.2 (Ubiquiti G3 Wireless Handset only); NFC support |
|---|---|
| Power Method | USB type-C; PoE |
| Max. Power Consumption | 11W |
| Processor | Octa-core ARM® Cortex®-A53 |
| Memory | Storage: 32 GB; RAM: 2 GB |
| Camera | 2592 x 1944, 5MP ; (Embedded Privacy shutter) |
| Screen Surface Treatments | Anti-Glare Coating |
| Size | 178 mm (7") diagonal |
| Resolution | 1280 x 800 HD |
| Hands-Free Microphone | Dual omnidirectional MEMS microphone |
| Hands-Free Speaker | Dual 3W speaker |
| Handset Microphone | Omnidirectional electret condenser microphone |
| Handset Dynamic Receiver | Standard wideband-capable audio |
| Buttons | (1) Mute Button |
| LED | R/G/B/W |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 10 mm |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
