描述

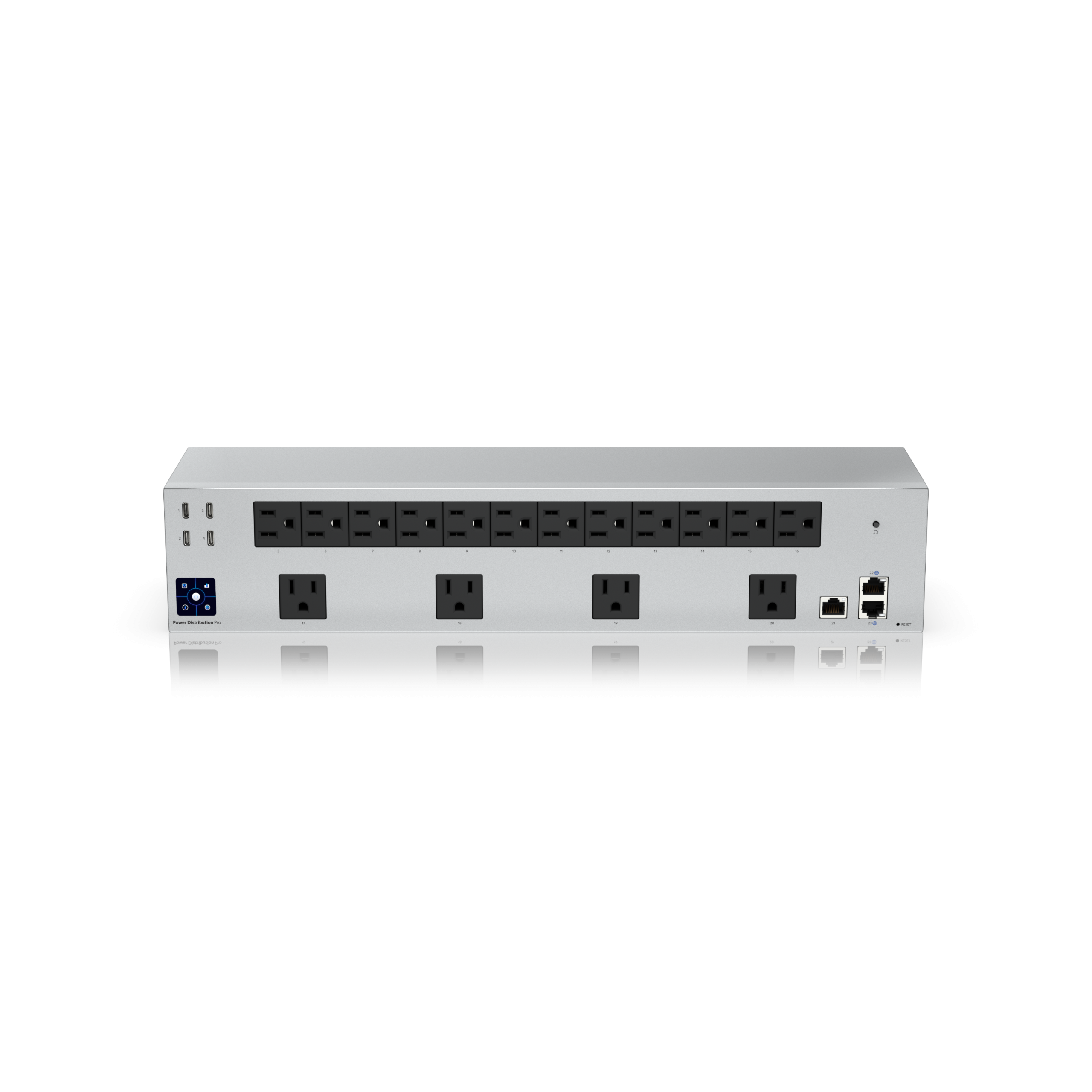

USP-PDU-Pro
Power Distribution Pro
USP-PDU-Pro 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Designed to supply power to an entire rack-mounted UniFi system and remotely manage each connection.
Note. Virtual router redundancy support coming soon. Requires multiple UniFi Gateways.
規格
Mechanical
| Dimensions | 442.4 x 87.4 x 106 mm; (17.4 x 3.4 x 4.2") |
|---|---|
| Weight | Without mount: 3.5 kg (7.6 lb); With mount: 3.7 kg (8.2 lb) |
| Enclosure Material | SGCC steel |
Hardware
| Management | Ethernet |
|---|---|
| Networking Interface | (1) 100 MbE RJ45 port; (3) GbE RJ45 ports |
| Power Method | 125V AC, 15A Max., 50/60 Hz |
| Power Supply | AC/DC internal, 40W |
| Max. Power Consumption | 125V AC: 1,875W |
| Power Output | (16) Power control outlets, 125V AC, 15A Max., 50/60Hz (1,875W Max. total); (4) USB-C ports, 2A Max. per port (4A/20W Max. total) |
| Display | 1.3" touchscreen |
| Buttons | (1) Factory reset; (1) Circuit breaker |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC |
