UP-AlarmHub-Kit

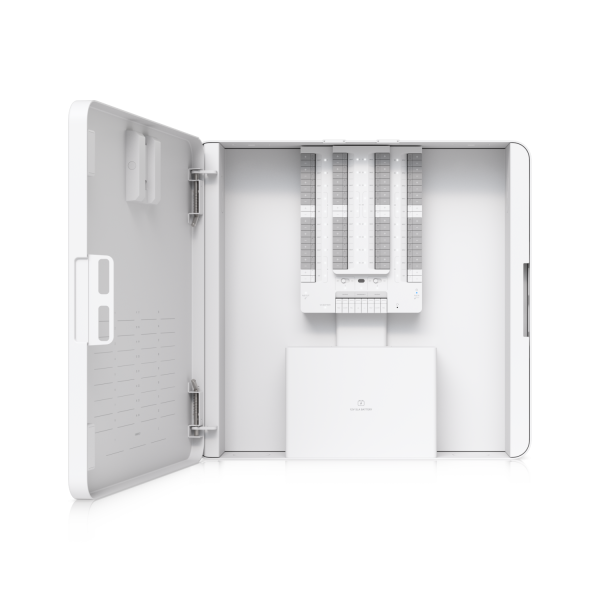

Protect Alarm Hub Kit
UP-AlarmHub-Kit 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
32 input zone alarm control hub for hardwire intrusion sensors powered using PoE++ input and optional battery backup.
規格
Overview
| Dimensions | 379 x 355 x 105 mm (15 x 14 x 4.1") |
|---|---|
| Input Terminals | (32) Alarm sensor; (1) Emergency |
| Power Method | PoE++/PoE+++; 12V SLA battery |
| Power Output Availability | PoE+++ input: 68W; PoE++ input: 42W |
Mechanical
| Weight | Device: 8.3 kg (18.3 lb); Mount: 624 g (1.4 lb) |
|---|---|
| Enclosure Material | SGCC steel housing with polycarbonate cover |
| Mount Material | SGCC steel |
| Mounting | Wall |
Hardware
| Digital Input | (32) Inputs for alarm sensor (Compatible with EOL resistors: 1–5.6kΩ, 1kΩ included) ; (1) Emergency |
|---|---|
| Output Relay | (2) Wet/Dry; Wet: 12V DC, 1A; Dry: 30V DC, 1A |
| Aux Power Output | For sensor: (3) 12V DC, 1A right side total,; (3) 12V DC, 1A left side total |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| PoE Interface | (1) PoE++/PoE+++ input, 54V DC, 60W/90W; (1) PoE+ output, 54V DC, 30W |
| Max. Power Consumption | 90W |
| Battery Charge | SLA backup battery, 12V, 0.3A |
| LEDs | W/B; <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset; (2) Dry/Wet switch |
| Certifications | CE, FCC, IC |
Software
| UniFi Protect | Version 7.0.88 and later |
|---|---|
| Mobile App | UniFi Protect iOS™ version 3.3.0 and later; UniFi Protect Android™ version 3.2.0 and later |
