描述

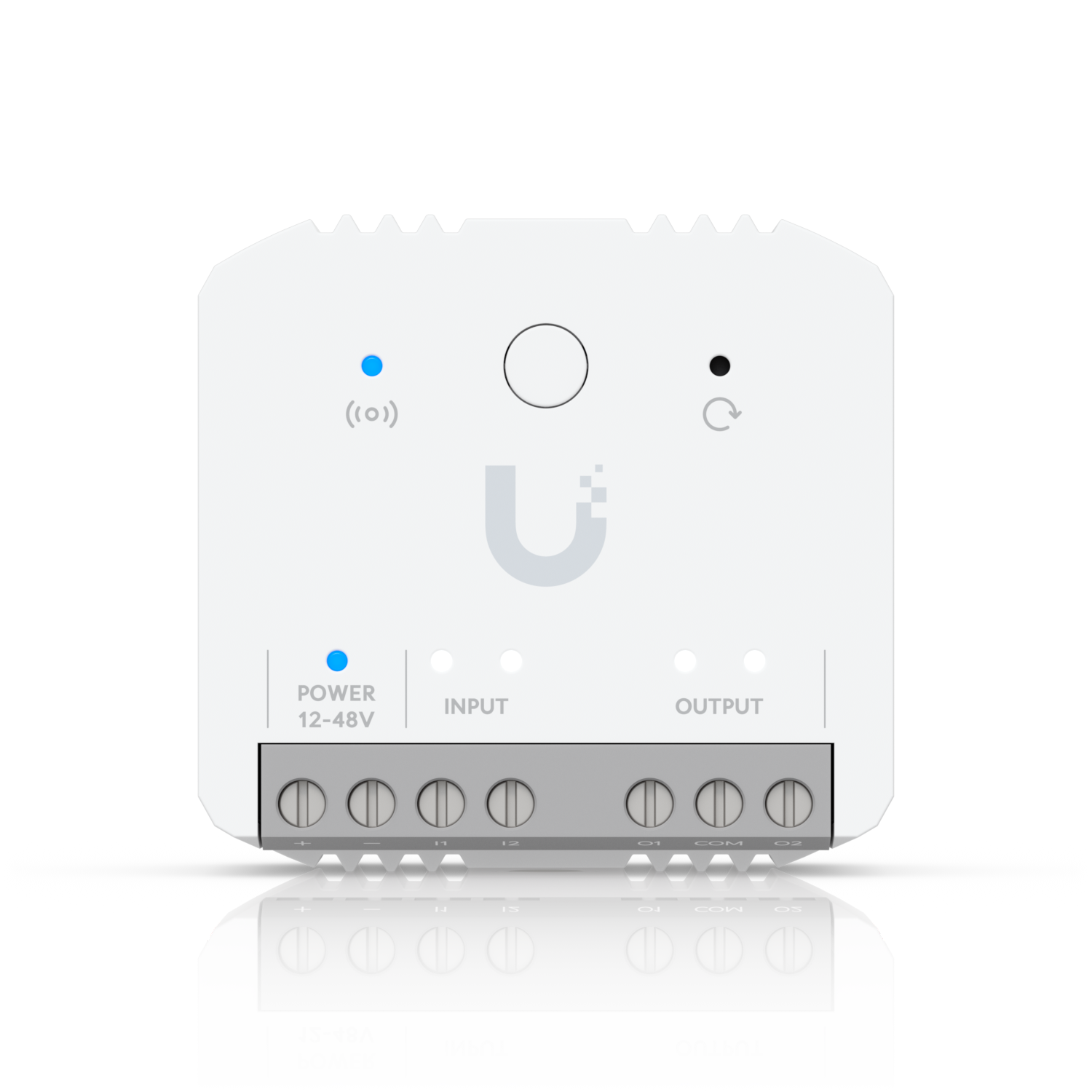

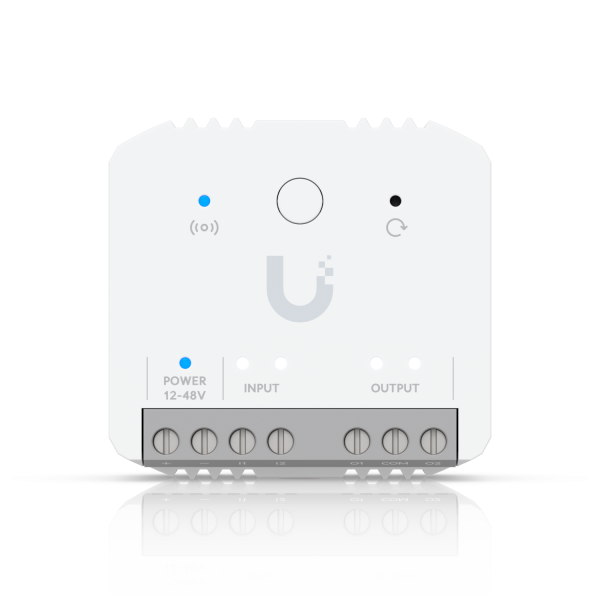

USL-Relay
Protect Relay
USL-Relay 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
Compact SuperLink relay designed with I/O interfaces for seamless integration with third-party sensors and signaling devices.
規格
Overview
| Dimensions | 50 x 47.6 x 28 mm (2 × 1.9 × 1.1") |
|---|---|
| Mounting | Adhesive, wall and DIN rail mount |
| UniFi Application Suite | Protect |
Performance
| Connectivity | SuperLink (Proprietary) |
|---|---|
| US | 915.6–927.6 MHz |
| EU | 865.1–869.5 MHz |
| SuperLink | 14 dBm |
| SuperLink | 2 km (1.2 mi) |
Hardware
| Max. Power Consumption | 0.83W |
|---|---|
| Supported Voltage Range | 12–48V DC |
| Power Method | 12V DC / 24V DC / 48V DC |
| Weight | 100 g (3.5 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Buttons | (1) Factory reset; (1) Test button |
| Output | O1/COM/O2; Dry contact only (12-48V DC, 12-240V AC); 10A/port, UL total max: 12A; IEC total max: 16A |
| Input | I1/I2 ; Dry contact only; Open/Short (GND); Integrated 5V TVS protection |
| Power | VDD/GND ; 12–48V DC, max. 48V; Integrated over-temperature protection (OTP) at 85°C (185°F) |
| LEDs | (1) LoRa, Status: RGBW; (2) Signal input, Relay output: W |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| Web Application | UniFi Protect |
|---|---|
| Mobile App | UniFi Protect iOS™ and Android™ |
