描述

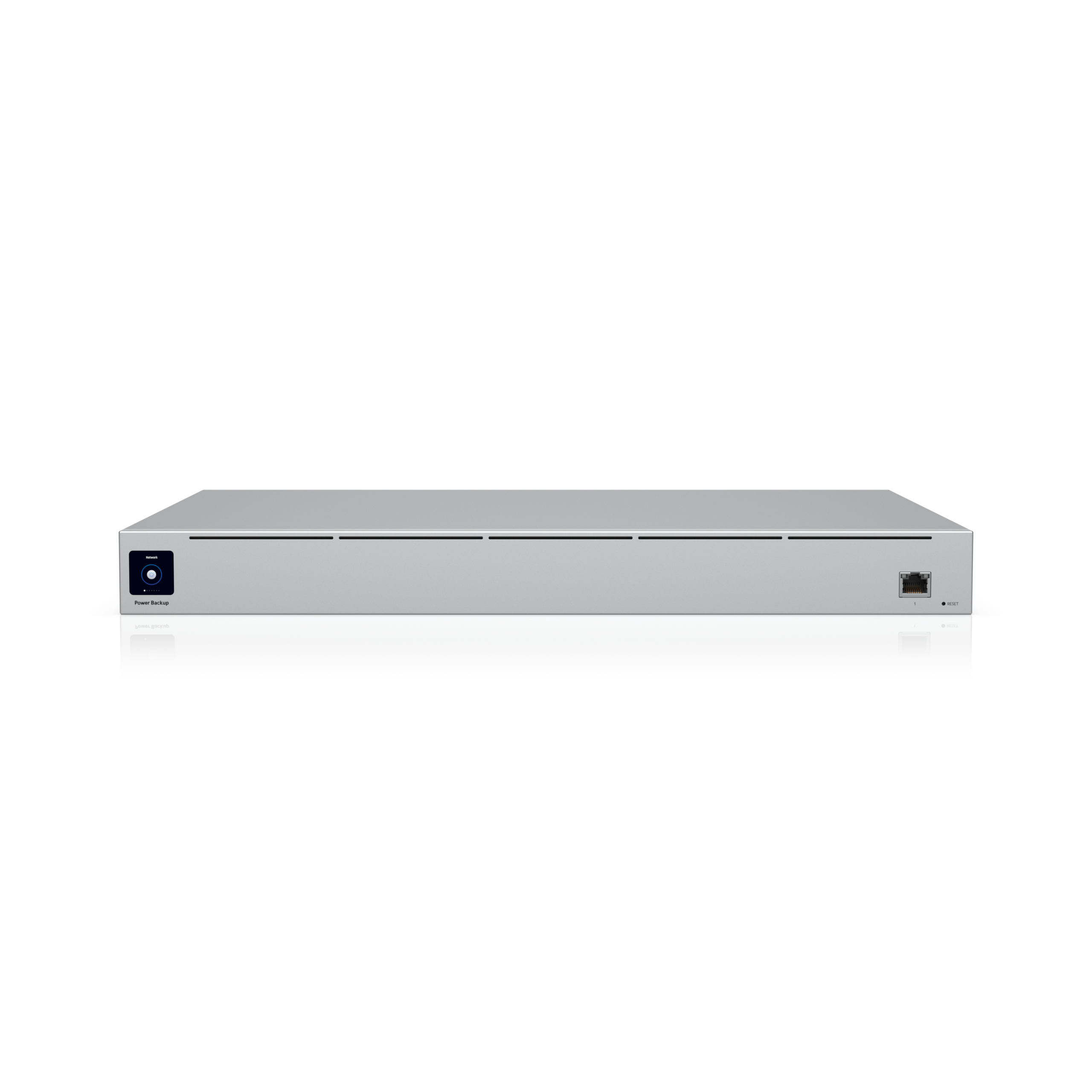

USP-RPS
Redundant Power
USP-RPS 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
950W redundant power supply for rack-mounted UniFi devices.
功能重點
- 950W DC power availability
- (6) DC SmartPower ports
- 1.3" LCM touchscreen
規格
Mechanical
| Dimensions | 442.4 x 325.6 x 43.7 mm; (17.4 x 12.8 x 1.7") |
|---|---|
| Weight | Without mount brackets : 5.5 kg (12.1 lb); With mount brackets: 5.6 kg (12.3 lb) |
| Enclosure Material | SGCC steel |
Hardware
| Management | Ethernet |
|---|---|
| Networking Interface | (1) GbE RJ45 port |
| Power Method | (1) Universal AC input, 100–240V AC |
| Power Supply | 54V DC output: AC/DC, internal, 645W; 12V DC output: AC/DC, internal, 350W |
| Supported Voltage Range | 100–240V AC |
| Max. Power Consumption | 995W |
| Power Output | (6) RPS DC ports |
| Max. Power Output | 52V DC: 11.54A (600W); 11.5V DC: 30.44A (350W) |
| Max. Output Power per RPS Port | 52V DC: 11.54A (600W); 11.5V DC: 30.44A (350W) |
| ESD/EMP Protection | Air: ± 16kV, contact: ± 12kV |
| Display | 1.3" touchscreen |
| Buttons | (1) Factory reset |
| System | Status |
| USP RPS | Activity |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
