描述

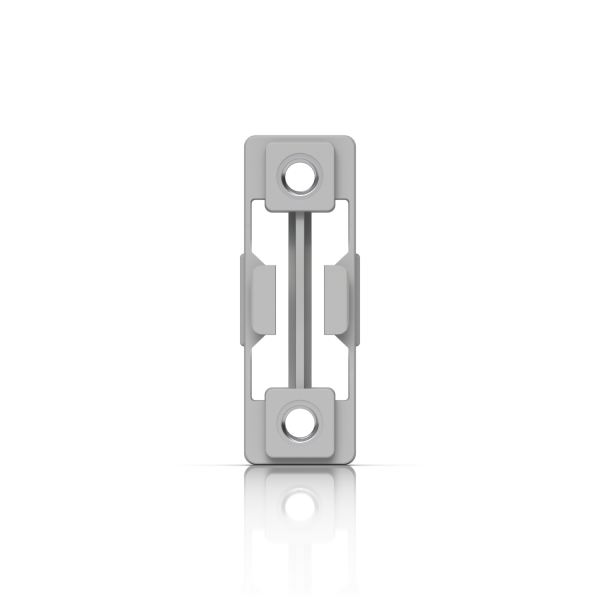

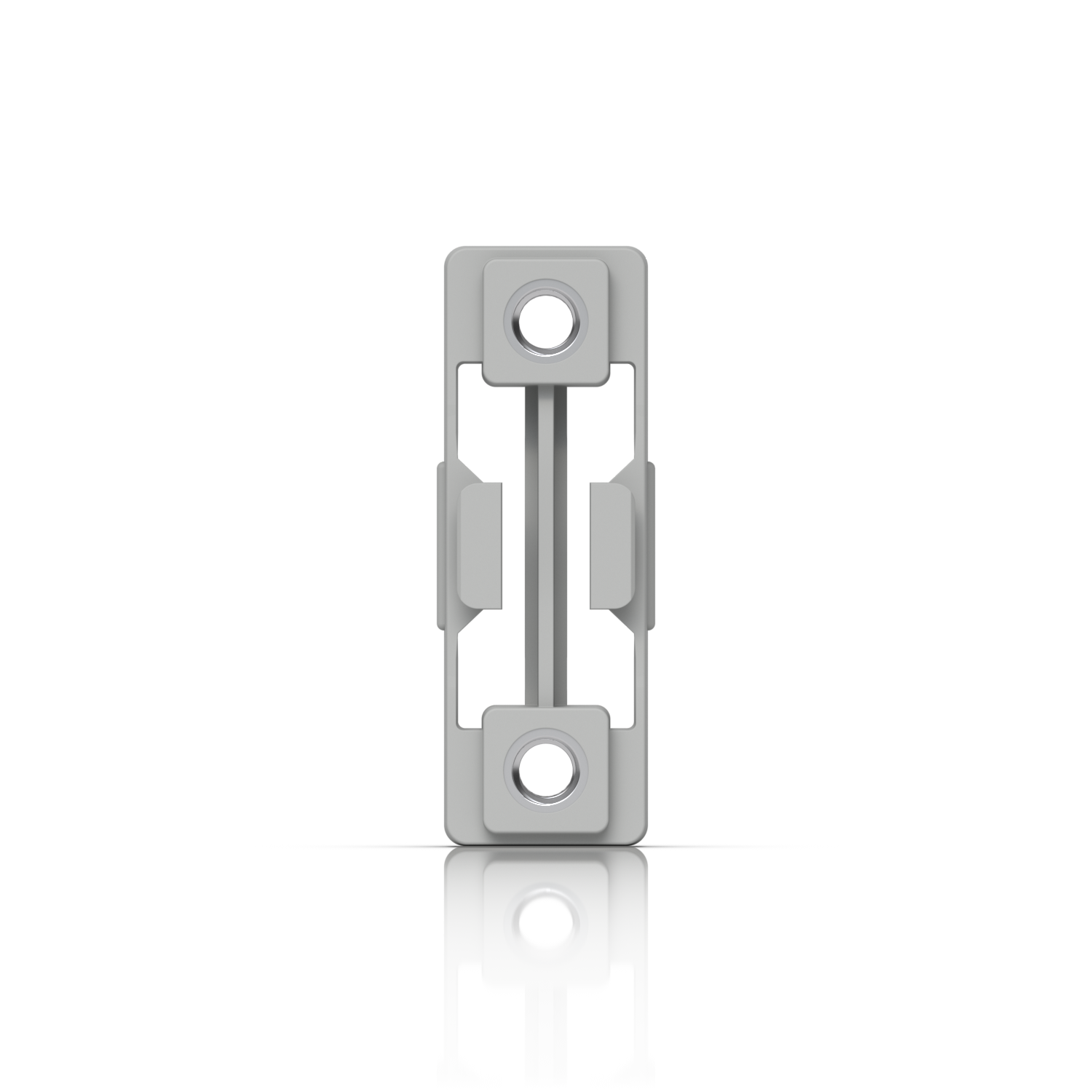

UACC-Rack-PM-Kit
SnapMount Rack Kit, 20-Pack
UACC-Rack-PM-Kit 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
1U snap-in inserts with two vertically aligned cage nuts designed to ensure uniform rack installations.
功能重點
- Easy installation and removal
- Pair multiple inserts to mount larger devices
- (20) SnapMount rack inserts per kit
規格
Overview
| Dimensions | 42.7 x 15.5 x 8.7 mm (1.7 x 0.6 x 0.34") |
|---|---|
| Weight | 4 g (0.14 oz) |
| Material | Thermoplastic (PA66) |
| Treatment | Texture |
| Rack Rail Thickness | Up to 2.2 mm (0.08") |
| Screws | #10-32 |
| Strength | SnapMount rack inserts have been tested and qualified with the following shear forces:; ; 1U: Supports devices with a depth of up to 400 mm and a maximum weight of 10 kg.; ; 2U: Supports devices with a depth of up to 325 mm and a maximum weight of 20 kg.; ; It is recommended to support installed devices from the rear if depth exceeds 400 mm for 1U or 325 mm for 2U. |
| Pack Options | 20-Pack (for 10U installation) |
