描述

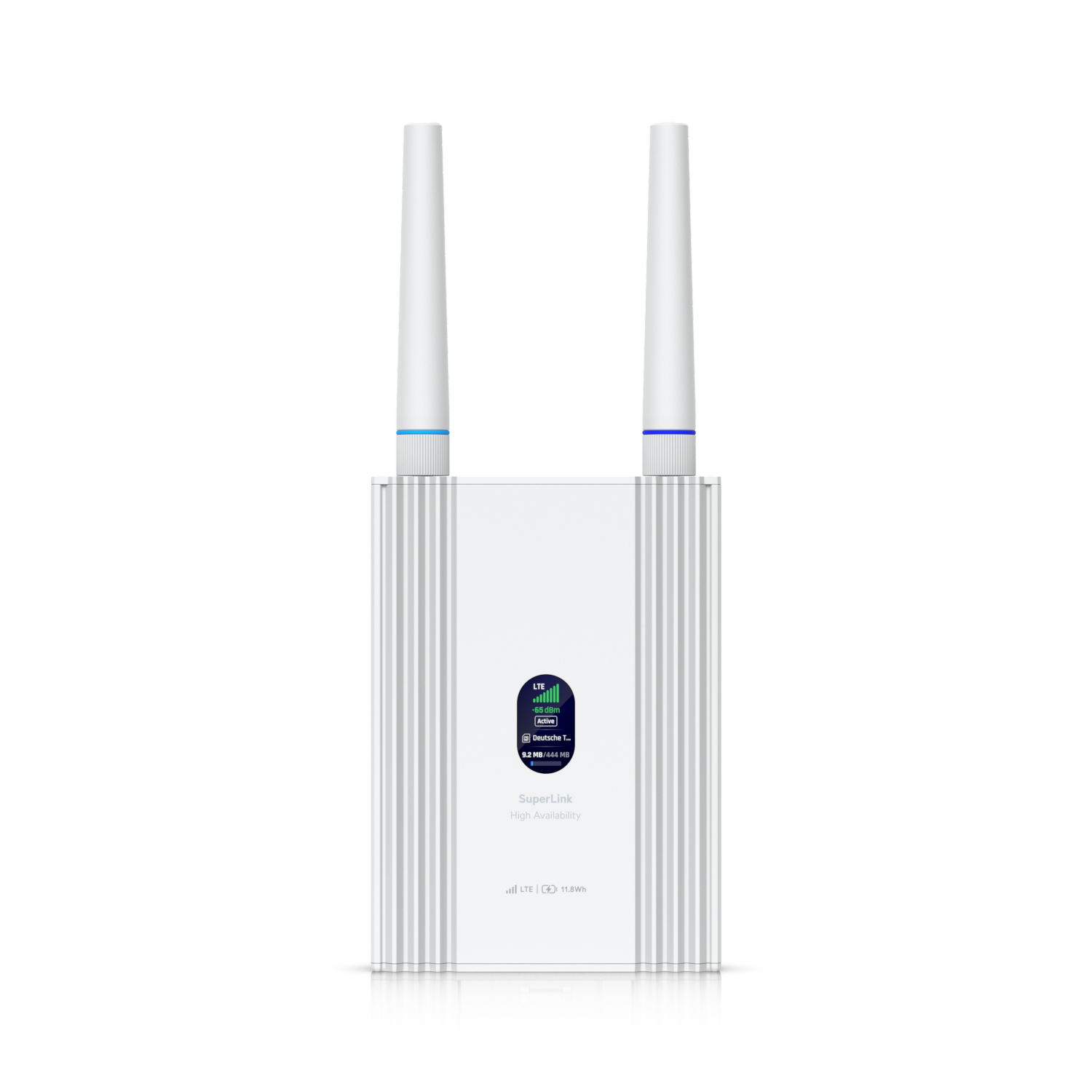

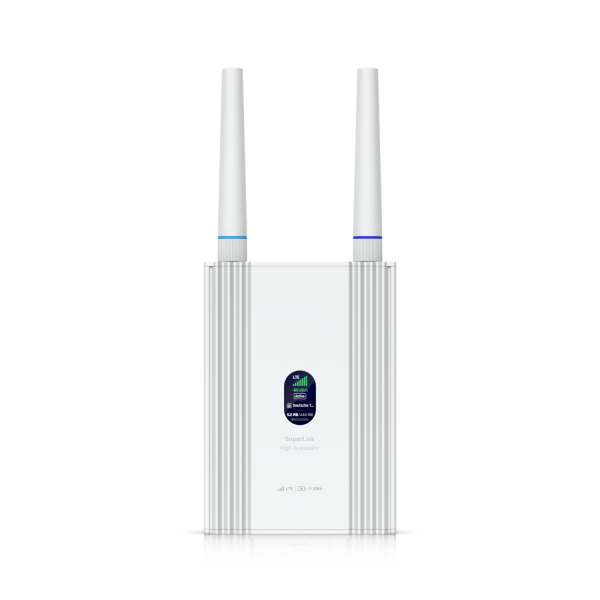

USL-G2-Gateway-HA
SuperLink Gateway HA
USL-G2-Gateway-HA 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
Proprietary super long-range, low-latency wireless gateway for SuperLink Sensors with LTE connectivity and built-in battery for power backup.
規格
Overview
| Dimensions | With antenna:; 206 x 85 x 25.6 mm ( 8.1 x 3.4 x 1"); With DIN rail mount: ; 206 x 85 x 38.1 mm ( 8.1 x 3.4 x 1.5"); With wall mount:; 206 x 85 x 30.3 mm ( 8.1 x 3.4 x 1.2") |
|---|---|
| Mounting | Wall and Din rail mount |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | (1) 10/100 MbE RJ45 port |
|---|---|
| Connectivity | SuperLink (Proprietary) |
| Bluetooth | 2400–2480 MHz |
| SuperLink | US: 915.6–927.6 MHz; EU: 865.1–869.5 MHz |
| Bluetooth | 3 dBi |
| SuperLink | 1 dBi |
| Bluetooth | 10 dBm |
| SuperLink | 27 dBm |
| Bluetooth | Up to 100 m (328 ft) |
| SuperLink | 2 km (1.2 mi) |
| Bluetooth | 128 |
| SuperLink | 96 |
Hardware
| Max. Power Consumption | 6.5W |
|---|---|
| Power Method | PoE; USB Type-C, 5V, 2A; External DC in: 12V, 1A |
| Battery Life | 2.2 h |
| Weight | 380 g (13.4 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| Antenna Connector | (1) SuperLink: RP-SMA female; (1) Mobile: SMA female |
| Buttons | (1) Factory reset |
| Display | 1.14" status display |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| Web Application | UniFi Protect |
|---|---|
| Mobile App | UniFi Protect iOS™ and Android™ |
