描述

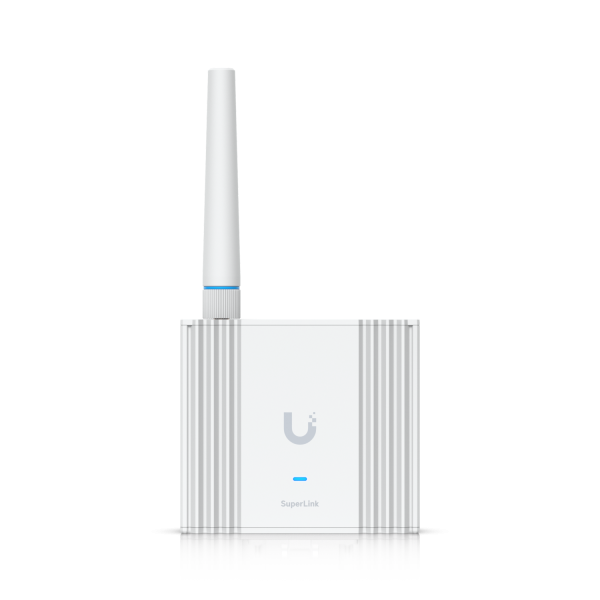

USL-Gateway
SuperLink Gateway
USL-Gateway 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
Proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.
SuperLink Setup Guide
Note. Long-range BLE coverage is comparable to WiFi coverage.
規格
Overview
| Dimensions | With antenna:; 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1"); With DIN rail mount: ; 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5"); With wall mount:; 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
|---|---|
| Mounting | Wall and DIN rail mount |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | (1) 10/100 MbE RJ45 port |
|---|---|
| Connectivity | Bluetooth® 5.2; SuperLink (Proprietary) |
| Bluetooth | 2400–2480 MHz |
| SuperLink | US: 915.6–927.6 MHz; EU: 865.1–869.5 MHz; JP: 920.5–922.3 MHz |
| Bluetooth | 3 dBi |
| SuperLink | 2 dBi |
| Bluetooth | 10 dBm |
| SuperLink | 27 dBm |
| Bluetooth | Up to 100 m (328 ft) |
| SuperLink | 2 km (1.2 mi) |
| Bluetooth | 7 |
| SuperLink | 96 |
Hardware
| Max. Power Consumption | 3.4W |
|---|---|
| Power Method | PoE; USB Type-C, 5V, 1A (Optional) |
| Weight | 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| Antenna Connector | (1) RP-SMA female |
| Buttons | (1) Factory reset |
| LEDs | (1) Status: B/W |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| Web Application | UniFi Protect |
|---|---|
| Mobile App | UniFi Protect iOS™ and Android™ |
