描述

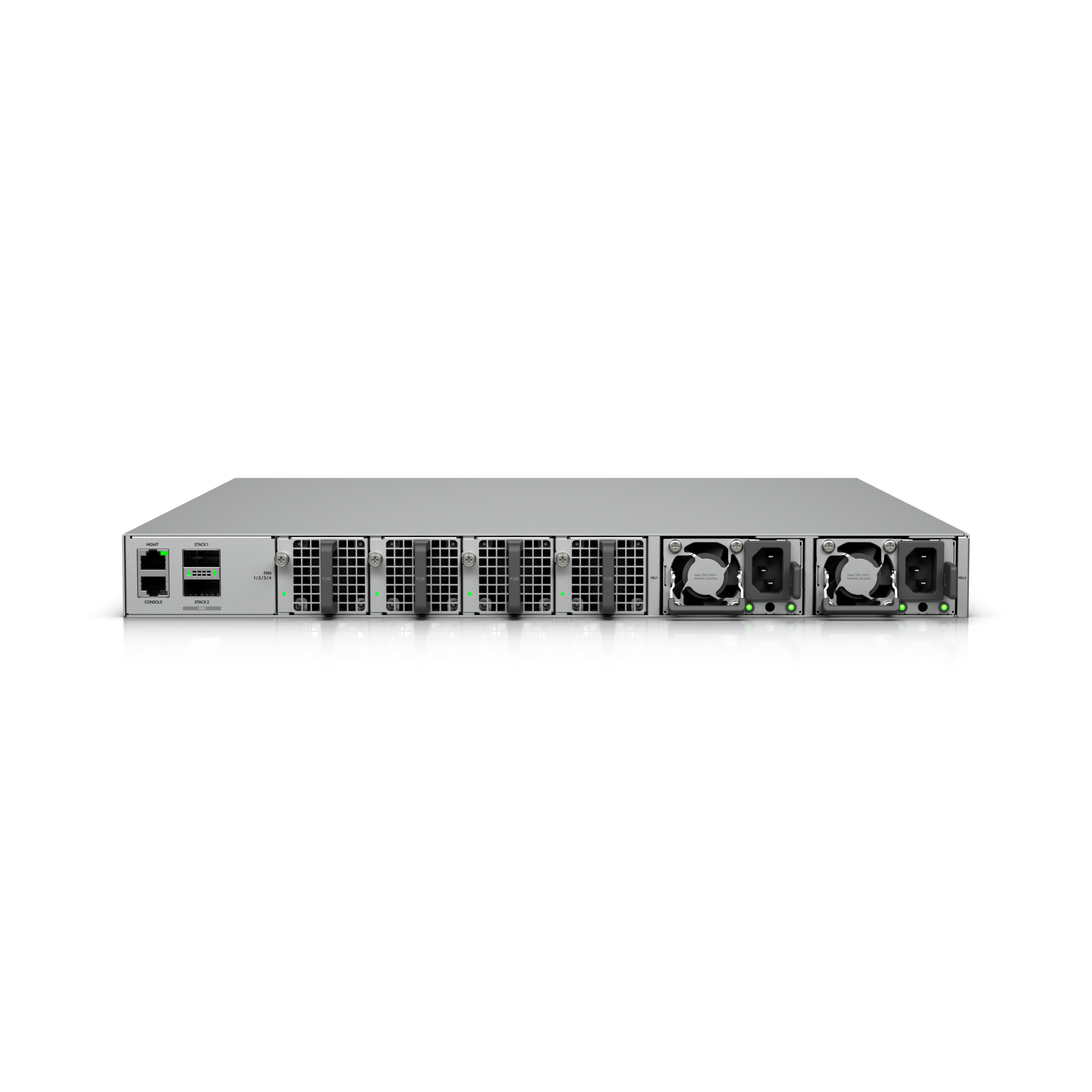

ECS-24S-PoE (1050W)
Switch Enterprise Campus 24S PoE
ECS-24S-PoE (1050W) 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
Note. Recommend being paired with Enterprise Campus Aggregation. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.
規格
Overview
| Dimensions | 442.4 x 44 x 496 mm; (17.4 x 1.7 x 19.5") |
|---|---|
| 1 GbE RJ45 | 1; (1G/100M/10M) |
| 2.5 GbE RJ45 | 8 (All PoE+++); (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 16 (All PoE+++); (10G/5G/2.5G/1G/100M/10M) |
| 25G SFP28 | 4; (25G/10G/1G) |
| 100G QSFP28 | 2; (100G) |
| Console | 1 |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 100-240V AC Shared Mode: 1,050W with (2) 600W modules; 100-240V AC Redundant Mode: 450W with (2) 600W modules; ; 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules; 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules; 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules; 100-120V AC Redundant Mode: 850W with (2) 1,200W modules |
| Redundancy | Switch Stacking; (2) Hot-Swappable PSUs; (4) Hot-Swappable Fans |
| Form Factor | Rack Mount (1U, Full-Depth) |
Performance
| Switching Capacity | 460 Gbps |
|---|---|
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| IPv4 | 256 |
| MAC | 256 |
Layer 3 Features
Layer 2 Features
Hardware
| PoE+++ | 24 |
|---|---|
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| PoE+++ | 90W |
| Max. Power Consumption | 150W (Excluding PoE Output); 2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 600W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet; OOB Management port; Serial Console; AR |
| Heat Dissipation | 512 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb); With mounting brackets: 9.3 kg (20.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks; Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) Hot-swappable fan modules |
| ESD Protection | Air: ± 12kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| UniFi Network | Version 10.6.101 and later |
|---|
