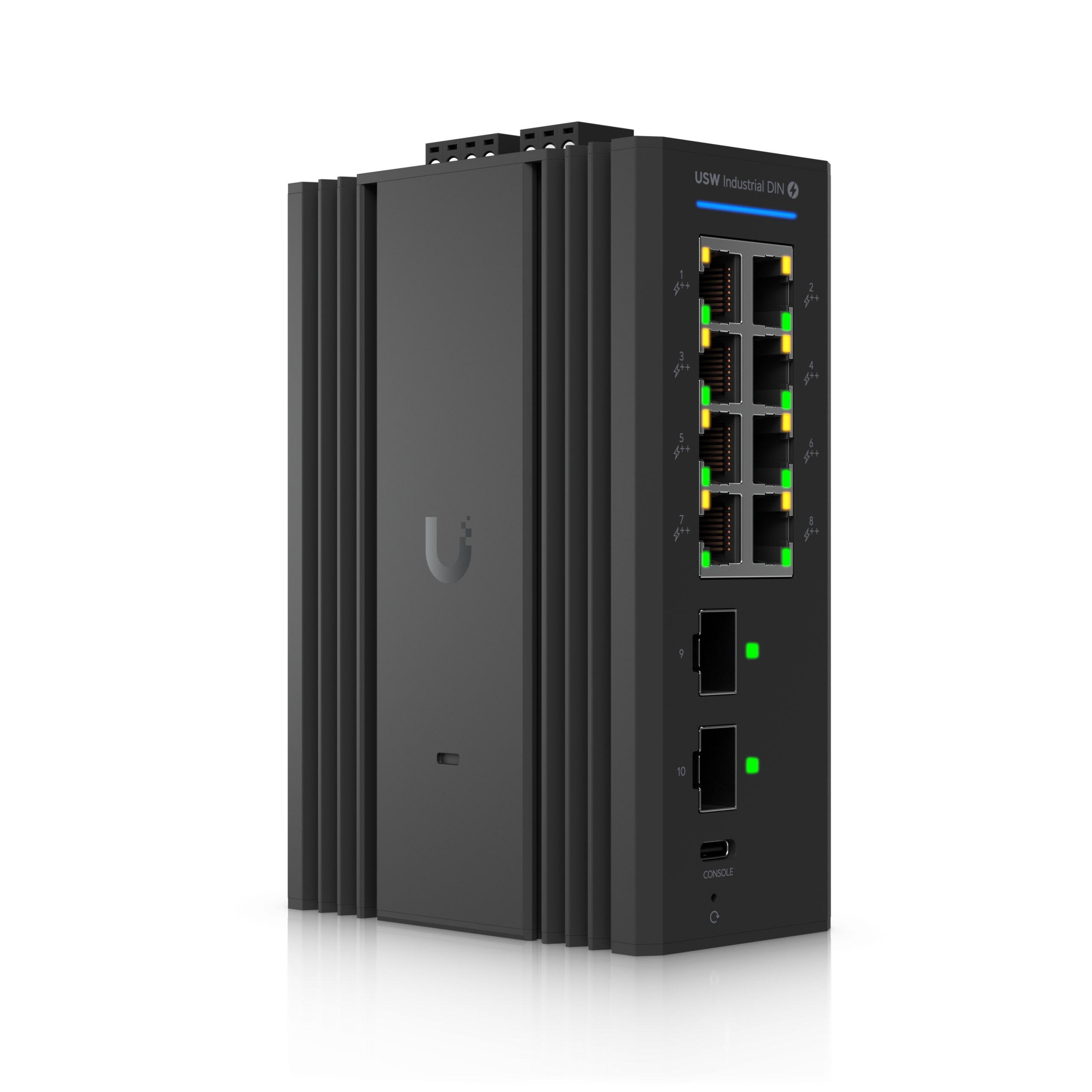

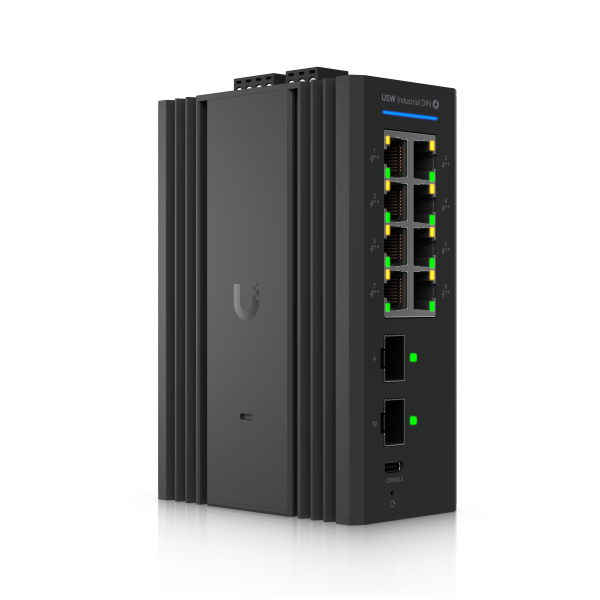

USW-Industrial-DIN-8-PoE (480W)
Switch Industrial DIN 8 PoE
USW-Industrial-DIN-8-PoE (480W) 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Robust, industrial-grade 8-port GbE PoE++ switch with dual SFP ports, DIN-rail mounting and power redundancy.
Note. Power supply not included; please use a 44–57V 500W+ power supply for full PoE++ output.
規格
Overview
| Dimensions | 139 x 100 x 52 mm ; (5.5 x 3.9 x 2.1") |
|---|---|
| 1 GbE RJ45 | 8 (All PoE++) |
| 1G SFP | 2 |
| Console | 1 |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | Max. 480W |
| Redundancy | (2) DC inputs |
| Form Factor | Compact DIN rail and wall-mountable |
Performance
| Switching Capacity | 20 Gbps |
|---|---|
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| IPv4 | 128 |
| MAC | 128 |
Layer 2 Features
Hardware
| PoE++ | 8 |
|---|---|
| PoE++ | 60W |
| Max. Power Consumption | 12W (Excluding PoE Output); 492W (Including PoE Output) |
| Power Method | (2) 2-pin DC inputs with terminal block |
| Power Input Method | DC input |
| Supported Voltage Range | 44–57V DC |
| Management | Ethernet; Serial Console |
| Weight | Without mount: 910 g (2 lb); With plastic mount: 930 g (2.1 lb) |
| Enclosure Material | Aluminum |
| Mount Material | Polycarbonate |
| ESD Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
