描述

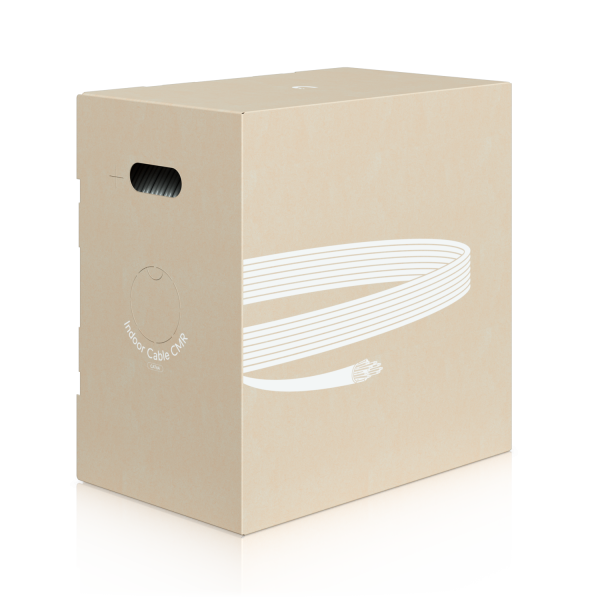

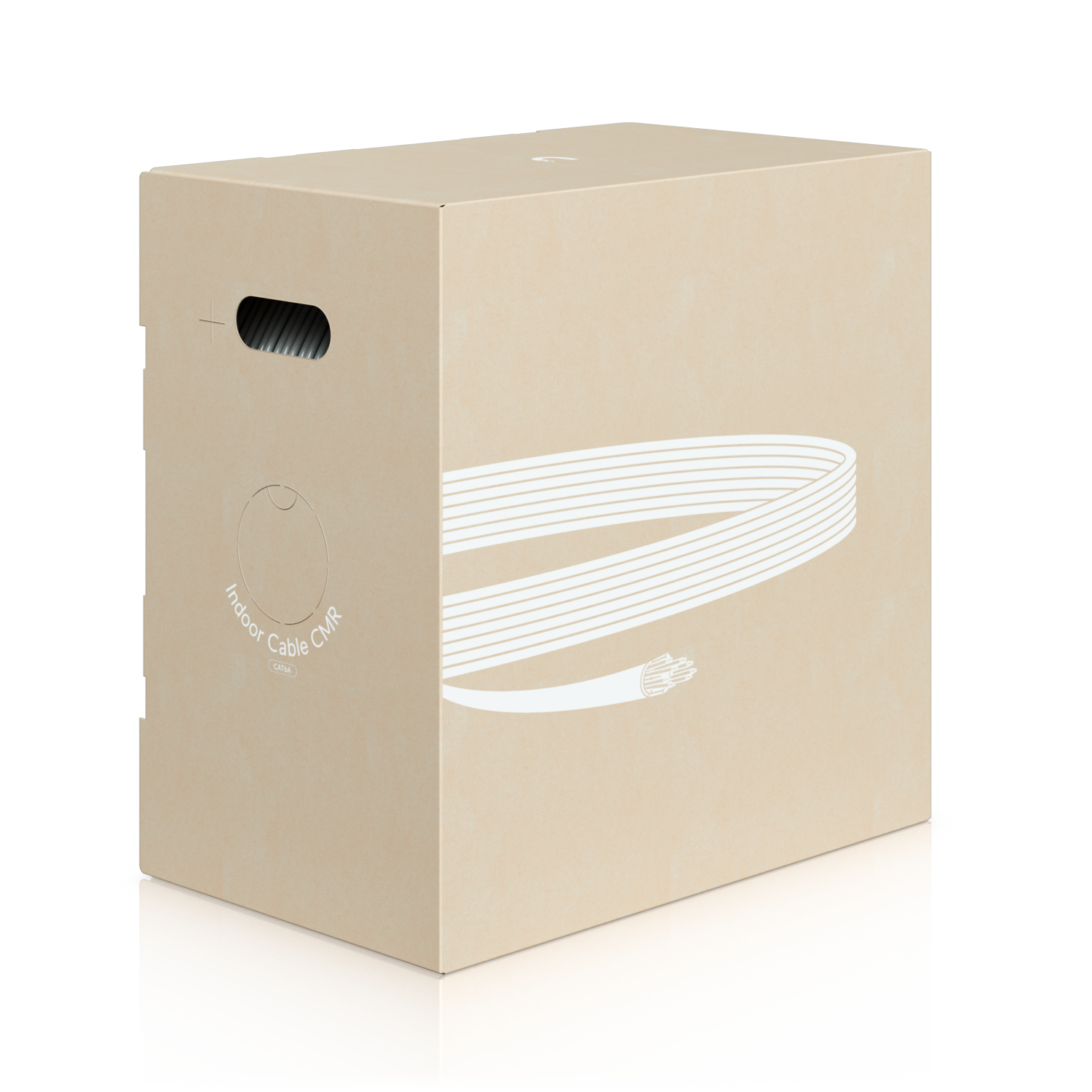

UACC-Cable-C6A-CMR
UniFi Indoor Cable Cat6A CMR
UACC-Cable-C6A-CMR 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Category 6A Ethernet cable for high-speed, indoor deployments.
功能重點
- Category 6A UTP communications multipurpose cable
- Riser (CMR)-rated, fire-resistant jacket
- Anti-crosstalk divider
- Cable length 305 m
規格
Overview
| Length | 305 m (1,000 ft) |
|---|---|
| Type | Category 6A |
| Flame Rating | CMR |
| Operating Environment | Indoor |
| Box Dimensions | 494 x 302 x 481 mm; (19.4 x 11.9 x 18.9") |
| Box Weight | 19.3 kg (42.5 lb) |
| Jacket Color | White |
| Jacket Diameter | 7.05 ±0.2 mm |
| Jacket Material | Flame retardant polyvinyl chloride (FRPVC) |
| Shielding Type | UTP |
| Conductor Type | Solid bare copper |
| Conductor Wire Gage | 23 AWG |
| Bend Radius | Min. 28.2 mm (1.11 '') |
| Twisting | 4 Twisted pairs with color code.; Pair 1: white / blue; Pair 2: white-orange / orange; Pair 3: white / green; Pair 4: white-brown / brown |
| Electrical Transmission | ANSI/TIA -568.2-D; ISO/IEC 11801-1 (Edition 2.2); IEC 61156-5 (Edition 2.1) |
| Flame Test | UL 1666 (CMR) |
| Material and Construction | UL 444; CSA 22.2 NO.214; EU Directive 2011/65/EU (RoHS2); EU Directive 2006/95/EC (LVD) |
| Installation Temperature | 0 to 60°C (32 to 140°F) |
| Ambient Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Operating Temperature | -20 to 75°C (-4 to 167°F) |
