描述

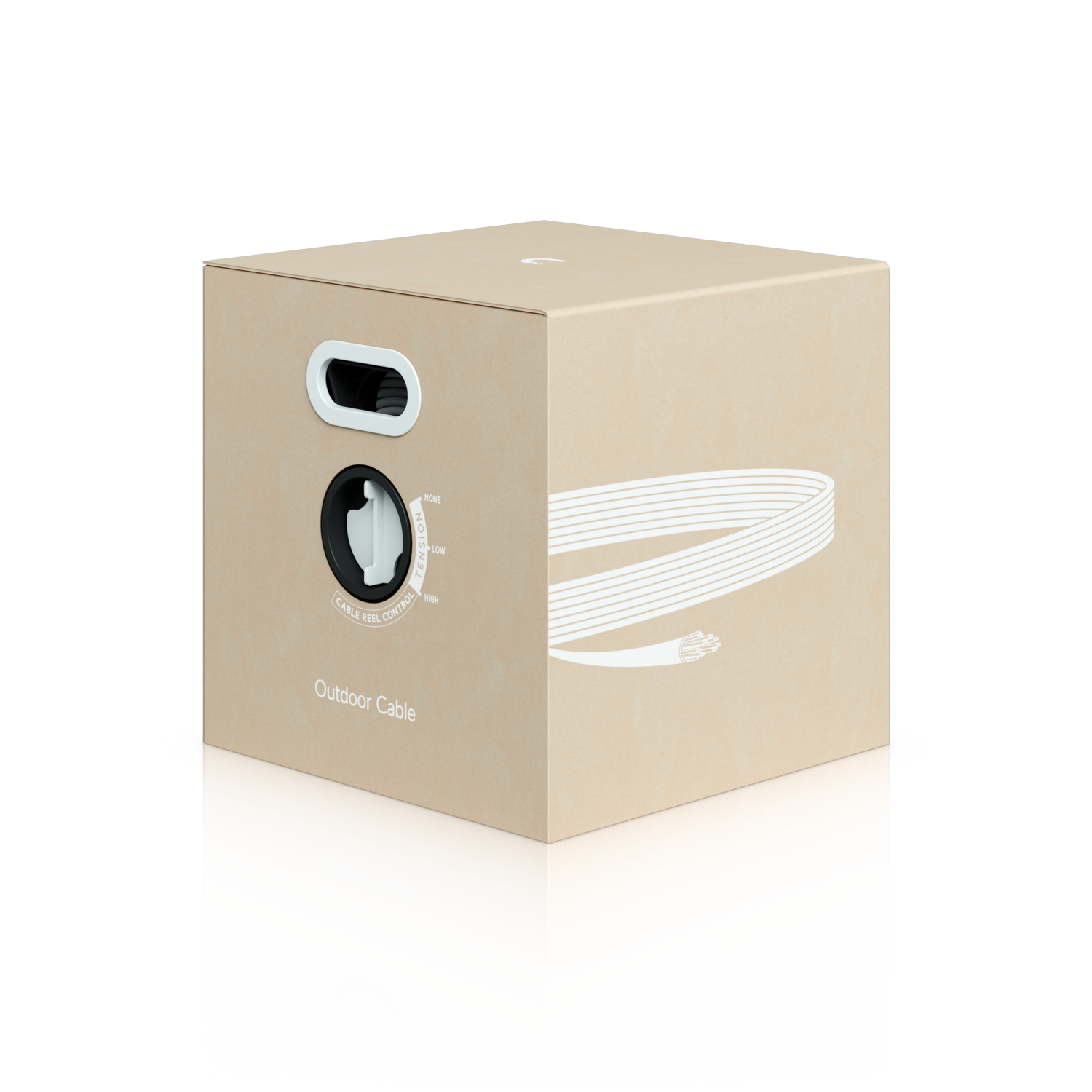

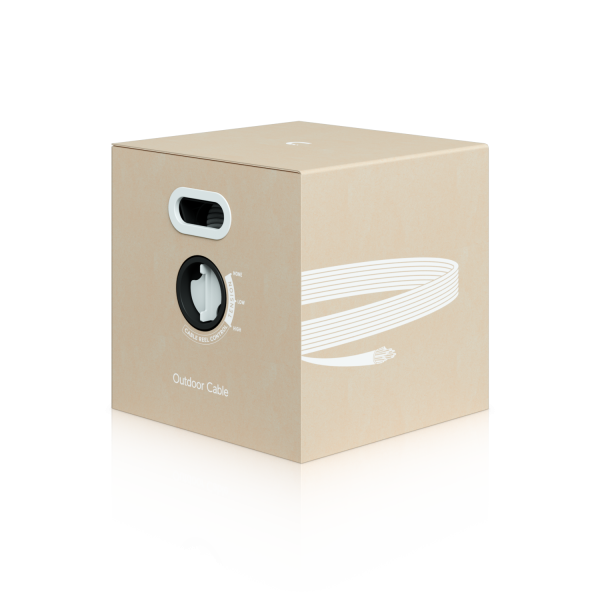

UACC-Cable-C5e-Outdoor-Pro-305M-W
UniFi Outdoor Cable
UACC-Cable-C5e-Outdoor-Pro-305M-W 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Outdoor Category 5e cable designed to resist harsh weather damage and electromagnetic interference.
功能重點
- Category 5e cable
- Insulated, weatherproof jacket
- Cable length 305 m
規格
Overview
| Length | 305 m (1,000 ft) |
|---|---|
| Type | Category 5e |
| Flame Rating | VW-1 (UL1581) |
| Operating Environment | Outdoor |
| Box Dimensions | 358 x 341 x 352 mm ; (14.09 x 13.43 x 13.86") |
| Box Weight | 14.2 kg (31.32 lb) |
| Jacket Color | White |
| Jacket Diameter | 6 mm (0.24") |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Shielding Type | F/UTP |
| Conductor Type | Solid bare copper |
| Conductor Wire Gage | 24 AWG |
| Bend Radius | Min. 48 mm (1.89 '') |
| Twisting | 4 Twisted pairs with color code.; Pair 1: white-blue / blue; Pair 2: white-orange / orange; Pair 3: white-green / green; Pair 4: white-brown / brown |
| Electrical Transmission | TIA/EIA-568-B.2 |
| Flame Test | UL1581 (VW-1) |
| UV Resistance | ASTM G 151/154 |
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
| Ambient Storage Temperature | -40 to 80°C (-40° to 176°F) |
| Ambient Operating Temperature | -30 to 75°C (-22°F to 167°F) |
