描述
UACC-Cable-Patch

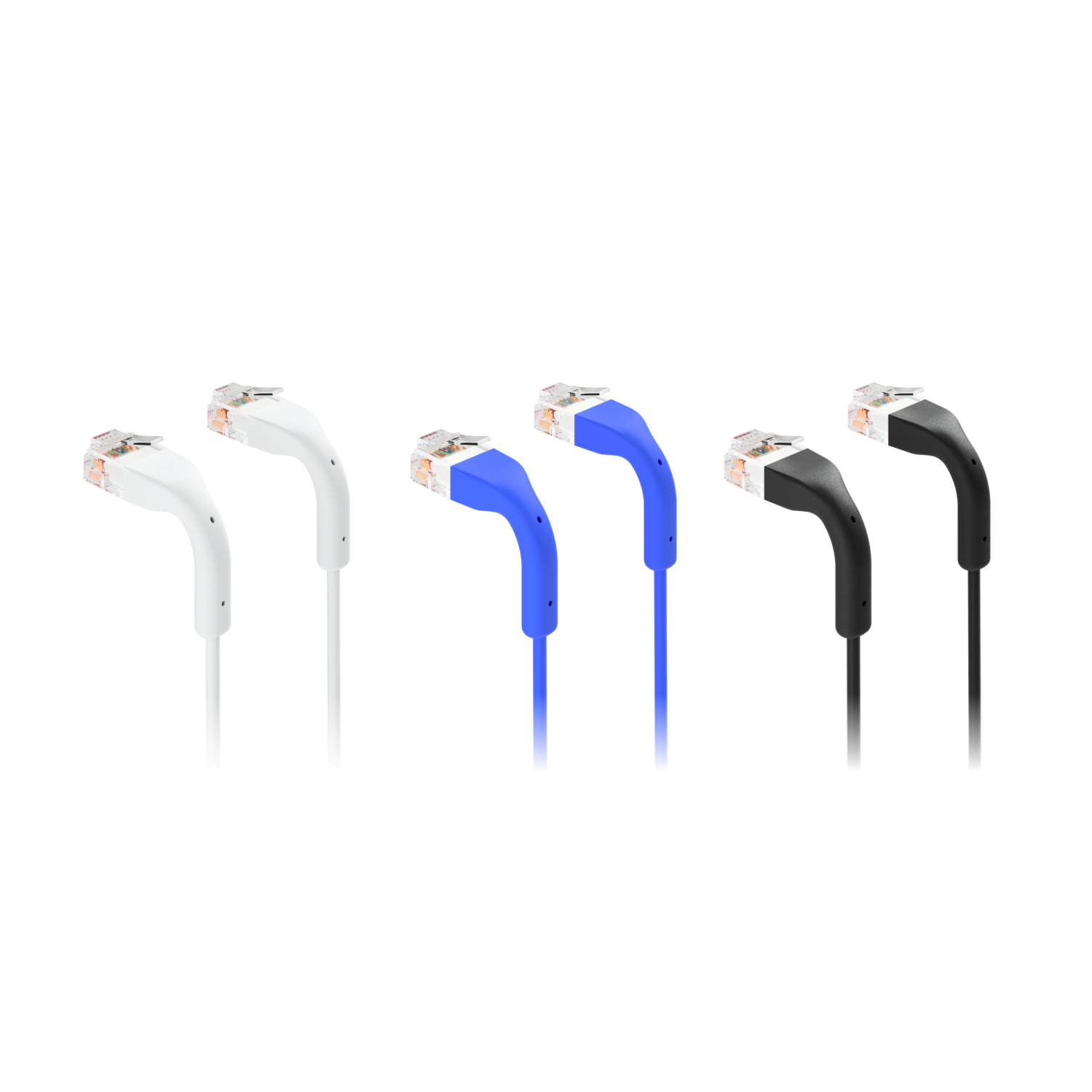

UniFi Patch Cable (10 GbE)
UACC-Cable-Patch 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Ultra-thin patch cable with up to 10 GbE support and flexible, bendable boots for enhanced installation versatility.
功能重點
- Bendable booted RJ45
- 2.5/2.9 mm outer diameter
- Cable length: 0.2 to 15 m
規格
Overview
| Available Lengths | End-to-end: 0.2, 0.4, 1, 2, 3, 5, 8, 12, 15 m; (0.7, 1.3, 3.3, 6.6, 9.8, 16.4, 26.2, 39.4, 49.2 ft) |
|---|---|
| Available Colors | White, Blue, Black |
| Pack Options | Single Unit (0.2, 0.4, 1, 2, 3, 5, 8, 12, 15 m); 10-Pack ( 0.2, 0.4, 1, 2, 3 m); 24-Pack (0.2, 0.4, 1, 2 m); 50-Pack (0.2, 0.4 m) |
| Supported Data Rate | 10 GbE |
| Supported PoE Type | Up to PoE+++ |
| Connector | (2) Bendable booted RJ45 |
| Operating Environment | Indoor |
| Jacket Diameter | 0.2–8 m (0.7–26.2 ft): 2.5 mm (0.1"); 12–15 m (39.4–49.2 ft): 2.9 mm (0.11") |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Shielding Type | UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gage | 0.2–8 m (0.7–26.2 ft): 34 AWG; 12–15 m (39.4–49.2 ft): 32 AWG |
| Bendable Boot | Max. ±90° / ±45° (vertical/horizontal) |
| Bend Radius | 0.2–8 m (0.7–26.2 ft): Min. 21 mm (0.83"); 12–15 m (39.4–49.2 ft): Min. 24 mm (0.94") |
| Flame Rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
| Ambient Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Operating Temperature | -20 to 60°C (-4 to 140°F) |
