描述
UACC-Cable-Patch-Outdoor

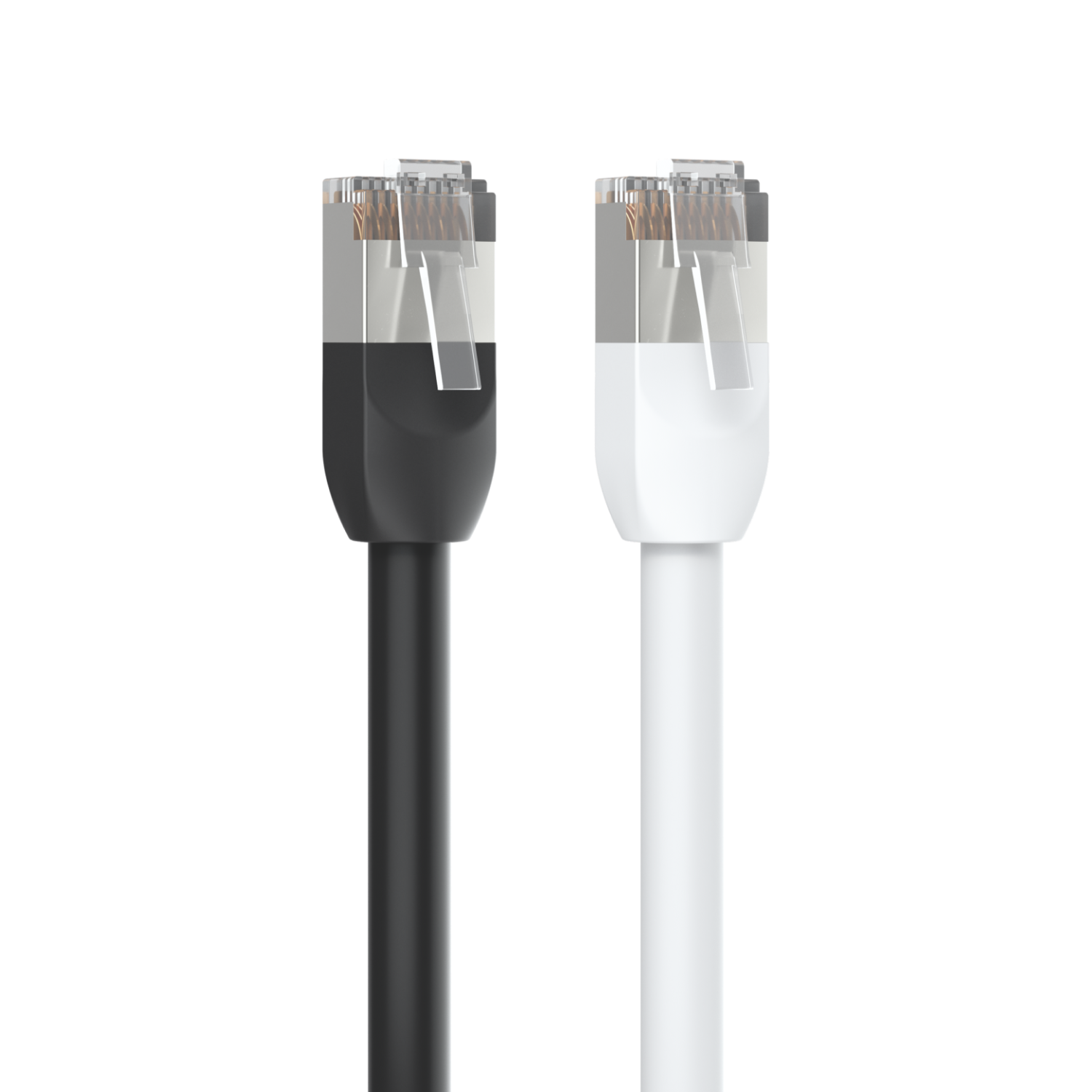

UniFi Patch Cable Outdoor
UACC-Cable-Patch-Outdoor 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Rugged, outdoor patch cable designed to function in the harshest environments.
功能重點
- Shielded RJ45
- Insulated, weatherproof jacket
- Internal foil shielding and drain wire for increased ESD damage protection
- Cable length: 1 to 8 m
規格
Overview
| Available Lengths | 1, 2, 3, 5, 8 m; (3.3, 6.6, 9.8, 16.4, 26.3 ft) |
|---|---|
| Available Colors | White, Black |
| Pack Options | Single Unit |
| Supported Data Rate | GbE |
| Supported PoE Type | Up to PoE+++ |
| Connector | (2) Shielding RJ45 |
| Operating Environment | Outdoor |
| Jacket Diameter | 6.3 mm (0.25") |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Shielding Type | S/FTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gage | 24 AWG |
| Bend Radius | Min. 50.4 mm (1.98'') |
| UV Resistance | ASTM G 151/154 |
| Flame Rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
| Installation Temperature | -20 to 60°C (-4 to 140°F) |
| Ambient Storage Temperature | -40 to 80°C (-40 to 176°F) |
| Ambient Operating Temperature | -30 to 75°C (-22 to 167°F) |
