U-PoE+

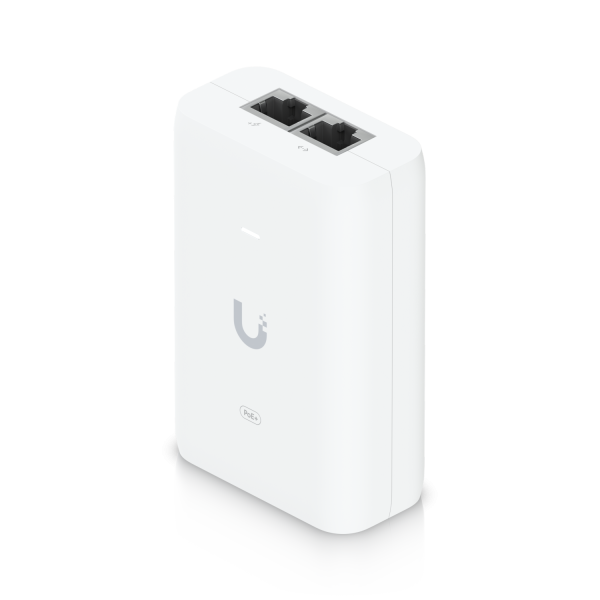

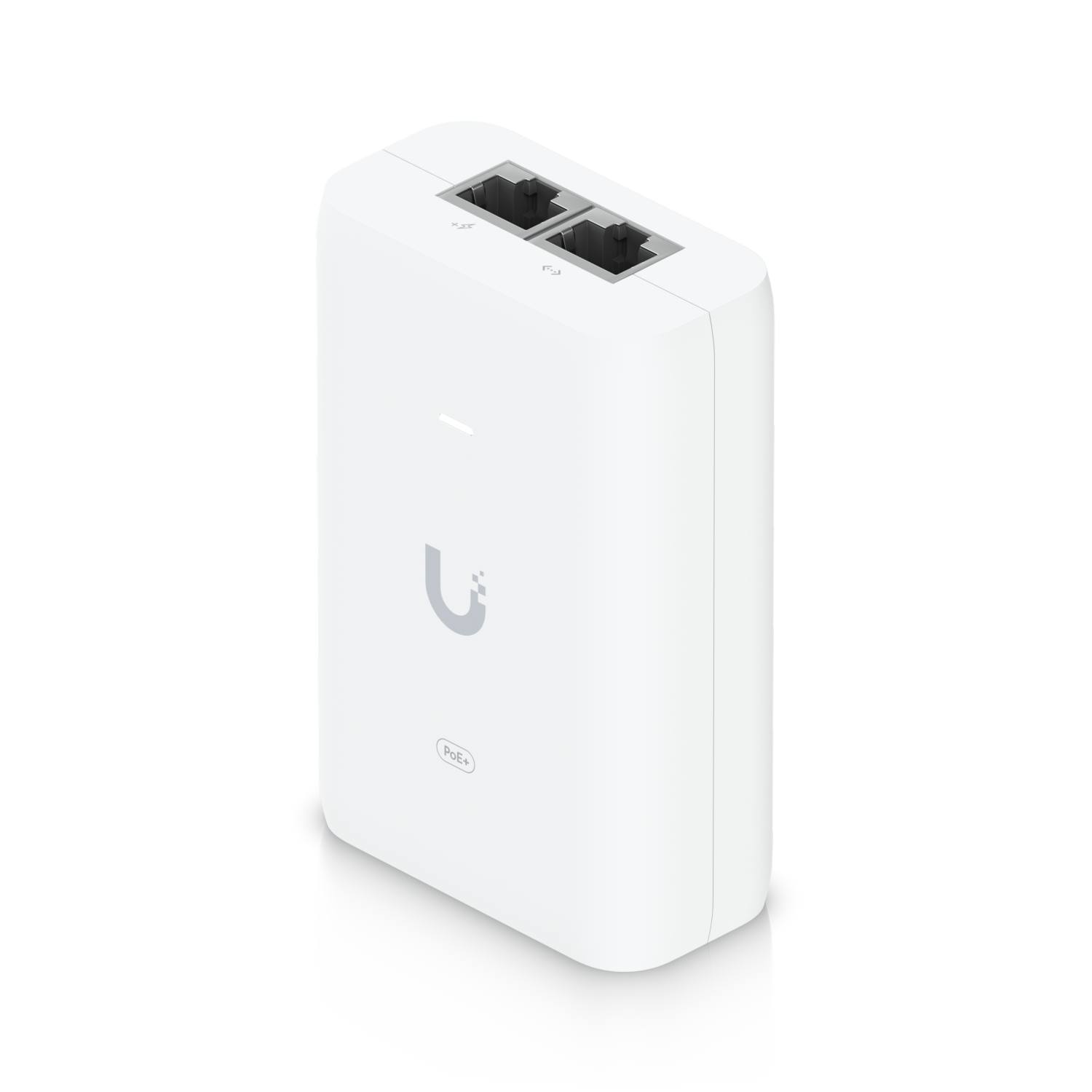

UniFi PoE+ Adapter (30W)
U-PoE+ 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
功能重點
- Delivers up to 30W of PoE+
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE+ output
- LED indicator for status monitoring
規格
Overview
| Dimensions | 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") |
|---|---|
| Weight | 156 g (5.5 oz) |
| Power Cable | Included |
| Output Voltage | 48V DC @ 0.65A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| 2-pair Powering | Pins 4, 5 (+) and 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Clamping Protection | 11V Data, 60V power |
| Data In / PoE | RJ45 Shielded Socket |
| Input Current | 0.75A Max. |
| Inrush Current | <100A peak at 26°C |
| Efficiency | 87% |
| Switching Frequency | 70 kHz Max. |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, CCC |
