描述
UPL-Port

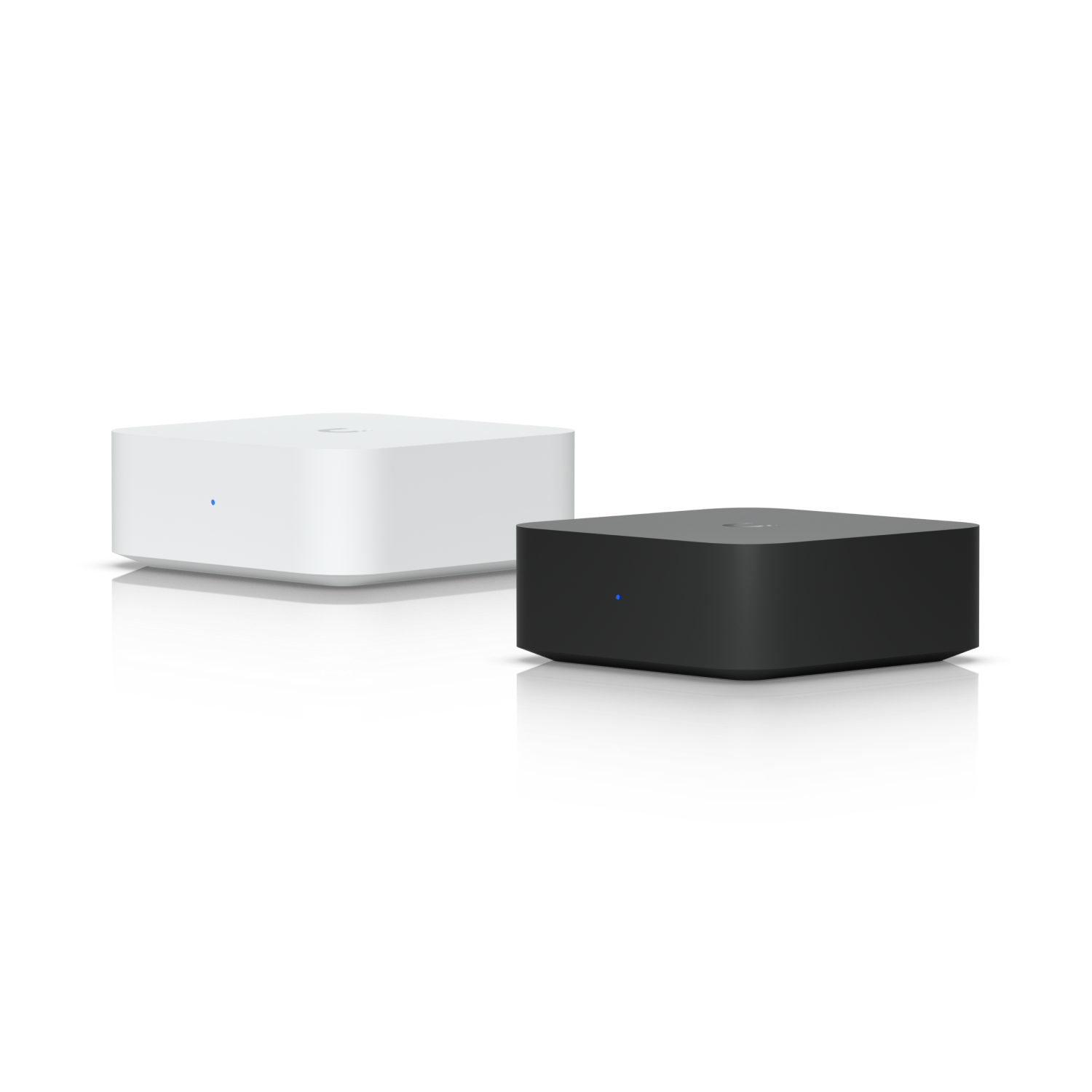

UniFi PoE Audio Port
UPL-Port 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
A digital audio streamer with an ultra-compact, versatile design and an intuitive control system, supporting multiple music streaming services and scalable multi-zone installations.
規格
Mechanical
| Dimensions | 109 x 109 x 40.5 mm ; (4.3 x 4.3 x 1.6") |
|---|---|
| Weight | 250 g (8.5 oz) |
| Enclosure Material | Polycarbonate |
| Mounting | Compact Desktop |
| Available Colors | Black; White |
Audio
| Output | Mono / Stereo sound |
|---|---|
| Surround Format | PCM |
| Zone | Up to 32 PowerAmps and PoE Audio Ports |
| Audio Input | (2) RCA analog inputs L/R; (1) HDMI eARC input; (1) Optical In; (1) USB-C versatile port |
| Audio Output | (2) RCA analog outputs L/R; (1) Optical Out; (1) USB-C versatile port |
| Streaming | AirPlay, Google Cast, Spotify Connect, Soundtrack Your Brand |
Hardware
| Networking Interface | (1) 10/100 MbE RJ45 port |
|---|---|
| WiFi Standards | 802.11 a/b/g/n/ac/ax |
| Connectivity | WiFi 2.4G, BW 20/40 MHz; WiFi 5G, BW 20/40/80 MHz |
| Power Method | (1) AC/DC adapter, 12V DC (Included); (1) PoE |
| Max. Power Consumption | 10W |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE, Anatel: 07624-25-08356 |
Software
| Application Requirements | UniFi Play iOS™ and Android™: Version 2.0.0 and later |
|---|
