UACC-Cable-Patch-EL-C6A

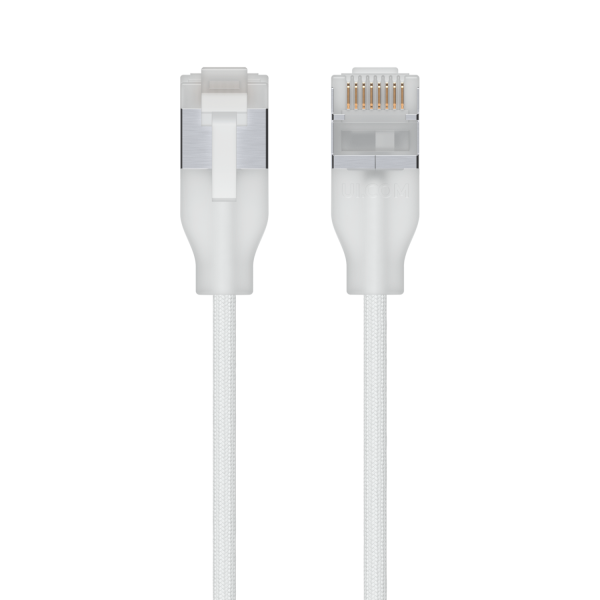

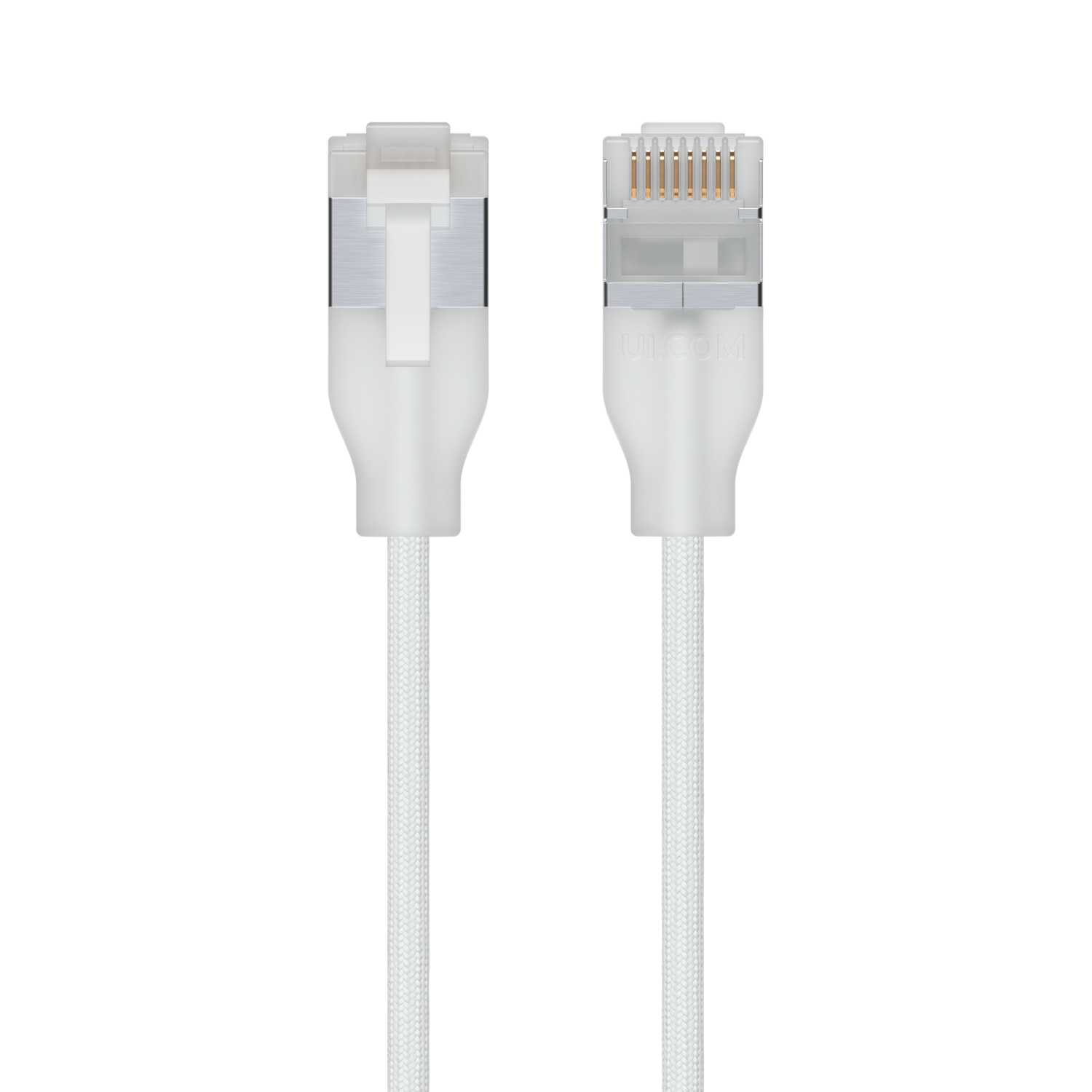

UniFi Premium Patch Cable
UACC-Cable-Patch-EL-C6A 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
Ultra-thin braided patch cable, designed and optimized for 10 GbE networking.
功能重點
- Translucent booted RJ45 for optimal Etherlighting™ brightness
- — 3 mm outer diameter for 0.15-8 m lengths— 3.3 mm outer diameter for 12-15 m lengths
- Length: 0.15 to 15 m
規格
Overview
| Available Lengths | End-to-end: 0.15, 0.3, 1, 2, 3, 5, 8, 12, 15 m; (0.5, 1, 3.3, 6.6, 9.8, 16.4, 26.2, 39.8, 49.2 ft) |
|---|---|
| Available Colors | White |
| Pack Options | Single Unit (0.15, 0.3, 1, 2, 3, 5, 8, 12, 15 m); 10-Pack ( 0.15, 0.3, 1, 2, 3 m); 24-Pack (0.15, 0.3, 1, 2 m); 50-Pack (0.15, 0.3 m) |
| Supported Data Rate | 10G |
| Supported PoE Type | Up to PoE+++ |
| Connector | (2) Translucent booted and shielding RJ45 |
| Operating Environment | Indoor |
| Jacket Diameter | 0.15-8 m: 3 mm (0.11"); 12-15 m: 3.3 mm (0.13") |
| Jacket Material | Thermoplastic elastomer (TPE) & Braided |
| Shielding Type | UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gage | 0.15-8 m (0.5-26 ft): 34 AWG ; 12-15 m (39-49 ft): 32 AWG |
| Bend Radius | 0.15-8 m: Min. 24 mm (0.94 ''); 12-15 m: Min. 27 mm (1.06 '') |
| Flame Rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2; ISO/IEC 11801 |
| Installation Temperature | -20 to 60°C (–4 to 140°F) |
| Ambient Storage Temperature | -20 to 75°C (–4 to 167°F) |
| Ambient Operating Temperature | -20 to 60°C (–4 to 140°F) |
