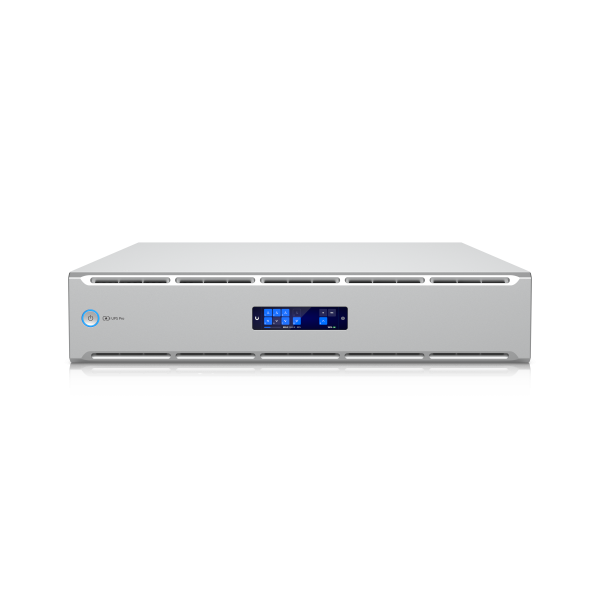

UPS-2U-Pro

UPS 2U Pro

UPS-2U-Pro 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。

UniFi-managed 1.92kVA rackmount UPS with pure sine wave output, 8 individually controllable outlets with per-port power monitoring and remote power cycling, a hot-swappable 720Wh battery, and up to 22 minutes of runtime at half load 960W. Supports Graceful Shutdown for UNVR and UNAS, and NUT compatibility for third-party devices.

Requires:

UniFi OS 5.1.25 or later
UniFi Network 10.5.67 or later
UniFi Mobile Android 10.39.3 or later
UniFi Mobile iOS 10.36.1 or later

Note. For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.

規格

Mechanical

Dimensions	442.4 x 87.4 x 630 mm; (17.4 x 3.4 x 24.8")
Weight	32 kg (70.5 lb)
Enclosure Material	Galvanized steel
Form Factor	Rack mount (2U)
Weatherproofing	IP20

Hardware

Management	Ethernet
Networking Interface	(1) 100/10 MbE port for network connection; (2) GbE ports for surge in/out
Power	(1) OVC II AC in: NEMA 5‑20P; (8) Battery backup/surge protection: NEMA 5‑20R
Capacity	1920VA/1920W
Type	Line interactive
Input Voltage Range	89–145V AC
Power Method	(1) TN system, 120V AC, 16A Max., 50/60 Hz
Nominal Input Voltage	120V AC
Output Voltage	120V AC
Nominal Output Voltage	120V AC
Frequency Range	AC mode: 50/60 Hz ±5 Hz (Auto sensing); Battery mode: 60 Hz ±1 Hz
AC Voltage Regulation	±1.5% (Battery mode)
Transfer Time	6 ms typical; 10 ms max. (Battery mode)
Wave Form	Pure sine wave (Battery mode)
Battery Type	(1) Lead Acid 72V, 10Ah
Runtime	Full load: 9 min; Half load: 22 min
Battery Charging Time	8 hours recovery to 90% capacity
Overload at On-Line Mode	103–120% 5 min go to fault; 120–150% 10 sec go to fault; 150% 1 sec go to fault
Overload at Battery Mode	103–120% 1 min go to fault; 120–150% 10 sec go to fault; 150% 0.5 sec go to fault
Short Circuit Protection at On-Line Mode	Breaker, 250V AC, 20A
Display	3.7” touchscreen
Buttons	(1) Power; (1) Factory reset; (1) Circuit breaker
Status	Off: device not turned on; Flashing white: initializing / factory default; Steady white: waiting for adoption; Steady blue: device adoption and working; Flashing blue: battery mode; Alternating white/blue: firmware upgrading; Rapid flashing blue: locate; Steady red: warning; Flashing red: low battery
Operating Altitude	3,000 m (1.9 mi)
Operating Environment	Pollution Degree 2
Ambient Storage Temperature	-15 to 50° C (5 to 122° F)
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	0 to 95% noncondensing
Certifications	FCC, IC, UL 1778, CSA C22.2 No. 107.3
