描述

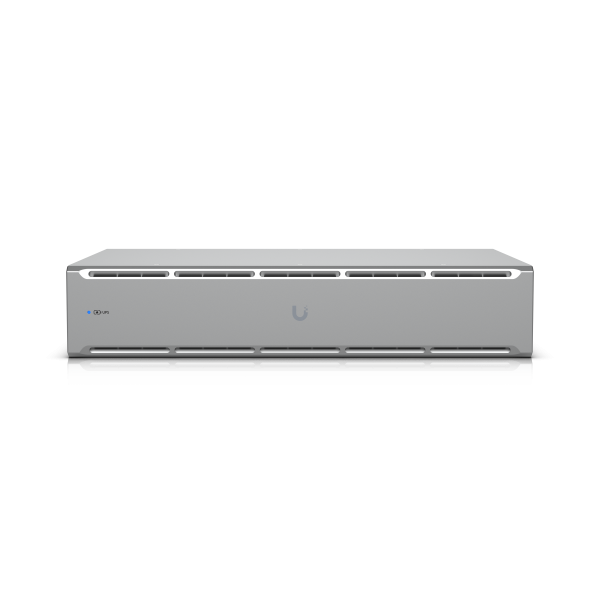

UPS-2U
UPS 2U
UPS-2U 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
UniFi managed 1.44kVA rackmount uninterruptible power supply with 4 backup outlets, 4 surge outlets, and a field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.
Note. For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.
規格
Mechanical
| Dimensions | 442.4 x 300 x 87.4 mm; (17.4 x 11.8 x 3.4") |
|---|---|
| Weight | 14 kg (30.9 lb) |
| Enclosure Material | Galvanized steel |
| Form Factor | Rack mount (2U) |
| Weatherproofing | IP20 |
Hardware
| Management | Ethernet |
|---|---|
| Networking Interface | (1) 100/10 MbE port for network connection; (2) GbE ports for surge in/out |
| Power | (1) OVC II AC in: NEMA 5‑15P, 1.8 m (5.9 ft) non-removable power cord; (4) Battery backup/surge protection: NEMA 5‑15R; (4) Surge protection: NEMA 5‑15R |
| Capacity | 1,440VA/1,000W |
| Type | Line interactive |
| Input Voltage Range | 89–145V AC |
| Power Method | (1) TN system, 120V AC, 12A Max., 50/60 Hz |
| Nominal Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Frequency Range | AC mode: 50/60 Hz ±5 Hz (Auto sensing); Battery mode: 60 Hz ±1 Hz |
| AC Voltage Regulation | ±10% (Battery mode) |
| Transfer Time | 6 ms typical; 10 ms max. (Battery mode) |
| Wave Form | Simulated sine wave (Battery mode) |
| Battery Type | (2) Lead Acid 12V, 9Ah |
| Runtime | Full load: 2.3 min; Half load: 8 min |
| Battery Charging Time | 6-8 hours recovery to 90% capacity |
| Overload at On-Line Mode | 110% 5 min go to fault; 120% go to fault immediately |
| Overload at Battery Mode | 110% shutdown in 5 sec; 120% shutdown immediately |
| Short Circuit Protection at On-Line Mode | Breaker, 250V AC, 15A |
| Output Short-Circuit Current | Ipeak 348.0A; Irms 115.1A |
| Buttons | (1) Power; (1) Factory reset |
| Status | Off: device not turned on; Flashing white: initializing / factory default; Steady white: waiting for adoption; Steady blue: device adoption and working; Flashing blue: battery mode; Alternating white/blue: firmware upgrading; Rapid flashing blue: locate; Steady red: warning; Flashing red: low battery |
| Operating Altitude | 3,000 m (1.9 mi) |
| Operating Environment | Pollution Degree 2 |
| Ambient Storage Temperature | -20 to 50° C (-4 to 122° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 0 to 95% noncondensing |
| Certifications | FCC, IC, UL 1778, CSA C22.2 No. 107.3 |
