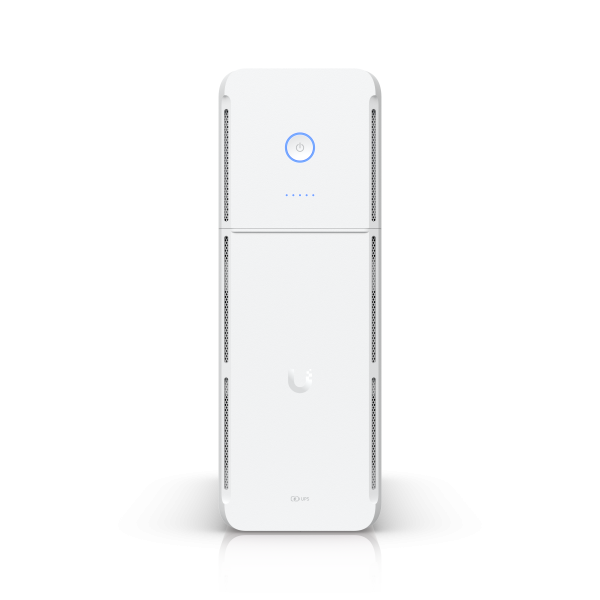

UPS-Tower
UPS Tower
UPS-Tower 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。
UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.
Note. For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.
規格
Mechanical
| Dimensions | 288 x 99 x 280.5 mm; (11.3 x 3.9 x 11") |
|---|---|
| Weight | 8.17 kg (18 lb) |
| Enclosure Material | Polycarbonate and acrylonitrile butadiene styrene blend |
| Form Factor | Desktop |
| Weatherproofing | IP20 |
Hardware
| Management | Ethernet |
|---|---|
| Networking Interface | (1) 100/10 MbE port for network connection; (2) GbE ports for surge in/out |
| Power | (1) OVC II AC in: NEMA 5‑15P, 1.8 m (5.9 ft) non-removable power cord; (5) Battery backup/surge protection: NEMA 5‑15R; (5) Surge protection: NEMA 5‑15R |
| Capacity | 1,000VA/600W |
| Type | Line interactive |
| Input Voltage Range | 89–145V AC |
| Power Method | (1) TN system, 120V AC, 12A Max., 50/60 Hz |
| Nominal Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Frequency Range | AC mode: 50/60 Hz ±5 Hz (Auto sensing); Battery mode: 60 Hz ±1 Hz |
| AC Voltage Regulation | ±10% (Battery mode) |
| Transfer Time | 6 ms typical; 10 ms max. (Battery mode) |
| Wave Form | Simulated sine wave (Battery mode) |
| Battery Type | (1) Lead Acid 12V, 9Ah |
| Runtime | Full load: 2 min; Half load: 7 min |
| Battery Charging Time | 6-8 hours recovery to 90% capacity |
| Overload at On-Line Mode | 110% 5 min go to fault; 120% go to fault immediately |
| Overload at Battery Mode | 110% shutdown in 5 sec; 120% shutdown immediately |
| Short Circuit Protection at On-Line Mode | Breaker, 250V AC, 15A |
| Output Short-Circuit Current | Ipeak 334.8A ; Irms 68.2A |
| Buttons | (1) Power; (1) Factory reset |
| Status | Off: device not turned on; Flashing white: initializing / factory default; Steady white: waiting for adoption; Steady blue: device adoption and working; Flashing blue: battery mode; Alternating white/blue: firmware upgrading; Rapid flashing blue: locate; Steady red: warning; Flashing red: low battery |
| Battery Indicator | All off: 0%; (1) Steady blue: battery 1–19%; (2) Steady blue: battery 20–39%; (3) Steady blue: battery 40–59%; (4) Steady blue: battery 60–79%; (5) Steady blue: battery 80–100% |
| Operating Altitude | 3,000 m (1.9 mi) |
| Operating Environment | Pollution Degree 2 |
| Ambient Storage Temperature | -20 to 50° C (-4 to 122° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 0 to 95% noncondensing |
| Certifications | FCC, IC, UL 1778, CSA C22.2 No. 107.3 |
