描述

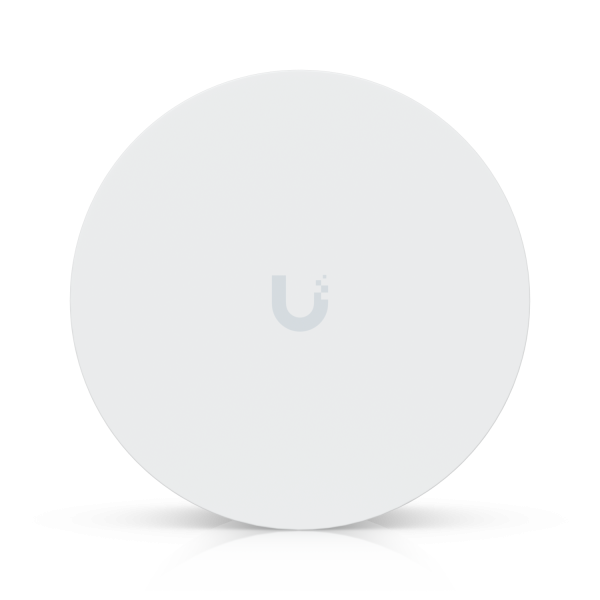

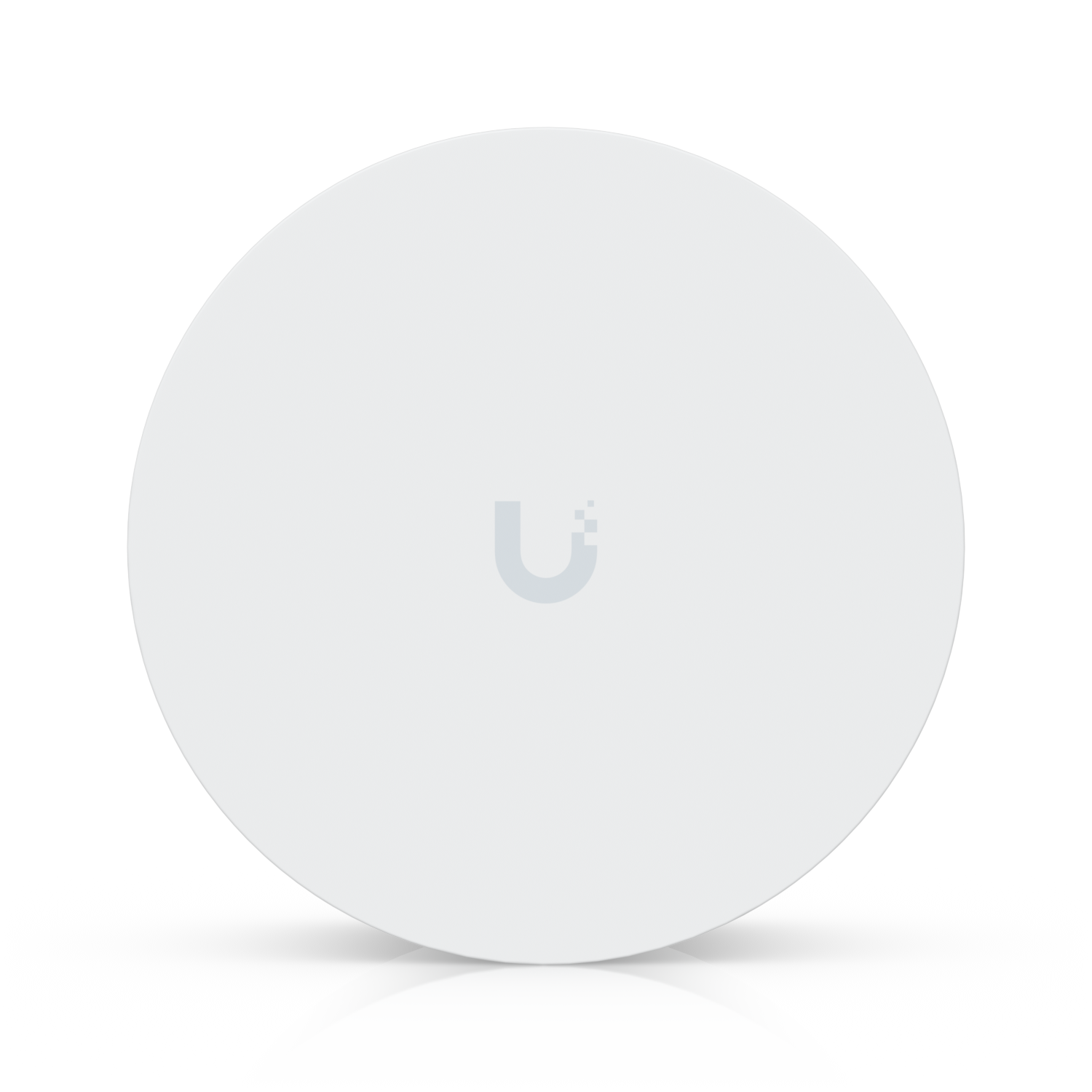

UP-AirQuality
Vape Detection & Air Quality Sensor
UP-AirQuality 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
PoE-powered sensor delivering real-time vape detection, air quality monitoring, and instant alerts for schools, workplaces, hospitality, and commercial environments.
規格
Overview
| Dimensions | ⌀93 x 40.5 mm; (⌀3.7 x 1.6") |
|---|---|
| Mounting | Wall, ceiling and table |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | (1) 10/100 MbE RJ45 port |
|---|---|
| Connectivity | Ethernet |
| Air Quality | CO2, PM1, PM2.5, PM4, PM10, VOC, NOx, AQI, Vape |
| Sampling Rate | 1 Hz |
| Temperature Sensor | 0–40° C (32–104° F) |
| Humidity Sensor | 0–90% RH |
| Air Quality | 0–500 |
| CO2 Sensor | 0–40,000 ppm |
| PM1/PM2.5/PM4/PM10 | 0–1000 μg/m³ |
| VOC Index | 1–500 |
| Vape Index | 0–100 |
| NOx Index | 1–500 |
| PM1/PM2.5 | 0–100: ±(5 µg/m³ + 5% m.v.); 100–1000: ±10% m.v. |
| PM4/PM10 | 0–100: ±25 µg/m³; 100–1000: ±25% m.v. |
| VOC | ±5% |
| CO2 | 400–2000: ±(50 ppm + 3% of reading); 2000–5000: ±(50 ppm + 5% of reading) |
| Temperature | ±1° C (1.8° F) |
| Relative Humidity | ±8% RH |
Hardware
| Max. Power Consumption | 2.2W |
|---|---|
| Supported Voltage Range | 37–57V |
| Power Method | PoE |
| Weight | 190 g (6.7 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Aluminum alloy, stainless steel |
| LEDs | (1) Status: White/Blue; (1) Air quality indicator: Red/Green/Yellow/Violet |
| Operating Environment | Indoor use only |
| Ambient Operating Temperature | Recommended 10 to 35° C (50 to 95° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Software
| Web Application | UniFi Protect: Version 7.1 or later. |
|---|---|
| Mobile App | UniFi Protect iOS™: Version 3.6.0 or later. ; Android™: Version 3.5.0 or later. |
