描述
WM-W
WiFiMan Wizard
WM-W 屬Ubiquiti UniFi網絡傳輸產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考網絡工程。規格以原廠資料為準。

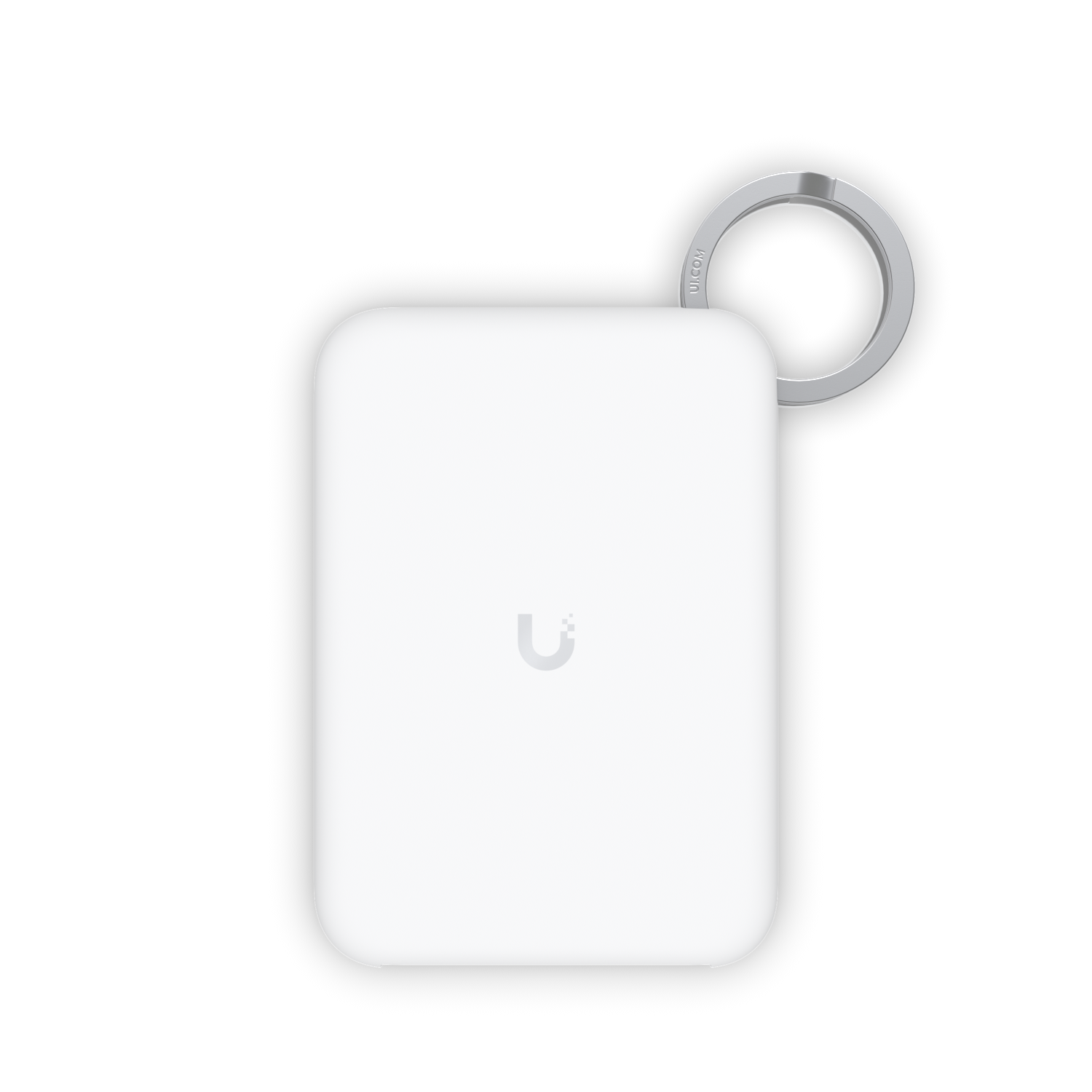

A portable spectrum analyzer designed for the WiFiMan iOS and Android mobile app.
功能重點
- 2.4 GHz and 5 GHz unlicensed band scanning
- 240 minutes continuous scanning battery life
- BLE smartphone pairing with USB-C charging port
- iPhone Magsafe attachable support*
- *A mag-safe case is required to attach this device to an iPhone.
規格
Mechanical
| Dimensions | 78.5 x 50.5 x 7.9 mm; (3.1 x 2 x 0.3") |
|---|---|
| Weight | 32 g (1.1 oz) |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IP55 |
Hardware
| Power Method | Li-ion battery |
|---|---|
| Power Supply | Rechargeable Li-ion battery, 3.7V DC, 300mAh |
| Supported Voltage Range | USB-C: 5V DC/1A |
| Max. Power Consumption | 32.4mW |
| Frequency Range | 2.4 to 2.5 GHz; 5.15 to 5.85 GHz |
| Amplitude Range | -96 dBm to 0 dBm |
| Amplitude Resolution | 1 dBm |
| LEDs | W/B/R |
| Buttons | (1) Power; (1) Factory reset |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 10051-23-08356 |
Software
| Mobile App | UniFi WiFiman iOS™: Version 0.18.0 and later; UniFi WiFiman Android™: Version 1.15.0 and later |
|---|
