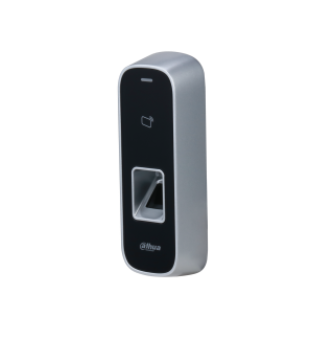

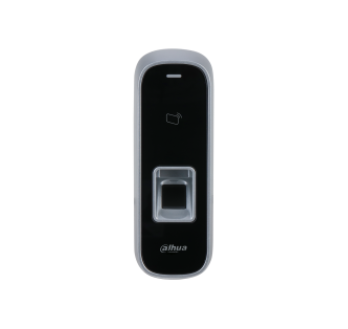

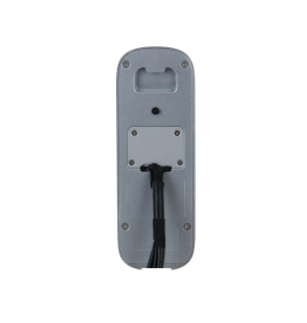

Dahua ASI1202M / ASI1202M-D Access Controller


Access Controller

> Material: Zinc alloy plate

> Support card unlock, fingerprint unlock, and card&fingerprint unlock

> Card reading frequency is 13.56MHZ; card reading distance is 1cm–3cm

> Support both RS-485 protocol and Wiegand protocol

> IP65, IK10

> Fingerprint Capacity: 3, 000

> Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and illegal card exceeding time alarm

> Support guest card, patrol card, VIP card, general user card, and card for the disabled

Main Processor Embedded processor
Network Protocol IPv4; TCP
OSDP Protocol Yes
SDK and API Yes
Appearance All-in-one
Buzzer Yes
Casing Zinc alloy
Unlock Mode Fingerprint/Card unlock
Card Reading Type IC card
Period List 128
Holiday Period 128
Network Update Yes
First Card Unlock Yes
Remote Verification Yes
Blocklist/Allowlist Yes
Peripheral Card Reader 1 RS-485, 1 Wiegand
Multiple Authentication Support card/fingerprint unlock
Real-Time Surveillance Yes
Group Combination Yes
Register Yes
Card Reading Distance 1cm–3cm
Fingerprint Sensor Type Optical
Fingerprint Verification 1:N
Fingerprint Comparison Time ≤1.5s
Fingerprint Recognition Time ≤0.5s
User (Card) Type General user/VIP/patrol user/guest/blocklist user/special user
User Capacity 30,000
Fingerprint Capacity 3,000
Card Capacity 30,000
Record Capacity 150,000
RS-485 1
Wiegand 1 (input and output ports are the same)
USB 1 USB2.0 port
Network 1 RJ-45, 10Mbps/100Mbps self-adaptive
Alarm Input 1 (digital quantity)
Alarm Output 1 (relay)
Alarm Linkage Yes
Exit Button 1
Door Status Detection 1
Lock Control 1, off by default
Bolt Detection 1, relay
Anti-Passback Yes
Tamper Alarm Yes
Duress Alarm Yes
Door Sensor Timeout Yes
Intrusion Yes
Illegal Card Exceeding Threshold Yes
Duress Fingerprint Yes
Power Adapter Optional
Power Supply 12V DC 1A
Protection Grade IP65 (Apply silica gel to gaps, for details, see the quick start guide.)
Power Consumption ≤1.8W (standby), ≤3W (working)
Product Dimensions 54.8mm×159.2mm×35.0mm (2.16″×6.27″×1.38″)
Box Dimensions 206mm×106mm×97mm (8.11″”×4.17″”×3.82″”) (Product box)
553mm×428mm×220mm (21.77″”×16.85″”×8.66″”) (Protective box)
Operating Temperature -30°C to +50°C (-22°F to +122°F)
Operating Humidity 5%RH–95%RH (non-condensing)
Operating Altitude 0m–1300m (0ft–4265.09ft)
Operating Environment Outdoor
Net weight 0.7kg (1.54lb)
Gross Weight 0.79kg (1.74lb)
Accessory Bracket
Installation Surface mount
Certifications CE
