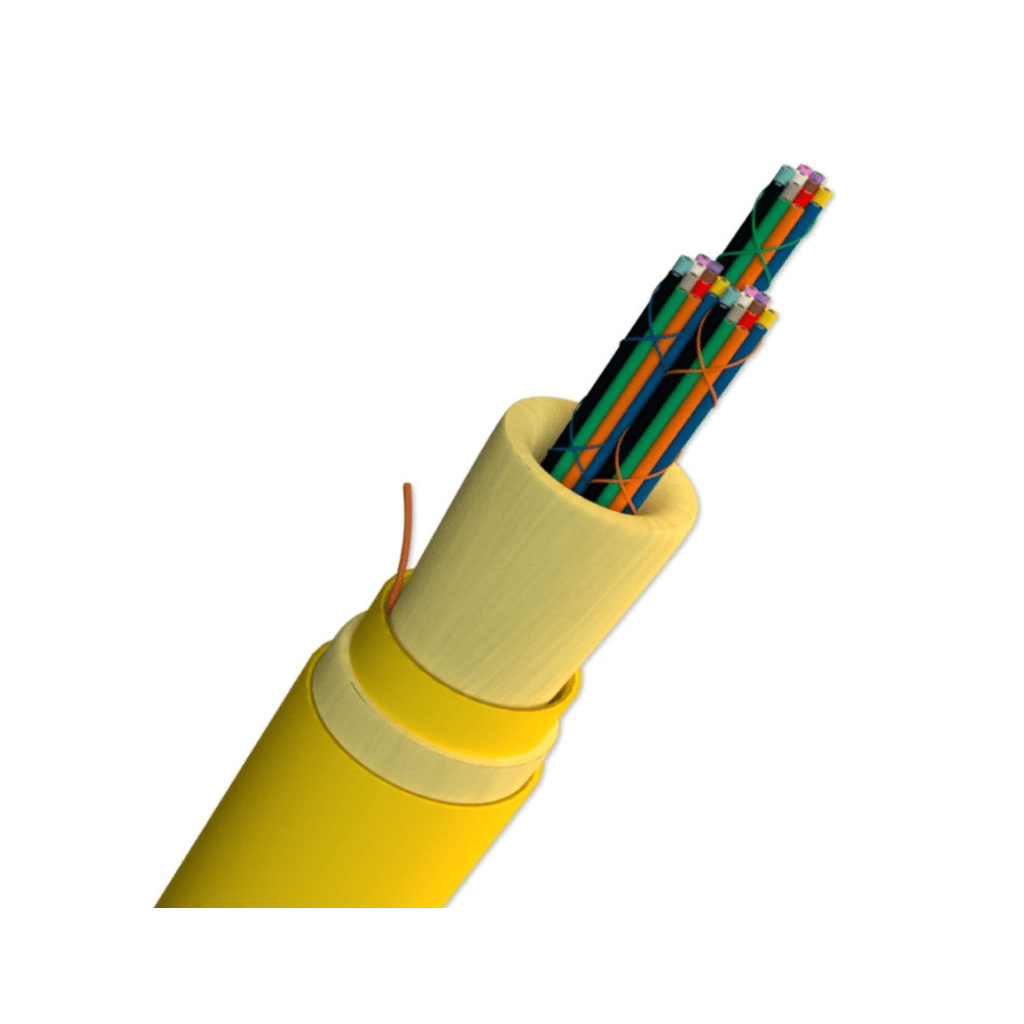

AFL Ruggedized MicroCore® Cable (CPR)
Features
- Available with 250 µm bare fiber or SpiderWeb Ribbon (SWR) optical fiber technology
- Fiber counts 12 to 72
- LSZH Riser flame-rated jacket
- All aramid tensile strength members around core cable for ease of attaching pulling-eye; aramid within core for use with MT termination
- Installation tension rating of 150 lbs
Applications
- Headend termination to a fiber “backbone”
- Termination of fiber rack systems
- Intra-building “backbones”
- MTP/MPO or MTP to breakout terminations
Temperature Specifications
| Temperature Range | ||
| Plenum | LSZH | |
| Installation | 0°C to +60°C | 0°C to +60°C |
| Operation | 0°C to +70°C | -20°C to +70°C |
| Storage | -40°C to +70°C | -40°C to +70°C |
