描述

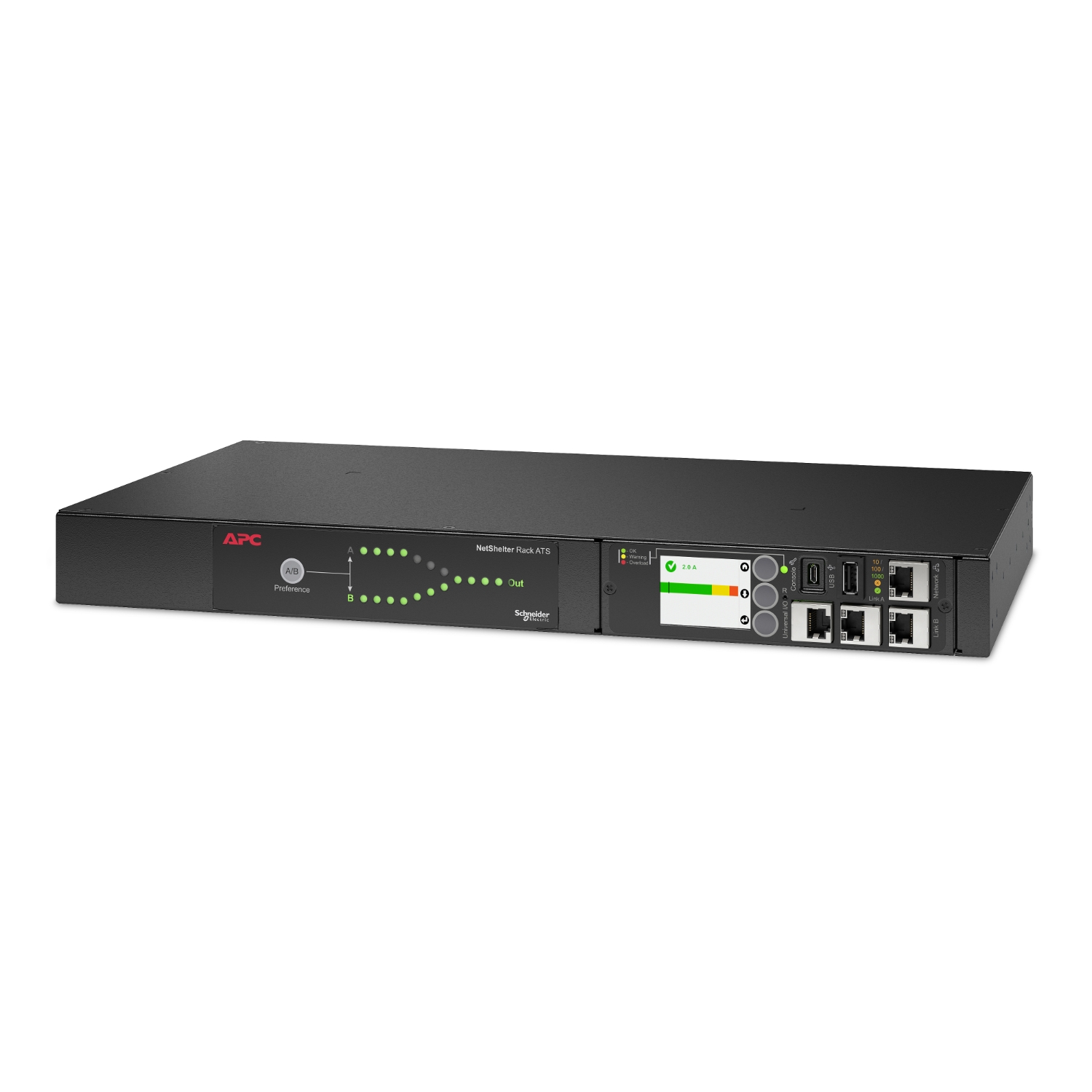

AP4423A

NetShelter Rack Automatic Transfer Switch, 1U, 16A, 230V

AP4423A 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。

產品說明

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4423A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4423A is single phase 1U Rack ATS with 16A rated current, 23V rated voltage and 37VA load capacity. It comes with 2 IEC C2 inlet and 8 IEC C13, 1 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

規格

主要規格

Product or component type	Automatic transfer switch
Main Input Voltage	230 V AC 1 phase
Input current limits	20 A
Network frequency	50/60 Hz
Main Output Voltage	230 V AC 1 phase
Input Connection Type	IEC 60320 C20 16 A 2P + E
Load capacity	3700 VA
[In] rated current	16 A
permissible voltage	207…253 V
Max line current	20 A
Protection type	Without circuit breaker
Number of rack unit	1U
Power cable length	2.44 m
Provided equipment	Mounting hardware; Rack mounting brackets
