描述
BR900GI

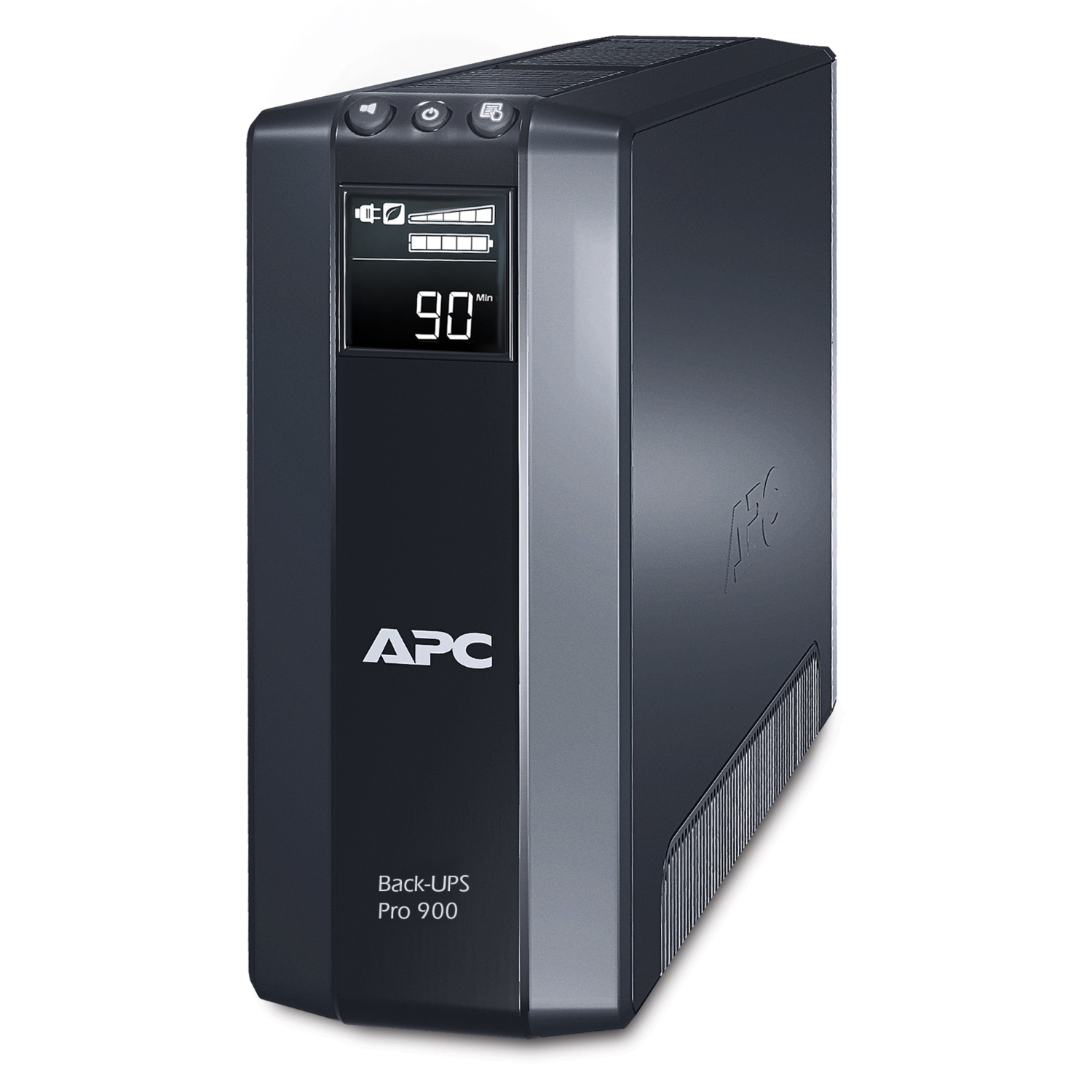

Power-Saving Back-UPS Pro 900, 900VA, 230V
BR900GI 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
規格
主要規格
| Main input voltage | 230 V |
|---|---|
| Maximum input current | 8 A |
| Switching current capacity | 10 A |
| Efficiency at full load | 156…300 V adjustable; 176…294 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Rated power in W | 540 W |
| Rated power in VA | 900 VA |
| Output connection | 4 IEC 60320 C13; 4 IEC 60320 C13 surge; 2 IEC Jumpers |
| Bypass type | Built-in bypass |
| Crest factor | 3 : 1 |
| Maximum configurable power in VA | 900 VA |
| Maximum configurable power in W | 540 W |
| Transfer time | 8 ms typical : 10 ms maximum |
| UPS topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains; 50/60 Hz +/- 1 Hz unsynchronised |
| Replacement battery | APCRBC123 |
補充規格
| Battery capacity | 7.0 Ah |
|---|---|
| Control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rating | 613 J |
| Noise filtering | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
| Number of cables | 1 |
| Color | Black |
| Height | 25 cm |
| Width | 10 cm |
| Depth | 38.2 cm |
| Product weight | 10.72 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Back-UPS Pro |
使用環境
| Product certification | A-Tick; C-Tick; CE |
|---|---|
| Equipment protection policy | Lifetime : 200000 AUD; Lifetime : 150000 euros; Lifetime : 75000 GBP |
| Marking | GS Mark |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…14999.8 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 45 dBA |
| Operating altitude | 0…9842 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 24 V |
| Battery graph comment | This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v |
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 8 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 20 W rated |
