AR106SH6

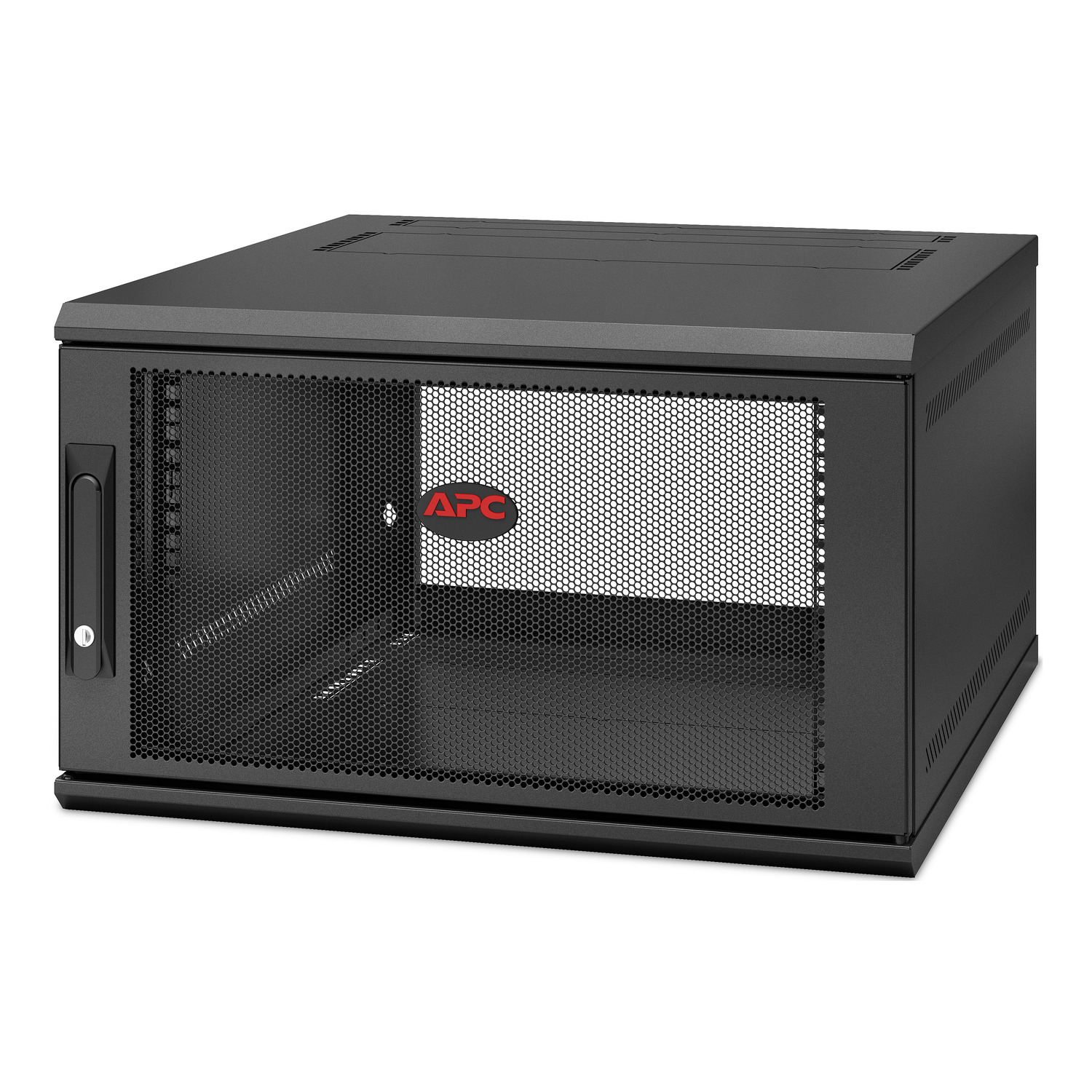

NetShelter 6U Wallmount Rack Enclosure Cabinet Single Hinged Server Depth
AR106SH6 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Ideal for retail, healthcare, and educational facilities, this wall mount rack offers an efficient solution for deploying server and networking equipment for edge computing applications. This rack enclosure is wall mountable, ideal for areas with limited floor space, and is designed specifically for servers and network switches and patch panels. The cabinet's door is reversible and is compatible with APC's Netbotz security upgrade to provide remote access, video surveillance, and environmental monitoring (sold separately). Optional 120V fan tray can be top or bottom mounted (sold separately) Both the top and bottom feature knockouts of 1/2U mounting space for accessories. And several APC Smart-UPS models low-profile provide easy UPS integration and mounting 6U Wall mount cabinet, mounting depth range of 2.87 to 20.8 inches, 200lb weight capacity, 19"" rack width, ships fully assembled, ventilated with accessory integration options, 5 year APC warranty
規格
主要規格
| Product or component type | Rack enclosure |
|---|---|
| Number of rack unit | 6U |
| Rack width | 19" |
| Permanent permissible load | 90.7 kg static |
補充規格
| Mounting mode | Not rack-mountable |
|---|---|
| Mounting support | Wall |
| Minimum mounting depth | 72.9 mm |
| Maximum mounting depth | 528.3 mm |
| Colour | Black |
| Height | 355 mm |
| Width | 600 mm |
| Depth | 600 mm |
| Net weight | 14.38 kg |
