描述
AR106VI

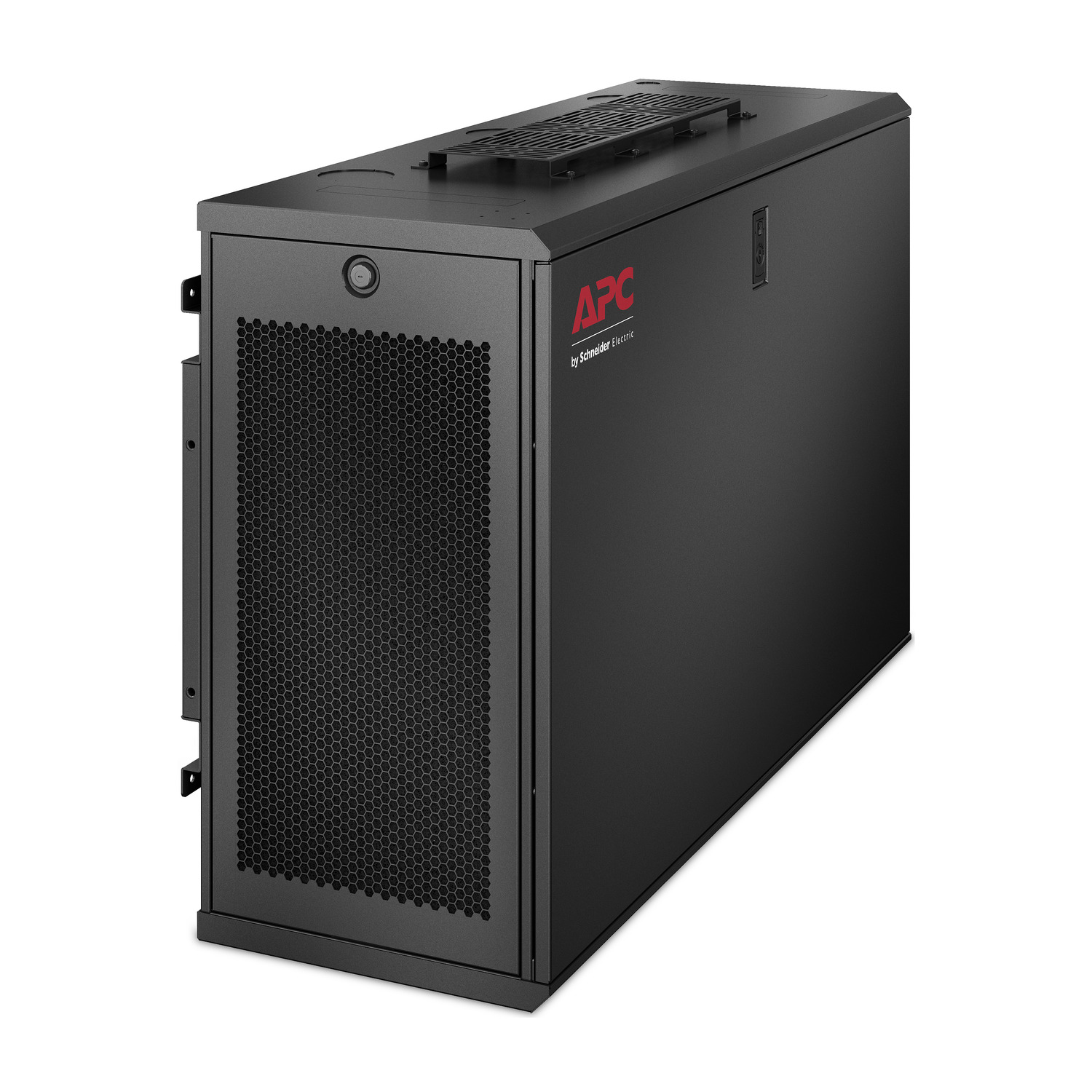

NetShelter 6U Low-Profile Wallmount Rack Enclosure Cabinet 230V Server Depth
AR106VI 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
APC By Schneider Electric 6U Wall Mount is an innovative new way to deploy server and networking equipment at the Edge Ideal for retail, healthcare, educational facilities and light industrial spaces, the low-profile design offers an efficient solution for deploying hyperconverged server and networking applications. The rack enclosure allows longer depth equipment to be wall mounted, up to 762 millimeters deep. A detachable wall bracket and optional casters (sold separately) allow the server rack to be mounted on either the wall or stand alone on the floor. A dust filter and two integrated fans allow deployment in light-industrial environments. APC Smart-UPS, APC NetBotz Physical and Environmental Security, and APC EcoStruxure IT can be configured with this cabinet to stay connected at the Edge. 6U vertical wall-mount cabinet, 76.2 cm mounting depth, 113 kg weight capacity, 48.2cm rack width, side panels for access to equipment, ships fully assembled, G3 dust filter and 230V integrated fans included. Input connector IEC 60320 C13 with 500VA – 1.5kVA output power capacity.
規格
主要規格
| Product or component type | Rack enclosure |
|---|---|
| Number of rack unit | 6U |
| Rack width | 19" |
| Permanent permissible load | 113.4 kg dynamic; 113.4 kg static |
補充規格
| Mounting mode | Not rack-mountable |
|---|---|
| Mounting support | Wall |
| Minimum mounting depth | 762 mm |
| Maximum mounting depth | 762 mm |
| Colour | Black |
| Height | 648 mm |
| Width | 353 mm |
| Depth | 968 mm |
| Net weight | 36.29 kg |
