描述
AR203A

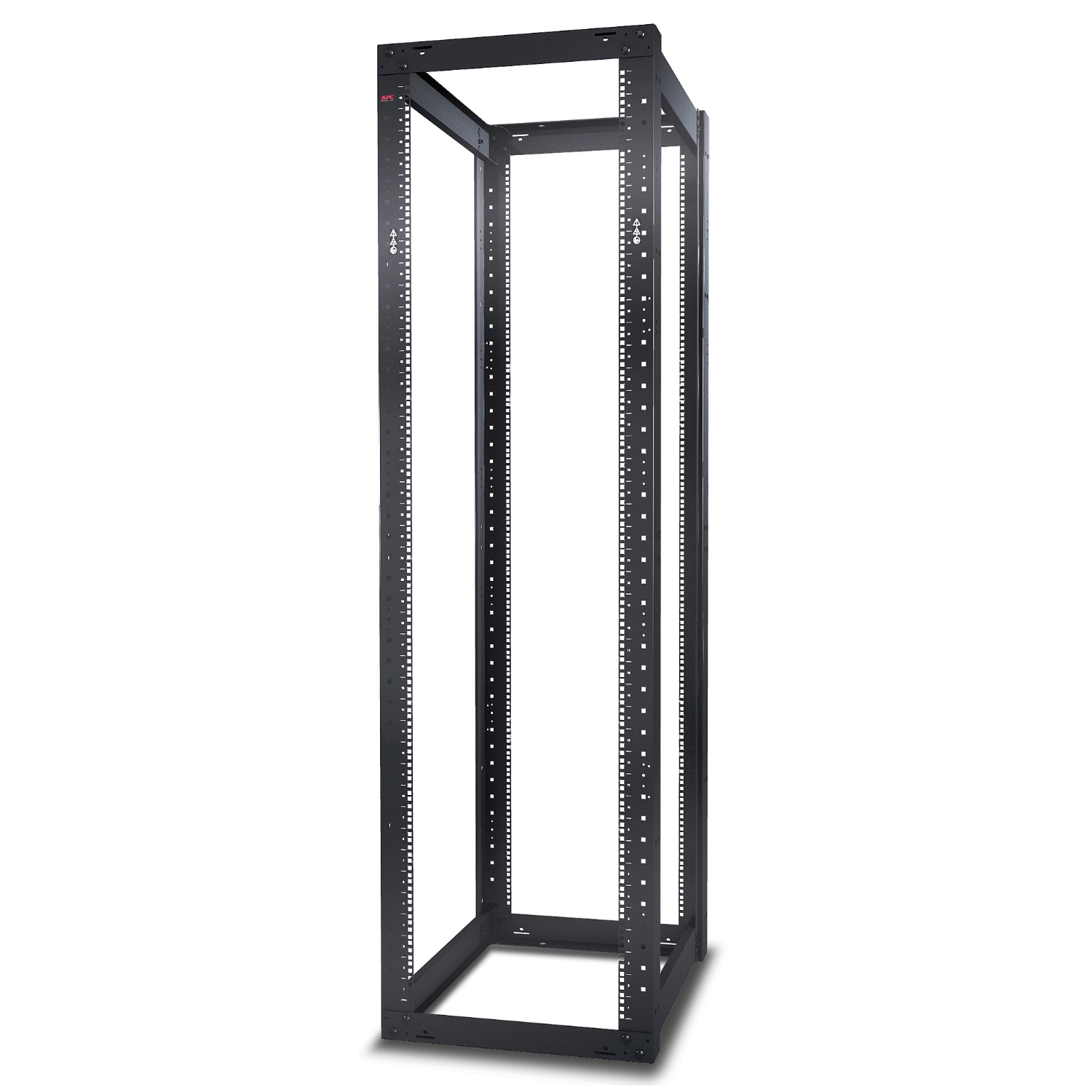

NetShelter 4 Post Open Frame Rack 44U Square Holes
AR203A 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
APC NetShelter Open Frame offers a high-quality four-post rack for storage of industry-standard (EIA-310). Mount 19-in rack-mount hardware, which includes servers and voice, data, networking, internetworking, and APC power-protection equipment. Rack has a static load of 907 kb (2000lb) and a max equipment depth of 747 mm. The 4 post design includes square 9.5 mm holes.
規格
主要規格
| Product or component type | Frame |
|---|---|
| Number of rack unit | 44U |
| Rack width | 19" |
| Permanent permissible load | 907.2 kg static |
| Provided equipment | Installation guide |
補充規格
| Mounting location | Front; Rear |
|---|---|
| Mounting mode | Not rack-mountable |
| Minimum mounting depth | 739.9 mm |
| Maximum mounting depth | 739.9 mm |
| Colour | Black |
| Height | 2130 mm |
| Width | 600 mm |
| Depth | 747 mm |
| Net weight | 40.41 kg |
