描述

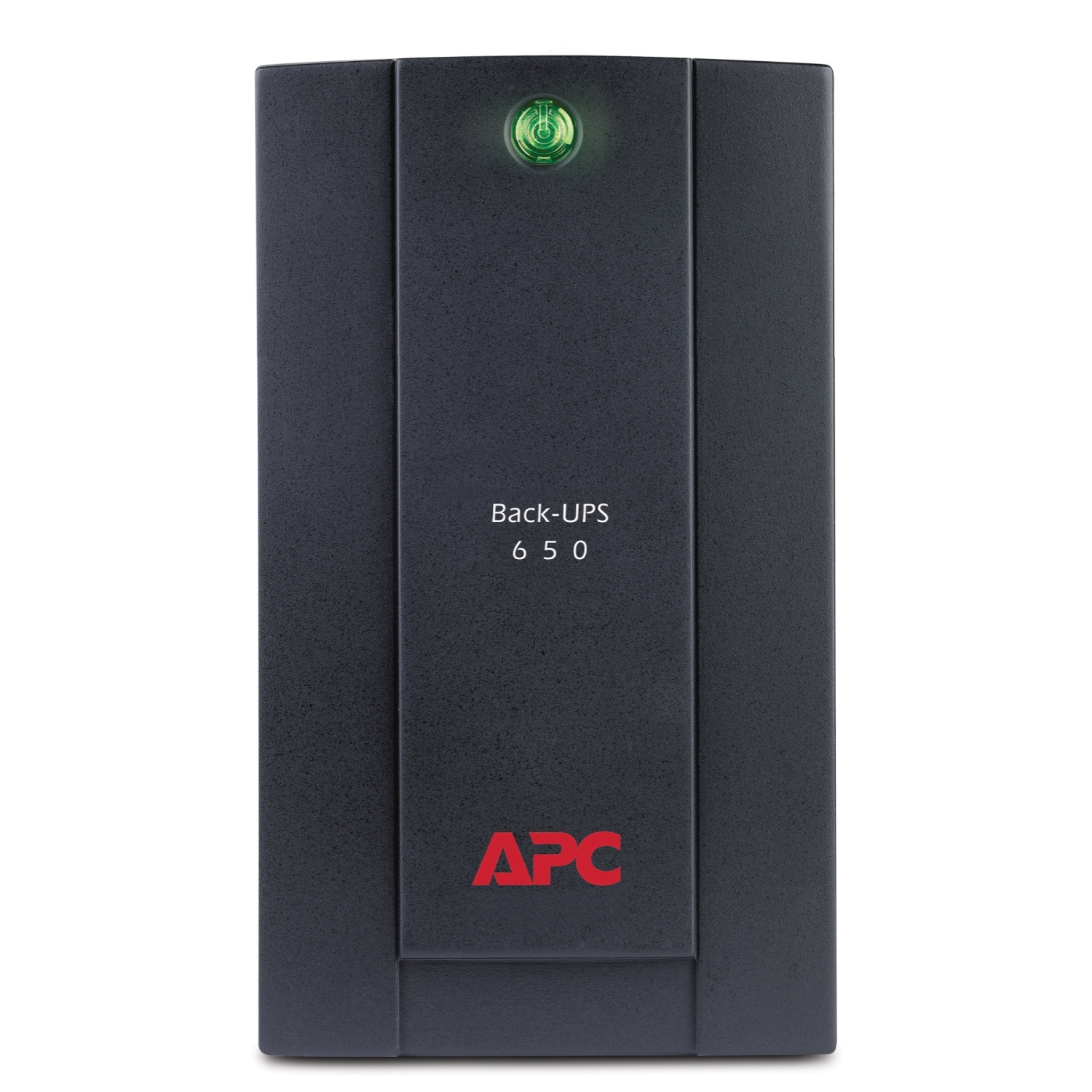

BX650CI

Back-UPS 650VA, 230V

BX650CI 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。

Main input voltage	230 V
Maximum input current	7 A
Switching current capacity	7 A
Efficiency at full load	140…300 V
Input frequency	45…65 Hz
Rated power in W	390 W
Rated power in VA	650 VA
Output connection	4 IEC 60320 C13; 1 IEC Jumpers
Maximum configurable power in VA	650 VA
Maximum configurable power in W	390 W
Transfer time	6 ms typical : 10 ms maximum
UPS topology	Line interactive
Waveform type	Stepped approximation to a sinewave
Output frequency	50/60 Hz +/- 3 Hz sync to mains; 50/60 Hz +/- 1 Hz unsynchronised

Control panel	LED status display with on line : on battery : replace battery and overload indicators
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rating	273 J
Cable length	1.16 m
Height	20 cm
Width	11.5 cm
Depth	25.7 cm
Product weight	6.2 kg
Mounting support	Desktop
Mounting preference	No preference
Mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	No
Number of power module filled slots	0
Number of power module free slots	0
Additional specification	Entry level
Redundant	No
Range of product	Back-UPS
Product or component type	Uninterruptible power supply (UPS)

Product certification	CE; GOST; NEMKO
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0…9144 m
Relative humidity	0…95 %
Acoustic level	45 dBA
Operating altitude	0…10000 ft
