描述

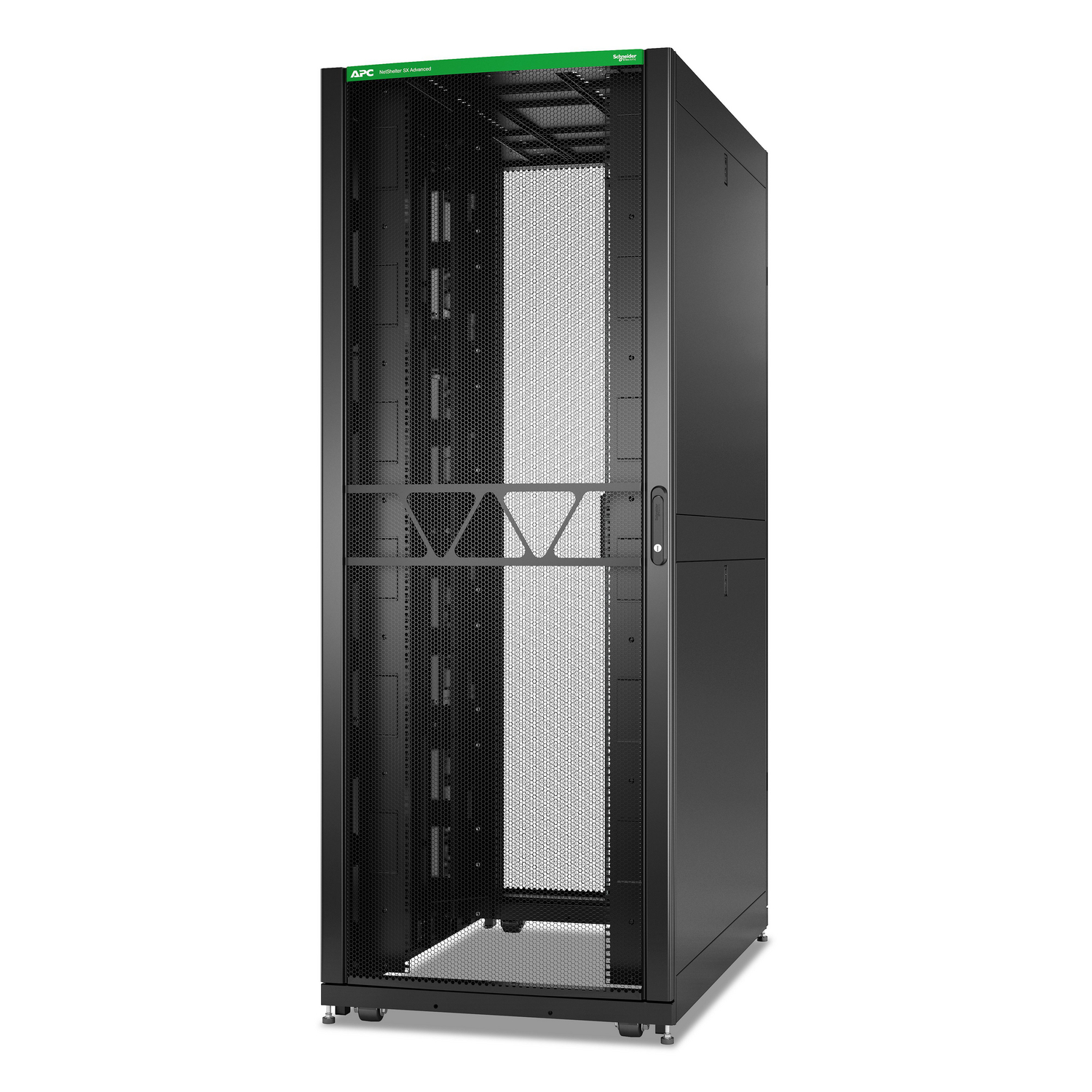

AR9585B2
NetShelter SX Advanced Rack, High Strength, 45U 800mm 1295mm, without shock package
AR9585B2 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
The APC NetShelter SX advanced high strength Rack is tailor made for high density AI infrastructure including liquid cooling components. It features maximized space with 45U height, 800mm width and 1295mm depth and offers guaranteed compatibility with any EIA 310 E compliant IT equipment. It offers higher weight loading capacity, ensuring increased revenue within a limited footprint, with a static load of 4250lb and a dynamic load of 3500lb. This offers higher safety and reduced risk of downtime with upto 80% air perforation and flexibility to choose from Air or Liquid cooling. Built sustainably with all steel construction, it lasts for years and can be used for various applications. It is designed to support power loads of 70kW and extandable upto 100kW
規格
主要規格
| Product or component type | Rack enclosure |
|---|---|
| Number of rack unit | 45U |
| Rack width | 19" |
| Permanent permissible load | 1927.8 kg static; 1587.6 kg dynamic |
| Provided equipment | Baying hardware; Key(s); Leveling feet |
補充規格
| Mounting mode | Not rack-mountable |
|---|---|
| Minimum mounting depth | 292 mm |
| Maximum mounting depth | 1143 mm |
| Colour | Black |
| Marking | 12 gauge EIA mounting rail; 16 gauge front door; 16 gauge post |
| Height | 2124 mm |
| Width | 800 mm |
| Depth | 1295 mm |
| Net weight | 280 kg |
