描述

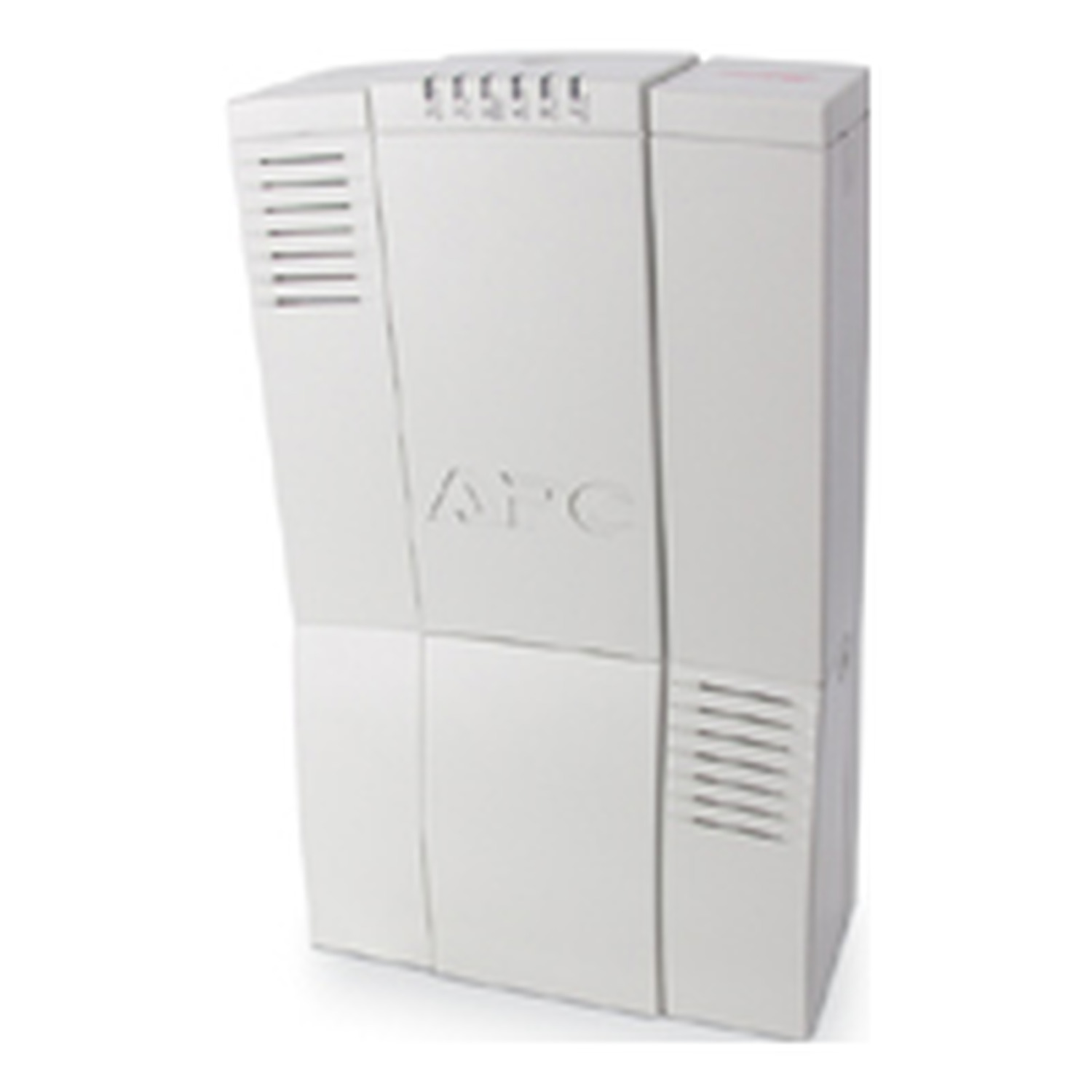

BH500INET
Back-UPS 500VA, 230V, Structured Wiring UPS, 6 IEC outlets
BH500INET 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
It provides 500VA and 300W of power and nominal output voltage of 230V. It includes six IEC C13 outlets for battery backup and surge protection. The UPS features a lead-acid battery with a recharge time of 8 hours.
規格
主要規格
| Main input voltage | 230 V |
|---|---|
| Input connection | IEC 60320 C14 |
| Maximum input current | 4 A |
| Switching current capacity | 4 A |
| Input frequency | 47…63 Hz |
| Output voltage | 230 V |
| Rated power in W | 300 W |
| Rated power in VA | 500 VA |
| Output connection | 4 IEC 60320 C13; 2 IEC 60320 |
| Maximum configurable power in VA | 500 VA |
| Maximum configurable power in W | 300 W |
| UPS topology | Standby |
| Waveform type | Stepped approximation to a sinewave |
| Output frequency | 47…63 Hz sync to mains |
補充規格
| Battery capacity | 7.0 Ah |
|---|---|
| Control panel | LED status display with on line : on battery : replace battery and building wiring fault; Network link status LED |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Data line protection | Coaxial cable for CATV/SATV/modem/audio-video |
| Surge energy rating | 600 J |
| Cable length | 2.4 m |
| Number of cables | 1 |
| Color | Beige |
| Height | 37.2 cm |
| Width | 22.5 cm |
| Depth | 10.5 cm |
| Product weight | 7.42 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Provided equipment | CD with software; User manual; Cat 6 Ethernet cable; Installation guide |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Back-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | A-Tick; C-Tick; GOST; NEMKO |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 5…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 40 dBA |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 12 V |
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 8 h |
| RBC quantity | 1 |
| Battery life | 4…6 year(s) |
| Battery charging power | 10 W rated |
