描述

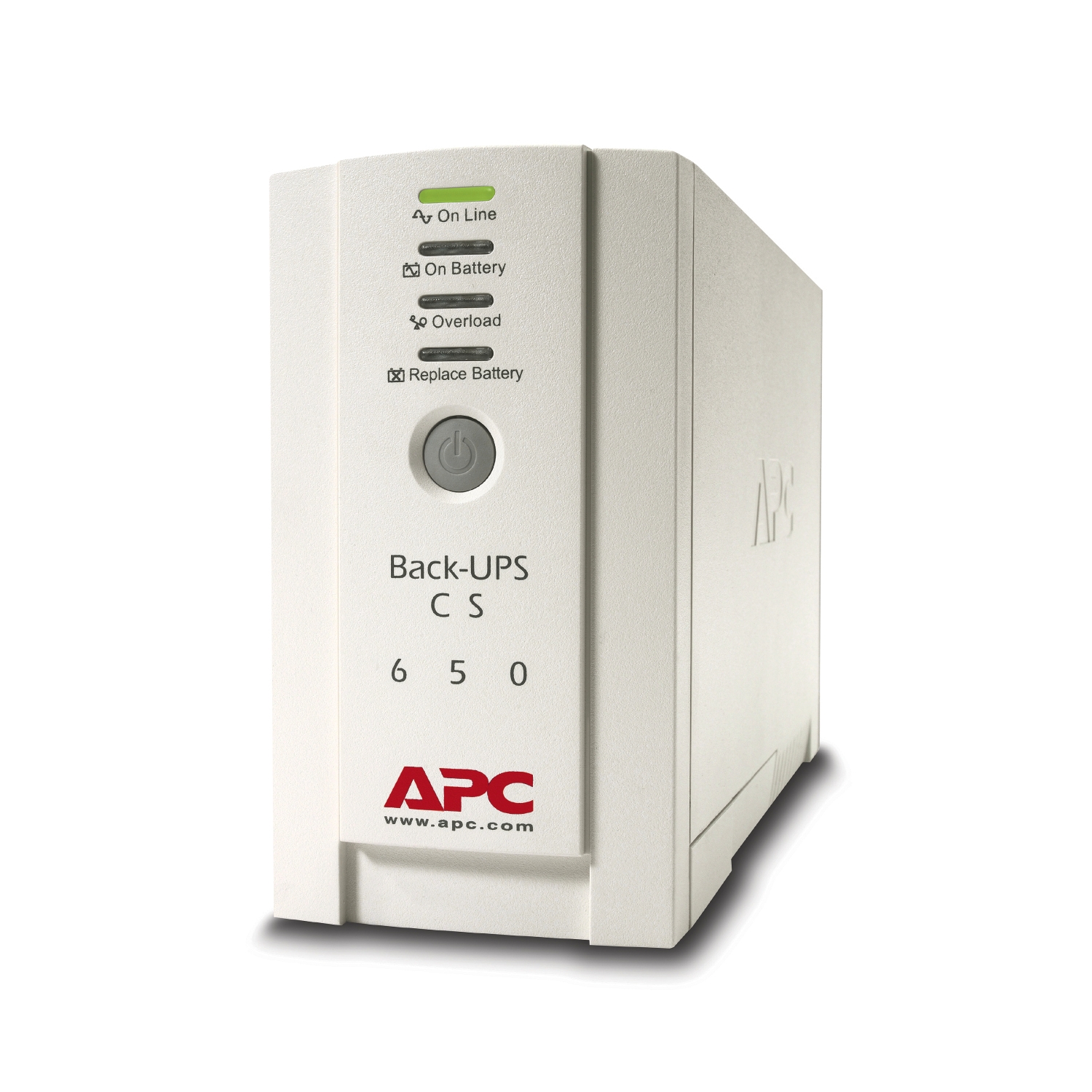

BK650EI
Back-UPS, 650VA, Tower, 230V
BK650EI 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 650VA tower UPS has 4 total outlets, 3 of which are battery backup and surge protection and one that is surge protection only. The UPS also has 2 surge IEC jumpers. The UPS has a surge energy rating of 310 Joules. It provides data line protection with a RJ45 analog phone line for phone, fax, modem or DSL. This UPS has a 2-year warranty and CE product certification.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Input connection | IEC 60320 C14 |
| Maximum input current | 7 A |
| Switching current capacity | 7 A |
| Efficiency at full load | 160…286 V adjustable; 180…266 V |
| Input frequency | 47…63 Hz; 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 400 W |
| Rated power in VA | 650 VA |
| Output connection | 3 IEC 60320 C13; 1 IEC 60320 C13 surge; 2 IEC 60320 surge |
| Type of USB power supply | None |
| Maximum configurable power in VA | 650 VA |
| Maximum configurable power in W | 400 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS topology | Standby |
| Waveform type | Stepped approximation to a sinewave |
| Output frequency | 47…63 Hz sync to mains; 50/60 Hz +/- 1 Hz unsynchronised |
| Replacement battery | RBC17 |
補充規格
| Battery capacity | 9.0 Ah |
|---|---|
| Battery type | Lead-acid internal included |
| Control panel | LED Status display with on line : on battery |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | USB port |
| Surge energy rating | 310 J |
| Number of cables | 2 |
| Color | Beige |
| Height | 165 mm |
| Width | 91 mm |
| Depth | 284 mm |
| Product weight | 6.03 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting mode | Tower |
| Provided equipment | CD with software; Documentation CD; 2 x detachable IEC C13 to IEC C14 power cords; USB cable |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Back-UPS |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | RCM; CE; GOST; NEMKO |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 5…95 % |
| Storage relative humidity | 5…95 % |
| Acoustic level | 45 dBA |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 12 V |
| Battery graph comment | This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v |
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 8 h |
| RBC quantity | 1 |
| Battery life | 4…6 year(s) |
| Battery charging power | 12 W rated |
